Hi Dave,
PFA updated patch which will fix mentioned issues.
Hopefully the last one :-)
--
Regards,
Murtuza Zabuawala
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company
On Wed, Apr 13, 2016 at 6:18 PM, Dave Page <[email protected]> wrote:
> Hi
>
> I'm seeing some more issues now, some related to new functionality:
>
> - Please don't include the descriptive header for shell types in
> create.sql.
>
Done
>
> - Shell types can (and should) have owner/comments set if specified.
>
> Done
> - The Type dropdown should just say "Shell" for shell types (no
> additional text).
>
> Done
> - Privileges and labels grids should be disabled for shell types.
>
> Done
> - When I select External type, I see the following error (and a 500
> error in the browser console):
>
> 2016-04-13 13:44:49,953: ERROR pgadmin: Failed to execute query
> (execute_2darray) for the server #1 - DB:pem (Query-id: 4020898):
> Error Message:ERROR: syntax error at or near "and"
> LINE 2: CASE WHEN length(nspname) > 0 AND and length(nspname) !=...
>
> Done

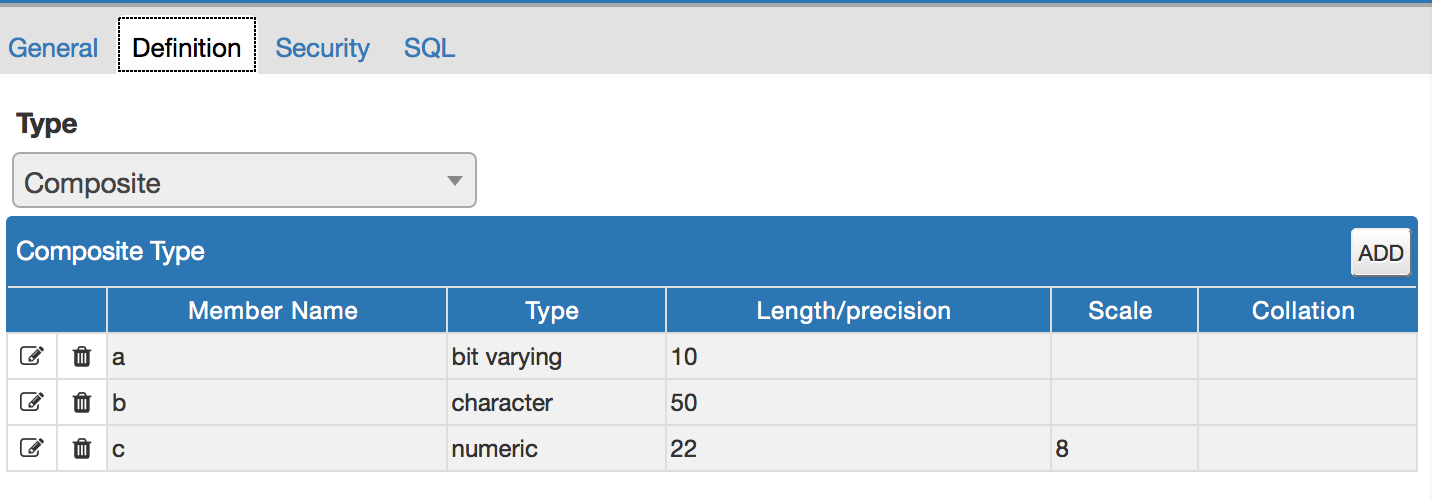

> - Length/Precision and scale are not shown in the dialogue for existing
> types.
>
> Done (PFA screenshot)
> Thanks.
>
>
> On Fri, Apr 8, 2016 at 2:52 PM, Murtuza Zabuawala
> <[email protected]> wrote:
> > Hi Dave,
> >
> > Please find updated patches to fix all the mentioned issues.
> >
> > There are three patches,
> > 1) One for fixing rendering issue when selecting type
> > 2) Added utility function to fetch full type name with length & precision
> > 3) Added new Shell type for External types.
> >
> >
> > Regards,
> > Murtuza
> >
> >
> > --
> > Regards,
> > Murtuza Zabuawala
> > EnterpriseDB: http://www.enterprisedb.com
> > The Enterprise PostgreSQL Company
> >
> > On Thu, Apr 7, 2016 at 5:06 PM, Dave Page <[email protected]> wrote:
> >>
> >> Hi Murtuza
> >>
> >> On Tue, Mar 22, 2016 at 9:22 AM, Dave Page <[email protected]> wrote:
> >> > Hi
> >> >
> >> > On Tue, Mar 22, 2016 at 8:14 AM, Murtuza Zabuawala
> >> > <[email protected]> wrote:
> >> >> Hi Dave,
> >> >>
> >> >> We can create new external type using below method, By running all of
> >> >> below
> >> >> queries at the same time , we can not create separate external type
> by
> >> >> only
> >> >> using create type statement.
> >> >>
> >> >> So as per my discussion with Ashesh, We should not allow user to
> create
> >> >> external type in pgAdmin4 but only show definition in edit mode.
> >> >
> >> > Hmm, would it not make sense to allow the user to create the shell
> >> > type as well (perhaps, with a new type of "SHELL")? Then they could do
> >> > what is needed (and that should be easy, as it's just CREATE TYPE
> >> > foo;)
> >> >
> >> > For example:
> >> >
> >> > CREATE TYPE box;
> >> >
> >> > CREATE FUNCTION my_box_in_function(cstring) RETURNS box AS ... ;
> >> > CREATE FUNCTION my_box_out_function(box) RETURNS cstring AS ... ;
> >> >
> >> > CREATE TYPE box (
> >> > INTERNALLENGTH = 16,
> >> > INPUT = my_box_in_function,
> >> > OUTPUT = my_box_out_function
> >> > );
> >> >
> >> > CREATE TABLE myboxes (
> >> > id integer,
> >> > description box
> >> > );
> >>
> >> In the interests of making progress, I've committed the most recent
> >> patch, with a number of minor changes most significantly, the Postgres
> >> docs and system catalogs seem to have different ideas about what to
> >> call length, precision and scale. pgAdmin 3 followed the catalogs and
> >> used length and precision, however I've updated pgAdmin 4 to use
> >> "Length/precision" and "Scale" which is inline with the Postgres docs.
> >> That's only in the UI though - the code follows the catalogs.
> >>
> >> There are still a couple of issues - please provide fixes ASAP:
> >>
> >> 1) If you create a composite type that contains a sized type (e.g.
> >> numeric(5, 4), the precision and scale are not shown if you later open
> >> the properties dialogue, or in the reverse engineered SQL.
> >>
> >> E.g. what pgAdmin3 shows as:
> >>
> >> CREATE TYPE pem.blergh AS
> >> (c1 text COLLATE pg_catalog."C",
> >> c2 numeric(5));
> >>
> >> Is shown by pgAdmin4 as:
> >>
> >> CREATE TYPE pem.blergh AS
> >> (c1 text COLLATE pg_catalog."C", c2 numeric);
> >>
> >> (adding the \n's would be good too).
> >>
> >> 2) If you select a different type of type in create mode, the new
> >> options are shown below those for the previously selected type,
> >> instead of replacing them. Please see the attached screenshot.
> >>
> >> 3) I would still like us to support External types. I believe the
> >> simple option here is to re-add the code you had previously, and to
> >> add a new type of type called "SHELL" as discussed in my previous
> >> email above. The user would then be able to create a SHELL type, add
> >> the required functions, then come back and create the EXTERNAL type.
> >>
> >> I'll add cards to our internal kanban chart for these issues.
> >>
> >> Thanks.
> >>
> >> --
> >> Dave Page
> >> Blog: http://pgsnake.blogspot.com
> >> Twitter: @pgsnake
> >>
> >> EnterpriseDB UK: http://www.enterprisedb.com
> >> The Enterprise PostgreSQL Company
> >
> >
>
>
>
> --
> Dave Page
> Blog: http://pgsnake.blogspot.com
> Twitter: @pgsnake
>
> EnterpriseDB UK: http://www.enterprisedb.com
> The Enterprise PostgreSQL Company
>
--
Sent via pgadmin-hackers mailing list ([email protected])
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgadmin-hackers
Attachments:
[application/octet-stream] updates_type_node_v6.patch (14.9K, 3-updates_type_node_v6.patch)
download | inline diff:
diff --git a/web/pgadmin/browser/server_groups/servers/databases/schemas/types/__init__.py b/web/pgadmin/browser/server_groups/servers/databases/schemas/types/__init__.py
index 6a46bb0..8c6b157 100644
--- a/web/pgadmin/browser/server_groups/servers/databases/schemas/types/__init__.py
+++ b/web/pgadmin/browser/server_groups/servers/databases/schemas/types/__init__.py
@@ -16,7 +16,7 @@ from pgadmin.utils.ajax import make_json_response, \
make_response as ajax_response, internal_server_error
from pgadmin.browser.utils import PGChildNodeView
from pgadmin.browser.server_groups.servers.databases.schemas.utils \
- import SchemaChildModule
+ import SchemaChildModule, DataTypeReader
import pgadmin.browser.server_groups.servers.databases as database
from pgadmin.browser.server_groups.servers.utils import parse_priv_from_db, \
parse_priv_to_db
@@ -87,7 +87,7 @@ class TypeModule(SchemaChildModule):
blueprint = TypeModule(__name__)
-class TypeView(PGChildNodeView):
+class TypeView(PGChildNodeView, DataTypeReader):
"""
This class is responsible for generating routes for Type node
@@ -335,7 +335,13 @@ class TypeView(PGChildNodeView):
composite_lst = []
for row in rset['rows']:
- typelist = ' '.join([row['attname'], row['typname']])
+ # We will fetch Full type name
+ fulltype = self.get_full_type(
+ row['collnspname'], row['typname'],
+ row['isdup'], row['attndims'], row['atttypmod']
+ )
+
+ typelist = ' '.join([row['attname'], fulltype])
if not row['collname'] or (row['collname'] == 'default'
and row['collnspname'] == 'pg_catalog'):
full_collate = ''
@@ -349,19 +355,28 @@ class TypeView(PGChildNodeView):
# Below logic will allow us to split length, precision from type name for grid
import re
- matchObj = re.match( r'(.*)\((.*?),(.*?)\)', row['typname'])
+ # If we have length & precision both
+ matchObj = re.search(r'(\d+),(\d+)', fulltype)
if matchObj:
- t_name = matchObj.group(1)
- t_len = matchObj.group(2)
- t_prec = matchObj.group(3)
+ t_len = matchObj.group(1)
+ t_prec = matchObj.group(2)
else:
- t_name = row['typname']
- t_len = None
- t_prec = None
+ # If we have length only
+ matchObj = re.search(r'(\d+)', fulltype)
+ if matchObj:
+ t_len = matchObj.group(1)
+ t_prec = None
+ else:
+ t_len = None
+ t_prec = None
+
+ is_tlength = True if t_len else False
+ is_precision = True if t_prec else False
composite_lst.append({
- 'attnum':row['attnum'], 'member_name': row['attname'], 'type': t_name, 'collation': full_collate,
- 'tlength': t_len, 'precision': t_prec })
+ 'attnum':row['attnum'], 'member_name': row['attname'], 'type': row['typname'], 'collation': full_collate,
+ 'tlength': t_len, 'precision': t_prec,
+ 'is_tlength': is_tlength, 'is_precision': is_precision })
# Adding both results
res['member_list'] = ', '.join(properties_list)
@@ -442,7 +457,6 @@ class TypeView(PGChildNodeView):
# it from properties sql
copy_dict['typacl'] = []
-
for row in acl['rows']:
priv = parse_priv_from_db(row)
if row['deftype'] in copy_dict:
diff --git a/web/pgadmin/browser/server_groups/servers/databases/schemas/types/templates/type/js/type.js b/web/pgadmin/browser/server_groups/servers/databases/schemas/types/templates/type/js/type.js
index 571e0d5..e0182a8 100644
--- a/web/pgadmin/browser/server_groups/servers/databases/schemas/types/templates/type/js/type.js
+++ b/web/pgadmin/browser/server_groups/servers/databases/schemas/types/templates/type/js/type.js
@@ -308,23 +308,15 @@ function($, _, S, pgAdmin, pgBrowser, alertify, Backgrid) {
group: '{{ _('Definition') }}',
mode: ['edit', 'create'],
select2: { width: "50%" },
- options: function() {
- if(!this.model.isNew()) {
+ options: function(obj) {
return [
{label: "Composite", value: "c"},
{label: "Enumeration", value: "e"},
{label: "External", value: "b"},
{label: "Range", value: "r"},
+ {label: "Shell", value: "s"}
]
- } else {
- return [
- {label: "Composite", value: "c"},
- {label: "Enumeration", value: "e"},
- {label: "Range", value: "r"},
- ]
-
- }
- },
+ },
disabled: 'inSchemaWithModelCheck',
// If create mode then by default open composite type
control: Backform.Select2Control.extend({
@@ -345,10 +337,7 @@ function($, _, S, pgAdmin, pgBrowser, alertify, Backgrid) {
canAdd: true, canEdit: true, canDelete: true, disabled: 'inSchema',
deps: ['typtype'], deps: ['typtype'],
visible: function(m) {
- if (m.get('typtype') === 'c') {
- return true;
- }
- return false;
+ return m.get('typtype') === 'c';
}
},{
id: 'enum', label: '{{ _('Enumeration Type') }}',
@@ -524,7 +513,7 @@ function($, _, S, pgAdmin, pgBrowser, alertify, Backgrid) {
},{
type: 'nested', control: 'tab', group: '{{ _('Definition') }}',
label: '{{ _('External Type') }}', deps: ['typtype'],
- mode: ['edit'],
+ mode: ['create', 'edit'],
visible: function(m) {
return m.get('typtype') === 'b';
},
@@ -731,14 +720,23 @@ function($, _, S, pgAdmin, pgBrowser, alertify, Backgrid) {
id: 'typacl', label: 'Privileges', type: 'collection',
group: '{{ _('Security') }}', control: 'unique-col-collection',
model: pgAdmin.Browser.Node.PrivilegeRoleModel.extend({privileges: ['U']}),
- mode: ['edit', 'create'], canAdd: true, canDelete: true,
- uniqueCol : ['grantee']
+ mode: ['edit', 'create'], canDelete: true,
+ uniqueCol : ['grantee'], deps: ['typtype'],
+ canAdd: function(m) {
+ // Do not allow to add when shell type is selected
+ return !(m.get('typtype') === 's');
+ }
},{
id: 'seclabels', label: '{{ _('Security Labels') }}',
model: SecurityModel, editable: false, type: 'collection',
group: '{{ _('Security') }}', mode: ['edit', 'create'],
- min_version: 90100, canAdd: true,
- canEdit: false, canDelete: true, control: 'unique-col-collection'
+ min_version: 90100, canEdit: false, canDelete: true,
+ control: 'unique-col-collection', deps: ['typtype'],
+ canAdd: function(m) {
+ // Do not allow to add when shell type is selected
+ return !(m.get('typtype') === 's');
+ }
+
}],
validate: function() {
// Validation code for required fields
diff --git a/web/pgadmin/browser/server_groups/servers/databases/schemas/types/templates/type/sql/9.1_plus/create.sql b/web/pgadmin/browser/server_groups/servers/databases/schemas/types/templates/type/sql/9.1_plus/create.sql
index bd1f8b7..35403b6 100644
--- a/web/pgadmin/browser/server_groups/servers/databases/schemas/types/templates/type/sql/9.1_plus/create.sql
+++ b/web/pgadmin/browser/server_groups/servers/databases/schemas/types/templates/type/sql/9.1_plus/create.sql
@@ -1,9 +1,13 @@
{% import 'macros/schemas/security.macros' as SECLABLE %}
{% import 'macros/schemas/privilege.macros' as PRIVILEGE %}
+{## If user selected shell type then just create type template ##}
+{% if data and data.typtype == 's' %}
+CREATE TYPE {{ conn|qtIdent(data.schema, data.name) }};
+{% endif %}
{### Composite Type ###}
{% if data and data.typtype == 'c' %}
CREATE TYPE {% if data.schema %}{{ conn|qtIdent(data.schema, data.name) }}{% else %}{{ conn|qtIdent(data.name) }}{% endif %} AS
- ({% if data.composite %}{% for d in data.composite %}{% if loop.index != 1 %}, {% endif %}{{ conn|qtIdent(d.member_name) }} {{ d.type }}{% if d.is_tlength and d.tlength %}({{d.tlength}}{% if d.is_precision and d.precision %},{{d.precision}}{% endif %}){% endif %}{% if d.collation %} COLLATE {{d.collation}}{% endif %}{% endfor %}{% endif %});
+({{"\n\t"}}{% if data.composite %}{% for d in data.composite %}{% if loop.index != 1 %},{{"\n\t"}}{% endif %}{{ conn|qtIdent(d.member_name) }} {{ d.type }}{% if d.is_tlength and d.tlength %}({{d.tlength}}{% if d.is_precision and d.precision %},{{d.precision}}{% endif %}){% endif %}{% if d.collation %} COLLATE {{d.collation}}{% endif %}{% endfor %}{% endif %}{{"\n"}});
{% endif %}
{### Enum Type ###}
{% if data and data.typtype == 'e' %}
@@ -76,4 +80,4 @@ COMMENT ON TYPE {% if data.schema %}{{ conn|qtIdent(data.schema, data.name) }}{%
{{ SECLABLE.SET(conn, 'TYPE', data.name, r.provider, r.security_label, data.schema) }}
{% endif %}
{% endfor %}
-{% endif %}
+{% endif %}
\ No newline at end of file
diff --git a/web/pgadmin/browser/server_groups/servers/databases/schemas/types/templates/type/sql/9.1_plus/get_external_functions.sql b/web/pgadmin/browser/server_groups/servers/databases/schemas/types/templates/type/sql/9.1_plus/get_external_functions.sql
index 86648a2..809efbf 100644
--- a/web/pgadmin/browser/server_groups/servers/databases/schemas/types/templates/type/sql/9.1_plus/get_external_functions.sql
+++ b/web/pgadmin/browser/server_groups/servers/databases/schemas/types/templates/type/sql/9.1_plus/get_external_functions.sql
@@ -1,16 +1,18 @@
{### Input/Output/Send/Receive/Analyze function list also append into TypModeIN/TypModOUT ###}
{% if extfunc %}
SELECT proname, nspname,
- CASE WHEN length(nspname) > 0 AND length(proname) > 0 THEN
+ CASE WHEN (length(nspname) > 0 AND nspname != 'public') and length(proname) > 0 THEN
concat(quote_ident(nspname), '.', quote_ident(proname))
+ WHEN length(proname) > 0 THEN
+ quote_ident(proname)
ELSE '' END AS func
FROM (
SELECT proname, nspname, max(proargtypes[0]) AS arg0, max(proargtypes[1]) AS arg1
FROM pg_proc p
JOIN pg_namespace n ON n.oid=pronamespace
GROUP BY proname, nspname
-HAVING count(proname) = 1 ) AS uniquefunc
-WHERE arg0 <> 0 AND arg1 IS NULL;
+HAVING count(proname) = 1) AS uniquefunc
+WHERE arg0 <> 0 AND (arg1 IS NULL OR arg1 <> 0);
{% endif %}
{### TypmodIN list ###}
{% if typemodin %}
diff --git a/web/pgadmin/browser/server_groups/servers/databases/schemas/utils.py b/web/pgadmin/browser/server_groups/servers/databases/schemas/utils.py
index 129c19e..29c7936 100644
--- a/web/pgadmin/browser/server_groups/servers/databases/schemas/utils.py
+++ b/web/pgadmin/browser/server_groups/servers/databases/schemas/utils.py
@@ -13,6 +13,7 @@ from pgadmin.browser.collection import CollectionNodeModule
from pgadmin.browser.utils import PGChildNodeView
from flask import render_template
from pgadmin.utils.ajax import internal_server_error
+import json
class SchemaChildModule(CollectionNodeModule):
"""
@@ -141,6 +142,97 @@ class DataTypeReader:
return True, res
+ def get_full_type(self, nsp, typname, isDup, numdims, typmod):
+ """
+ Returns full type name with Length and Precision.
+
+ Args:
+ conn: Connection Object
+ condition: condition to restrict SQL statement
+ """
+ needSchema = isDup
+ schema = nsp if nsp is not None else ''
+ name = ''
+ array = ''
+ length = ''
+
+ # Above 7.4, format_type also sends the schema name if it's not included
+ # in the search_path, so we need to skip it in the typname
+ if typname.find(schema + '".') >= 0:
+ name = typname[len(schema)+3]
+ elif typname.find(schema + '.') >= 0:
+ name = typname[len(schema)+1]
+ else:
+ name = typname
+
+ if name.startswith('_'):
+ if not numdims:
+ numdims = 1
+ name = name[1:]
+
+ if name.endswith('[]'):
+ if not numdims:
+ numdims = 1
+ name = name[:-2]
+
+ if name.startswith('"') and name.endswith('"'):
+ name = name[1:-1]
+
+ if numdims > 0:
+ while numdims:
+ array += '[]'
+ numdims -= 1
+
+ if typmod != -1:
+ length = '('
+ if name == 'numeric':
+ _len = (typmod - 4) >> 16;
+ _prec = (typmod - 4) & 0xffff;
+ length += str(_len)
+ if(_prec):
+ length += ',' + str(_prec)
+ elif name == 'time' or \
+ name == 'timetz' or \
+ name == 'time without time zone' or \
+ name == 'time with time zone' or \
+ name == 'timestamp' or \
+ name == 'timestamptz'or \
+ name == 'timestamp without time zone' or \
+ name == 'timestamp with time zone' or \
+ name == 'bit' or \
+ name == 'bit varying' or \
+ name == 'varbit':
+ _prec = 0
+ _len = typmod
+ length += str(_len)
+ elif name == 'interval':
+ _prec = 0
+ _len = typmod & 0xffff
+ length += str(_len)
+ elif name == 'date':
+ # Clear length
+ length = ''
+ else:
+ _len = typmod - 4
+ _prec = 0
+ length += str(_len)
+
+ if len(length) > 0:
+ length += ')'
+
+ if name == 'char' and schema == 'pg_catalog':
+ return '"char"' + array
+ elif name == 'time with time zone':
+ return 'time' + length + ' with time zone' + array
+ elif name == 'time without time zone':
+ return 'time' + length + ' without time zone' + array
+ elif name == 'timestamp with time zone':
+ return 'timestamp' + length + ' with time zone' + array
+ elif name == 'timestamp without time zone':
+ return 'timestamp' + length + ' without time zone' + array
+ else:
+ return name + length + array
+
def trigger_definition(data):
"""
@@ -246,4 +338,4 @@ def parse_rule_definition(res):
res_data['condition'] = condition
except Exception as e:
return internal_server_error(errormsg=str(e))
- return res_data
+ return res_data
\ No newline at end of file
[image/png] Screen Shot 2016-04-14 at 1.03.43 pm.png (69.4K, 4-Screen%20Shot%202016-04-14%20at%201.03.43%20pm.png)
download | view image
view thread (26+ messages) latest in thread
reply
Reply instructions:
You may reply publicly to this message via plain-text email
using any one of the following methods:
* Reply to all the recipients using the --to and --cc options:
reply via email
To: [email protected]
Cc: [email protected], [email protected]
Subject: Re: PATCH: Added Node Type & Catalog objects [pgAdmin4]
In-Reply-To: <CAKKotZSJP1nB18HBHkZTcRJhN0kioSmkhszT_d0x5vPN5LuBng@mail.gmail.com>
* Save the following mbox file, import it into your mail client,
and reply-to-all from there: mbox
This inbox is served by agora; see mirroring instructions
for how to clone and mirror all data and code used for this inbox
