Hi Dave/Hackers,
Attached is the updated patch to change the message.
On Wed, Apr 6, 2022 at 6:07 PM Dave Page <[email protected]> wrote:
> Hi
>
> On Wed, 6 Apr 2022 at 13:32, Aditya Toshniwal <
> [email protected]> wrote:
>
>> Hi Hackers,
>>
>> Due to the limitations of HTML Canvas, if the image exceeds max
>> width/height of 32767 then the image becomes empty.
>> To fix this, I have set the max limit of width and height to 32767. The

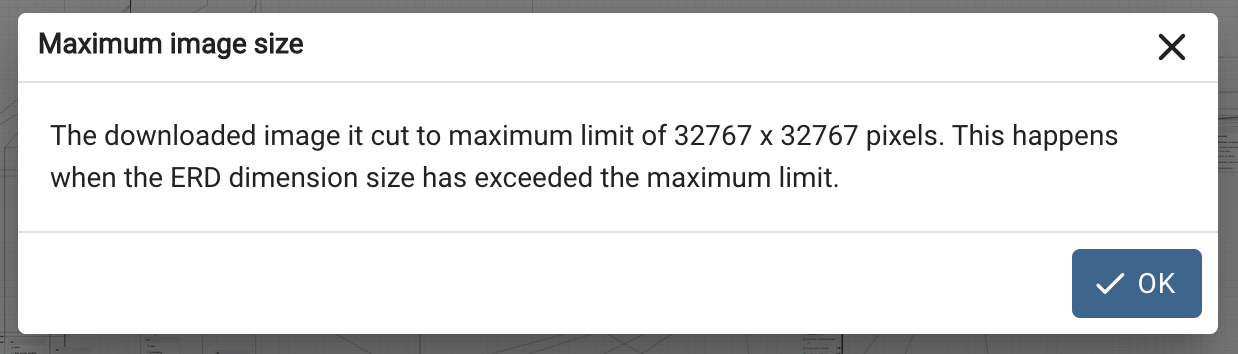

>> ERD diagram will be cut if it exceeds the limit. The ERD tool will also
>> throw an alert to inform the user in that case.
>> Please review.
>>
>> [image: image.png]
>>
>
> "The downloaded image has exceeded the maximum size of 32767 x 32767
> pixels, and has been cropped to that size."
>
> Can we similarly limit the size of the design canvas? 32767 x 32767 is
> huge.
>
There are just too many tables to fit in. I tried to create an SVG image
instead of PNG and it went 200MB.
I will see if we can limit the size of canvas as well.
>
> --
> Dave Page
> Blog: https://pgsnake.blogspot.com
> Twitter: @pgsnake
>
> EDB: https://www.enterprisedb.com
>
>
--
Thanks,
Aditya Toshniwal
pgAdmin Hacker | Software Architect | *edbpostgres.com*
<http://edbpostgres.com;
"Don't Complain about Heat, Plant a TREE"
Attachments:
[image/png] image.png (74.9K, 3-image.png)
download | view image
[application/octet-stream] RM7187_v2.patch (1.6K, 4-RM7187_v2.patch)
download | inline diff:
diff --git a/web/pgadmin/tools/erd/static/js/erd_tool/ui_components/BodyWidget.jsx b/web/pgadmin/tools/erd/static/js/erd_tool/ui_components/BodyWidget.jsx
index 2b598d808..f1eefe903 100644
--- a/web/pgadmin/tools/erd/static/js/erd_tool/ui_components/BodyWidget.jsx
+++ b/web/pgadmin/tools/erd/static/js/erd_tool/ui_components/BodyWidget.jsx
@@ -657,11 +657,24 @@ export default class BodyWidget extends React.Component {
};
setTimeout(()=>{
+ let width = this.canvasEle.scrollWidth + 10;
+ let height = this.canvasEle.scrollHeight + 10;
+ let isCut = false;
+ /* Canvas limitation - https://html2canvas.hertzen.com/faq */
+ if(width >= 32767){
+ width = 32766;
+ isCut = true;
+ }
+ if(height >= 32767){
+ height = 32766;
+ isCut = true;
+ }
html2canvas(this.canvasEle, {
- width: this.canvasEle.scrollWidth + 10,
- height: this.canvasEle.scrollHeight + 10,
+ width: width,
+ height: height,
scrollX: 0,
scrollY: 0,
+ scale: 1,
useCORS: true,
allowTaint: true,
backgroundColor: window.getComputedStyle(this.canvasEle).backgroundColor,
@@ -691,6 +704,10 @@ export default class BodyWidget extends React.Component {
ele.style.transform = prevTransform;
});
this.setLoading(null);
+ if(isCut) {
+ Notify.alert(gettext('Maximum image size limit'),
+ gettext('The downloaded image has exceeded the maximum size of 32767 x 32767 pixels, and has been cropped to that size.'));
+ }
});
}, 1000);
}
