From: Jürgen Purtz <[email protected]>
To: [email protected]
Subject: First SVG graphic
Date: Wed, 21 Nov 2018 13:28:07 +0100
Message-ID: <[email protected]> (raw)

Please find in the attachment a SVG file which shows the internal
structure of PG's pages and a patch to insert it to "storage.sgml".
Because this is the first graphic for our documentation many additional
work must be done. SvgHandling.pdf explains how to create graphics and
integrate them into the textual description, which definitions are
actually missing (style guide?), and what problems may occur.

We shall create two new directories: doc/src/sgml/svg (as source
directory for all svg files) and doc/src/sgml/html/svg. The patch for
Makefile is also attached - HTML, PDF, and EPUB are tested. There is a
conceptual problem with single-page HTML. The SVG files keep separate
and I don't know how to include them into the generated single file
"postgres.html".

@Committers: If you tend to accept this patch, I will start to create
wiki-pages and additional documentation pages to describe the
proceeding. If you reject the patch, please give me a justification.

Kind regards

Jürgen Purtz






diff --git a/doc/src/sgml/Makefile b/doc/src/sgml/Makefile
index 74aac01c39..1fb90cc3f3 100644
--- a/doc/src/sgml/Makefile
+++ b/doc/src/sgml/Makefile
@@ -131,10 +131,11 @@ endif

 html: html-stamp

-html-stamp: stylesheet.xsl postgres.sgml $(ALLSGML)
+html-stamp: stylesheet.xsl postgres.sgml $(ALLSGML) svg/*.svg
 	$(XMLLINT) $(XMLINCLUDE) --noout --valid $(word 2,$^)
 	$(XSLTPROC) $(XMLINCLUDE) $(XSLTPROCFLAGS) $(XSLTPROC_HTML_FLAGS) $(wordlist 1,2,$^)
 	cp $(srcdir)/stylesheet.css html/
+	cp $(srcdir)/svg/*.svg html/svg/
 	touch $@

 htmlhelp: stylesheet-hh.xsl postgres.sgml $(ALLSGML)
@@ -142,7 +143,7 @@ htmlhelp: stylesheet-hh.xsl postgres.sgml $(ALLSGML)
 	$(XSLTPROC) $(XMLINCLUDE) $(XSLTPROCFLAGS) $(wordlist 1,2,$^)

 # single-page HTML
-postgres.html: stylesheet-html-nochunk.xsl postgres.sgml $(ALLSGML)
+postgres.html: stylesheet-html-nochunk.xsl postgres.sgml $(ALLSGML) svg/*.svg
 	$(XMLLINT) $(XMLINCLUDE) --noout --valid $(word 2,$^)
 	$(XSLTPROC) $(XMLINCLUDE) $(XSLTPROCFLAGS) $(XSLTPROC_HTML_FLAGS) -o $@ $(wordlist 1,2,$^)

@@ -158,11 +159,11 @@ postgres.txt: postgres.html
 postgres.pdf:
 	$(error Invalid target;  use postgres-A4.pdf or postgres-US.pdf as targets)

-%-A4.fo: stylesheet-fo.xsl %.sgml $(ALLSGML)
+%-A4.fo: stylesheet-fo.xsl %.sgml $(ALLSGML) svg/*.svg
 	$(XMLLINT) $(XMLINCLUDE) --noout --valid $(word 2,$^)
 	$(XSLTPROC) $(XMLINCLUDE) $(XSLTPROCFLAGS) --stringparam paper.type A4 -o $@ $(wordlist 1,2,$^)

-%-US.fo: stylesheet-fo.xsl %.sgml $(ALLSGML)
+%-US.fo: stylesheet-fo.xsl %.sgml $(ALLSGML) svg/*.svg
 	$(XMLLINT) $(XMLINCLUDE) --noout --valid $(word 2,$^)
 	$(XSLTPROC) $(XMLINCLUDE) $(XSLTPROCFLAGS) --stringparam paper.type USletter -o $@ $(wordlist 1,2,$^)

@@ -175,7 +176,7 @@ postgres.pdf:
 ##

 epub: postgres.epub
-postgres.epub: postgres.sgml $(ALLSGML)
+postgres.epub: postgres.sgml $(ALLSGML) svg/*.svg
 	$(XMLLINT) --noout --valid $<
 	$(DBTOEPUB) $<

diff --git a/doc/src/sgml/storage.sgml b/doc/src/sgml/storage.sgml
index 8ef2ac8010..676bb6ecf4 100644
--- a/doc/src/sgml/storage.sgml
+++ b/doc/src/sgml/storage.sgml
@@ -775,6 +775,18 @@ data. Empty in ordinary tables.</entry>
 </tgroup>
 </table>

+
+ <para>
+  <mediaobject id="PageLayoutSVG">
+   <imageobject role="html">
+    <imagedata fileref="svg/PageLayout.svg" format="SVG" align="center" />
+   </imageobject>
+   <imageobject role="fo">
+    <imagedata fileref="svg/PageLayout.svg" format="SVG" scale="70" />
+   </imageobject>
+  </mediaobject>
+ </para>
+
  <para>

   The first 24 bytes of each page consists of a page header


Attachments:

  [image/svg+xml] PageLayout.svg (3.1K, 2-PageLayout.svg)
  download | view image

  [text/plain] patch.txt (2.5K, 3-patch.txt)
  download | inline diff:
diff --git a/doc/src/sgml/Makefile b/doc/src/sgml/Makefile
index 74aac01c39..1fb90cc3f3 100644
--- a/doc/src/sgml/Makefile
+++ b/doc/src/sgml/Makefile
@@ -131,10 +131,11 @@ endif

 html: html-stamp

-html-stamp: stylesheet.xsl postgres.sgml $(ALLSGML)
+html-stamp: stylesheet.xsl postgres.sgml $(ALLSGML) svg/*.svg
 	$(XMLLINT) $(XMLINCLUDE) --noout --valid $(word 2,$^)
 	$(XSLTPROC) $(XMLINCLUDE) $(XSLTPROCFLAGS) $(XSLTPROC_HTML_FLAGS) $(wordlist 1,2,$^)
 	cp $(srcdir)/stylesheet.css html/
+	cp $(srcdir)/svg/*.svg html/svg/
 	touch $@

 htmlhelp: stylesheet-hh.xsl postgres.sgml $(ALLSGML)
@@ -142,7 +143,7 @@ htmlhelp: stylesheet-hh.xsl postgres.sgml $(ALLSGML)
 	$(XSLTPROC) $(XMLINCLUDE) $(XSLTPROCFLAGS) $(wordlist 1,2,$^)

 # single-page HTML
-postgres.html: stylesheet-html-nochunk.xsl postgres.sgml $(ALLSGML)
+postgres.html: stylesheet-html-nochunk.xsl postgres.sgml $(ALLSGML) svg/*.svg
 	$(XMLLINT) $(XMLINCLUDE) --noout --valid $(word 2,$^)
 	$(XSLTPROC) $(XMLINCLUDE) $(XSLTPROCFLAGS) $(XSLTPROC_HTML_FLAGS) -o $@ $(wordlist 1,2,$^)

@@ -158,11 +159,11 @@ postgres.txt: postgres.html
 postgres.pdf:
 	$(error Invalid target;  use postgres-A4.pdf or postgres-US.pdf as targets)

-%-A4.fo: stylesheet-fo.xsl %.sgml $(ALLSGML)
+%-A4.fo: stylesheet-fo.xsl %.sgml $(ALLSGML) svg/*.svg
 	$(XMLLINT) $(XMLINCLUDE) --noout --valid $(word 2,$^)
 	$(XSLTPROC) $(XMLINCLUDE) $(XSLTPROCFLAGS) --stringparam paper.type A4 -o $@ $(wordlist 1,2,$^)

-%-US.fo: stylesheet-fo.xsl %.sgml $(ALLSGML)
+%-US.fo: stylesheet-fo.xsl %.sgml $(ALLSGML) svg/*.svg
 	$(XMLLINT) $(XMLINCLUDE) --noout --valid $(word 2,$^)
 	$(XSLTPROC) $(XMLINCLUDE) $(XSLTPROCFLAGS) --stringparam paper.type USletter -o $@ $(wordlist 1,2,$^)

@@ -175,7 +176,7 @@ postgres.pdf:
 ##

 epub: postgres.epub
-postgres.epub: postgres.sgml $(ALLSGML)
+postgres.epub: postgres.sgml $(ALLSGML) svg/*.svg
 	$(XMLLINT) --noout --valid $<
 	$(DBTOEPUB) $<

diff --git a/doc/src/sgml/storage.sgml b/doc/src/sgml/storage.sgml
index 8ef2ac8010..676bb6ecf4 100644
--- a/doc/src/sgml/storage.sgml
+++ b/doc/src/sgml/storage.sgml
@@ -775,6 +775,18 @@ data. Empty in ordinary tables.</entry>
 </tgroup>
 </table>

+
+ <para>
+  <mediaobject id="PageLayoutSVG">
+   <imageobject role="html">
+    <imagedata fileref="svg/PageLayout.svg" format="SVG" align="center" />
+   </imageobject>
+   <imageobject role="fo">
+    <imagedata fileref="svg/PageLayout.svg" format="SVG" scale="70" />
+   </imageobject>
+  </mediaobject>
+ </para>
+
  <para>

   The first 24 bytes of each page consists of a page header


  [application/pdf] SvgHandling.pdf (216.9K, 4-SvgHandling.pdf)
  download

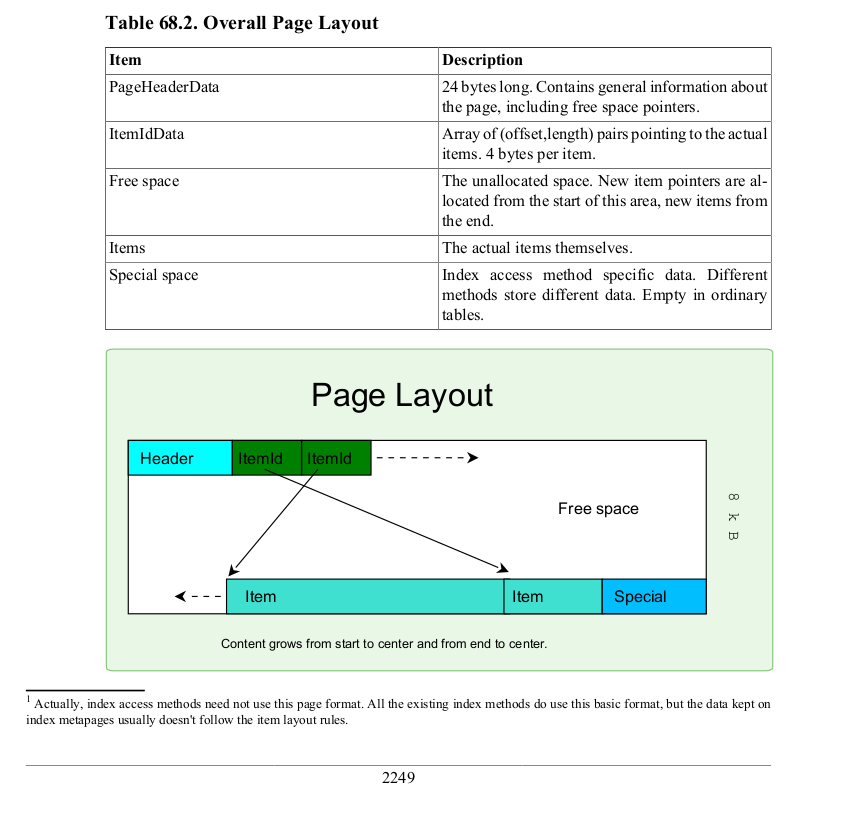

  [image/png] ScreenshotPDF.png (76.7K, 5-ScreenshotPDF.png)
  download | view image
