Hi,
Here's a new WIP version of the patch set adding prefetching to indexes,
exploring a couple alternative approaches. After the patch 2023/10/16
version, I happened to have an off-list discussion with Andres, and he
suggested to try a couple things, and there's a couple more things I
tried on my own too.
Attached is the patch series starting with the 2023/10/16 patch, and
then trying different things in separate patches (discussed later). As
usual, there's also a bunch of benchmark results - due to size I'm
unable to attach all of them here (the PDFs are pretty large), but you
can find them at (with all the scripts etc.):
https://github.com/tvondra/index-prefetch-tests/tree/master/2023-11-23
I'll attach only a couple small PNG with highlighted speedup/regression
patterns, but it's unreadable and more of a pointer to the PDF.
A quick overview of the patches
-------------------------------
v20231124-0001-prefetch-2023-10-16.patch
- same as the October 16 patch, with only minor comment tweaks
v20231124-0002-rely-on-PrefetchBuffer-instead-of-custom-c.patch
- removes custom cache of recently prefetched blocks, replaces it
simply by calling PrefetchBuffer (which check shared buffers)
v20231124-0003-check-page-cache-using-preadv2.patch
- adds a check using preadv2(RWF_NOWAIT) to check if the whole
page is in page cache
v20231124-0004-reintroduce-the-LRU-cache-of-recent-blocks.patch
- adds back a small LRU cache to identify sequential patterns
(based on benchmarks of 0002/0003 patches)
v20231124-0005-hold-the-vm-buffer-for-IOS-prefetching.patch
v20231124-0006-poc-reuse-vm-information.patch
- optimizes the visibilitymap handling when prefetching for IOS
(to deal with overhead in the all-visible cases) by
v20231124-0007-20231016-reworked.patch
- returns back to the 20231016 patch, but this time with the VM
optimizations in patches 0005/0006 (in retrospect I might have
simply moved 0005+0006 right after 0001, but the patch evolved
differently - shouldn't matter here)
Now, let's talk about the patches one by one ...
PrefetchBuffer + preadv2 (0002+0003)
------------------------------------
After I posted the patch in October, I happened to have an off-list
discussion with Andres, and he suggested to try ditching the local cache
of recently prefetched blocks, and instead:
1) call PrefetchBuffer (which checks if the page is in shared buffers,
and skips the prefetch if it's already there)
2) if the page is not in shared buffers, use preadv2(RWF_NOWAIT) to
check if it's in the kernel page cache
Doing (1) is trivial - PrefetchBuffer() already does the shared buffer
check, so 0002 simply removes the custom cache code.
Doing (2) needs a bit more code to actually call preadv2() - 0003 adds
FileCached() to fd.c, smgrcached() to smgr.c, and then calls it from
PrefetchBuffer() right before smgrprefetch(). There's a couple loose
ends (e.g. configure should check if preadv2 is supported), but in
principle I think this is generally correct.
Unfortunately, these changes led to a bunch of clear regressions :-(

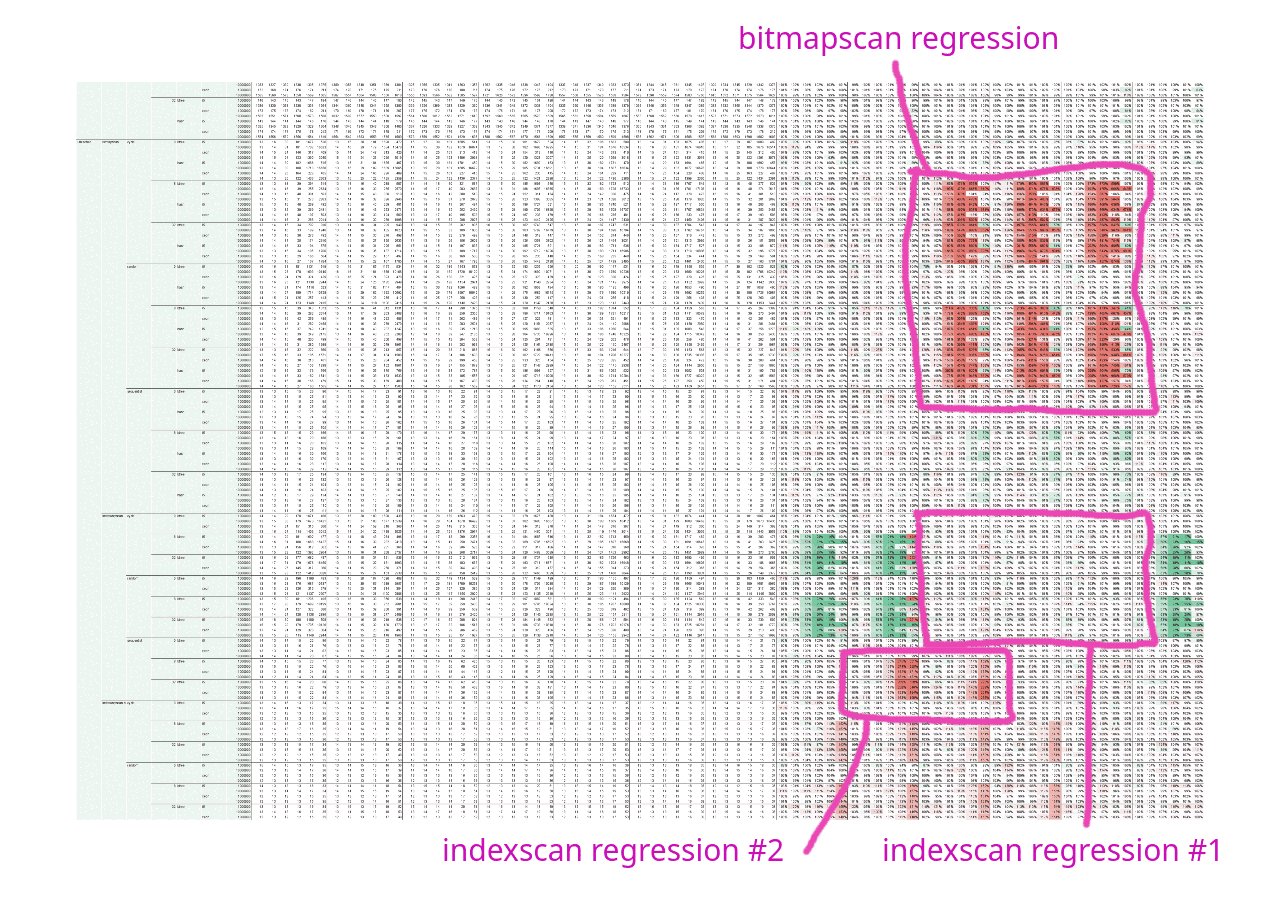

Take a look at the attached point-4-regressions-small.png, which is page
5 from the full results PDF [1][2]. As before, I plotted this as a huge
pivot table with various parameters (test, dataset, prefetch, ...) on
the left, and (build, nmatches) on the top. So each column shows timings
for a particular patch and query returning nmatches rows.
After the pivot table (on the right) is a heatmap, comparing timings for
each build to master (the first couple of columns). As usual, the
numbers are "timing compared to master" so e.g. 50% means the query
completed in 1/2 the time compared to master. Color coding is simple
too, green means "good" (speedup), red means "bad" (regression). The
higher the saturation, the bigger the difference.
I find this visualization handy as it quickly highlights differences
between the various patches. Just look for changes in red/green areas.
In the points-5-regressions-small.png image, you can see three areas of
clear regressions, either compared to the master or the 20231016 patch.
All of this is for "uncached" runs, i.e. after instance got restarted
and the page cache was dropped too.
The first regression is for bitmapscan. The first two builds show no
difference compared to master - which makes sense, because the 20231016
patch does not touch any code used by bitmapscan, and the 0003 patch
simply uses PrefetchBuffer as is. But then 0004 adds preadv2 to it, and
the performance immediately sinks, with timings being ~5-6x higher for
queries matching 1k-100k rows.
The patches 0005/0006 can't possibly improve this, because visibilitymap
are entirely unrelated to bitmapscans, and so is the small LRU to
detect sequential patterns.
The indexscan regression #1 shows a similar pattern, but in the opposite
direction - indesxcan cases massively improved with the 20231016 patch
(and even after just using PrefetchBuffer) revert back to master with
0003 (adding preadv2). Ditching the preadv2 restores the gains (the last
build results are nicely green again).
The indexscan regression #2 is interesting too, and it illustrates the
importance of detecting sequential access patterns. It shows that as
soon as we call PrefetBuffer() directly, the timings increase to maybe
2-5x compared to master. That's pretty terrible. Once the small LRU
cache used to detect sequential patterns is added back, the performance
recovers and regression disappears. Clearly, this detection matters.
Unfortunately, the LRU can't do anything for the two other regresisons,
because those are on random/cyclic patterns, so the LRU won't work
(certainly not for the random case).
preadv2 issues?
---------------
I'm not entirely sure if I'm using preadv2 somehow wrong, but it doesn't
seem to perform terribly well in this use case. I decided to do some
microbenchmarks, measuring how long it takes to do preadv2 when the
pages are [not] in cache etc. The C files are at [3].
preadv2-test simply reads file twice, first with NOWAIT and then without
it. With clean page cache, the results look like this:
file: ./tmp.img size: 1073741824 (131072) block 8192 check 8192
preadv2 NOWAIT time 78472 us calls 131072 hits 0 misses 131072
preadv2 WAIT time 9849082 us calls 131072 hits 131072 misses 0
and then, if you run it again with the file still being in page cache:
file: ./tmp.img size: 1073741824 (131072) block 8192 check 8192
preadv2 NOWAIT time 258880 us calls 131072 hits 131072 misses 0
preadv2 WAIT time 213196 us calls 131072 hits 131072 misses 0
This is pretty terrible, IMO. It says that if the page is not in cache,
the preadv2 calls take ~80ms. Which is very cheap, compared to the total
read time (so if we can speed that up by prefetching, it's worth it).
But if the file is already in cache, it takes ~260ms, and actually
exceeds the time needed to just do preadv2() without the NOWAIT flag.
AFAICS the problem is preadv2() doesn't just check if the data is
available, it also copies the data and all that. But even if we only ask
for the first byte, it's still way more expensive than with empty cache:
file: ./tmp.img size: 1073741824 (131072) block 8192 check 1
preadv2 NOWAIT time 119751 us calls 131072 hits 131072 misses 0
preadv2 WAIT time 208136 us calls 131072 hits 131072 misses 0
There's also a fadvise-test microbenchmark that just does fadvise all
the time, and even that is way cheaper than using preadv2(NOWAIT) in
both cases:
no cache:
file: ./tmp.img size: 1073741824 (131072) block 8192
fadvise time 631686 us calls 131072 hits 0 misses 0
preadv2 time 207483 us calls 131072 hits 131072 misses 0
cache:
file: ./tmp.img size: 1073741824 (131072) block 8192
fadvise time 79874 us calls 131072 hits 0 misses 0
preadv2 time 239141 us calls 131072 hits 131072 misses 0
So that's 300ms vs. 500ms in the caches case (the difference in the
no-cache case is even more significant).
It's entirely possible I'm doing something wrong, or maybe I just think
about this the wrong way, but I can't quite imagine this being useful
for this working - at least not for reasonably good local storage. Maybe
it could help for slow/remote storage, or something?
For now, I think the right approach is to go back to the cache of
recently prefetched blocks. I liked on the preadv2 approach is that it
knows exactly what is currently in page cache, while the local cache is
just an approximation cache of recently prefetched blocks. And it also
knows about stuff prefetched by other backends, while the local cache is
private to the particular backend (or even to the particular scan node).
But the local cache seems to perform much better, so there's that.
LRU cache of recent blocks (0004)
---------------------------------
The importance of this optimization is clearly visible in the regression
image mentioned earlier - the "indexscan regression #2" shows that the
sequential pattern regresses with 0002+0003 patches, but once the small
LRU cache is introduced back and uses to skip prefetching for sequential
patterns, the regression disappears. Ofc, this is part of the origina
20231016 patch, so going back to that version naturally includes this.
visibility map optimizations (0005/0006)
----------------------------------------
Earlier benchmark results showed a bit annoying regression for
index-only scans that don't need prefetching (i.e. with all pages
all-visible). There was quite a bit of inefficiency because both the
prefetcher and IOS code accessed the visibilitymap independently, and
the prefetcher did that in a rather inefficient way. These patches make
the prefetcher more efficient by reusing buffer, and also share the
visibility info between prefetcher and the IOS code.

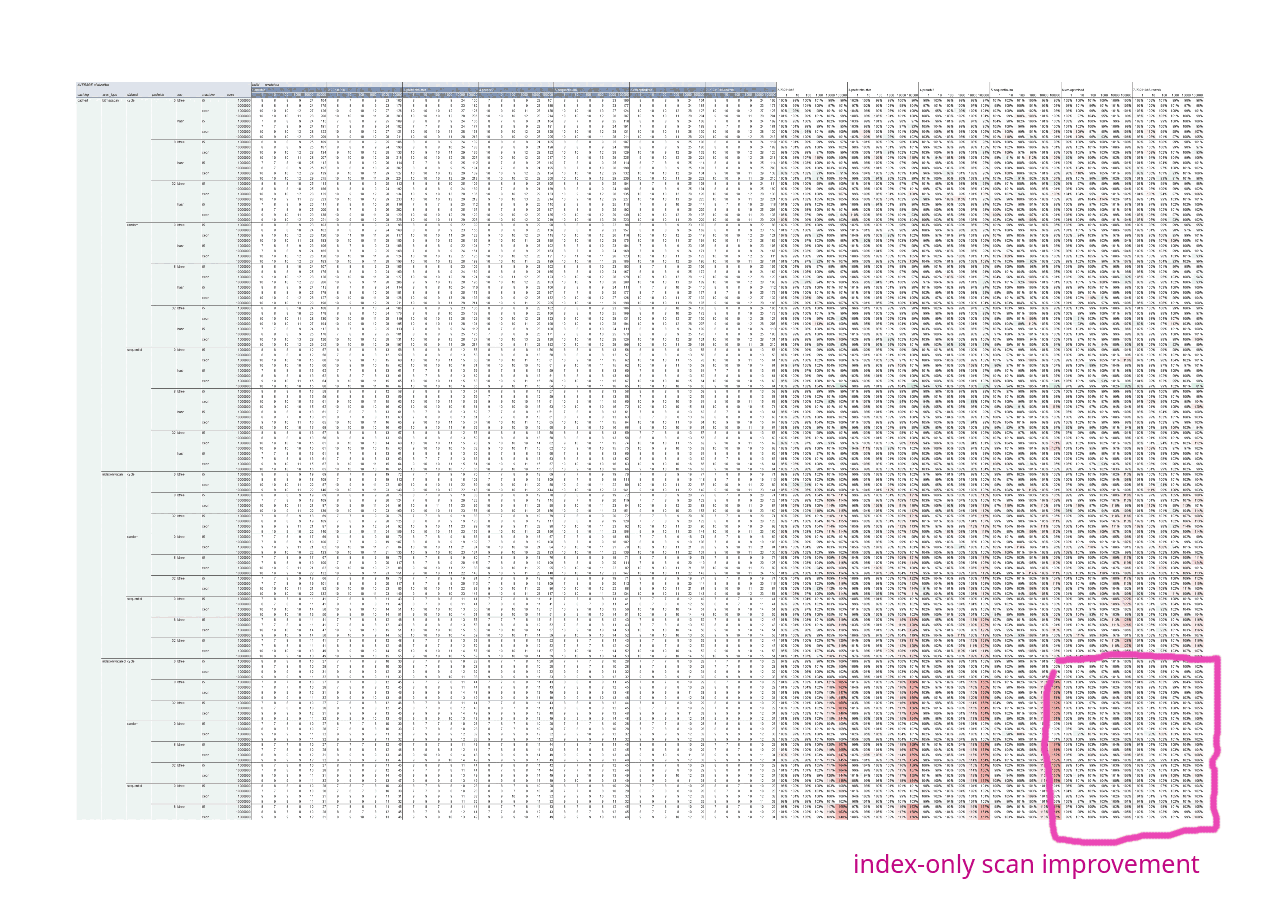

I'm sure this needs more work / cleanup, but the regresion is mostly
gone, as illustrated by the attached point-0-ios-improvement-small.png.
layering questions
------------------
Aside from the preadv2() question, the main open question remains to be
the "layering", i.e. which code should be responsible for prefetching.
At the moment all the magic happens in indexam.c, in index_getnext_*
functions, so that all callers benefit from prefetching.
But as mentioned earlier in this thread, indexam.c seems to be the wrong
layer, and I think I agree. The problem is - the prefetching needs to
happen in index_getnext_* so that all index_getnext_* callers benefit
from it. We could do that in the executor for index_getnext_tid(), but
that's a bit weird - it'd work for index-only scans, but the primary
target is regular index scans, which calls index_getnext_slot().
However, it seems it'd be good if the prefetcher and the executor code
could exchange/share information more easily. Take for example the
visibilitymap stuff in IOS in patches 0005/0006). I made it work, but it
sure looks inconvenient, partially due to the split between executor and
indexam code.
The only idea I have is to have the prefetcher code somewhere in the
executor, but then pass it to index_getnext_* functions, either as a new
parameter (with NULL => no prefetching), or maybe as a field of scandesc
(but that seems wrong, to point from the desc to something that's
essentially a part of the executor state).
There's also the thing that the prefetcher is part of IndexScanDesc, but
it really should be in the IndexScanState. That's weird, but mostly down
to my general laziness.
regards
[1]
https://github.com/tvondra/index-prefetch-tests/blob/master/2023-11-23/pdf/point.pdf
[2]
https://github.com/tvondra/index-prefetch-tests/blob/master/2023-11-23/png/point-4.png
[3]
https://github.com/tvondra/index-prefetch-tests/tree/master/2023-11-23/preadv-tests
--
Tomas Vondra
EnterpriseDB: http://www.enterprisedb.com
The Enterprise PostgreSQL Company
Attachments:
[text/x-patch] v20231124-0001-prefetch-2023-10-16.patch (53.5K, 2-v20231124-0001-prefetch-2023-10-16.patch)
download | inline diff:
From 3bf9b6c3554b5aa70c189bf4d04c9f063a8ac49b Mon Sep 17 00:00:00 2001
From: Tomas Vondra <[email protected]>
Date: Fri, 17 Nov 2023 23:54:19 +0100
Subject: [PATCH v20231124 1/7] prefetch 2023-10-16
Patch version shared on 2023/10/16, with only minor tweaks in comments.
https://www.postgresql.org/message-id/06bb7d02-2c44-3062-731e-a735ba13da7e%40enterprisedb.com
---
src/backend/access/heap/heapam_handler.c | 12 +-
src/backend/access/index/genam.c | 31 +-
src/backend/access/index/indexam.c | 659 ++++++++++++++++++++++-
src/backend/commands/explain.c | 18 +
src/backend/executor/execIndexing.c | 6 +-
src/backend/executor/execReplication.c | 9 +-
src/backend/executor/instrument.c | 4 +
src/backend/executor/nodeIndexonlyscan.c | 73 ++-
src/backend/executor/nodeIndexscan.c | 80 ++-
src/backend/utils/adt/selfuncs.c | 3 +-
src/include/access/genam.h | 101 +++-
src/include/access/relscan.h | 9 +
src/include/executor/instrument.h | 2 +
13 files changed, 975 insertions(+), 32 deletions(-)
diff --git a/src/backend/access/heap/heapam_handler.c b/src/backend/access/heap/heapam_handler.c
index 7c28dafb728..89474078951 100644
--- a/src/backend/access/heap/heapam_handler.c
+++ b/src/backend/access/heap/heapam_handler.c
@@ -44,6 +44,7 @@
#include "storage/smgr.h"
#include "utils/builtins.h"
#include "utils/rel.h"
+#include "utils/spccache.h"
static void reform_and_rewrite_tuple(HeapTuple tuple,
Relation OldHeap, Relation NewHeap,
@@ -747,6 +748,14 @@ heapam_relation_copy_for_cluster(Relation OldHeap, Relation NewHeap,
PROGRESS_CLUSTER_INDEX_RELID
};
int64 ci_val[2];
+ int prefetch_max;
+
+ /*
+ * Get the prefetch target for the old tablespace (which is what we'll
+ * read using the index). We'll use it as a reset value too, although
+ * there should be no rescans for CLUSTER etc.
+ */
+ prefetch_max = get_tablespace_io_concurrency(OldHeap->rd_rel->reltablespace);
/* Set phase and OIDOldIndex to columns */
ci_val[0] = PROGRESS_CLUSTER_PHASE_INDEX_SCAN_HEAP;
@@ -755,7 +764,8 @@ heapam_relation_copy_for_cluster(Relation OldHeap, Relation NewHeap,
tableScan = NULL;
heapScan = NULL;
- indexScan = index_beginscan(OldHeap, OldIndex, SnapshotAny, 0, 0);
+ indexScan = index_beginscan(OldHeap, OldIndex, SnapshotAny, 0, 0,
+ prefetch_max);
index_rescan(indexScan, NULL, 0, NULL, 0);
}
else
diff --git a/src/backend/access/index/genam.c b/src/backend/access/index/genam.c
index 4ca12006843..d45a209ee3a 100644
--- a/src/backend/access/index/genam.c
+++ b/src/backend/access/index/genam.c
@@ -126,6 +126,9 @@ RelationGetIndexScan(Relation indexRelation, int nkeys, int norderbys)
scan->xs_hitup = NULL;
scan->xs_hitupdesc = NULL;
+ /* Information used for asynchronous prefetching during index scans. */
+ scan->xs_prefetch = NULL;
+
return scan;
}
@@ -440,8 +443,20 @@ systable_beginscan(Relation heapRelation,
elog(ERROR, "column is not in index");
}
+ /*
+ * We don't do any prefetching on system catalogs, for two main reasons.
+ *
+ * Firstly, we usually do PK lookups, which makes prefetching pointles,
+ * or we often don't know how many rows to expect (and the numbers tend
+ * to be fairly low). So it's not clear it'd help. Furthermore, places
+ * that are sensitive tend to use syscache anyway.
+ *
+ * Secondly, we can't call get_tablespace_io_concurrency() because that
+ * does a sysscan internally, so it might lead to a cycle. We could use
+ * use effective_io_concurrency, but it doesn't seem worth it.
+ */
sysscan->iscan = index_beginscan(heapRelation, irel,
- snapshot, nkeys, 0);
+ snapshot, nkeys, 0, 0);
index_rescan(sysscan->iscan, key, nkeys, NULL, 0);
sysscan->scan = NULL;
}
@@ -696,8 +711,20 @@ systable_beginscan_ordered(Relation heapRelation,
elog(ERROR, "column is not in index");
}
+ /*
+ * We don't do any prefetching on system catalogs, for two main reasons.
+ *
+ * Firstly, we usually do PK lookups, which makes prefetching pointles,
+ * or we often don't know how many rows to expect (and the numbers tend
+ * to be fairly low). So it's not clear it'd help. Furthermore, places
+ * that are sensitive tend to use syscache anyway.
+ *
+ * Secondly, we can't call get_tablespace_io_concurrency() because that
+ * does a sysscan internally, so it might lead to a cycle. We could use
+ * use effective_io_concurrency, but it doesn't seem worth it.
+ */
sysscan->iscan = index_beginscan(heapRelation, indexRelation,
- snapshot, nkeys, 0);
+ snapshot, nkeys, 0, 0);
index_rescan(sysscan->iscan, key, nkeys, NULL, 0);
sysscan->scan = NULL;
diff --git a/src/backend/access/index/indexam.c b/src/backend/access/index/indexam.c
index b25b03f7abc..51feece527a 100644
--- a/src/backend/access/index/indexam.c
+++ b/src/backend/access/index/indexam.c
@@ -49,16 +49,19 @@
#include "access/relscan.h"
#include "access/tableam.h"
#include "access/transam.h"
+#include "access/visibilitymap.h"
#include "access/xlog.h"
#include "catalog/index.h"
#include "catalog/pg_amproc.h"
#include "catalog/pg_type.h"
#include "commands/defrem.h"
+#include "common/hashfn.h"
#include "nodes/makefuncs.h"
#include "pgstat.h"
#include "storage/bufmgr.h"
#include "storage/lmgr.h"
#include "storage/predicate.h"
+#include "utils/lsyscache.h"
#include "utils/ruleutils.h"
#include "utils/snapmgr.h"
#include "utils/syscache.h"
@@ -106,7 +109,10 @@ do { \
static IndexScanDesc index_beginscan_internal(Relation indexRelation,
int nkeys, int norderbys, Snapshot snapshot,
- ParallelIndexScanDesc pscan, bool temp_snap);
+ ParallelIndexScanDesc pscan, bool temp_snap,
+ int prefetch_max);
+
+static void index_prefetch(IndexScanDesc scan, ItemPointer tid, bool skip_all_visible);
/* ----------------------------------------------------------------
@@ -200,18 +206,42 @@ index_insert(Relation indexRelation,
* index_beginscan - start a scan of an index with amgettuple
*
* Caller must be holding suitable locks on the heap and the index.
+ *
+ * prefetch_max determines if prefetching is requested for this index scan,
+ * and how far ahead we want to prefetch
+ *
+ * Setting prefetch_max to 0 disables prefetching for the index scan. We do
+ * this for two reasons - for scans on system catalogs, and/or for cases where
+ * prefetching is expected to be pointless (like IOS).
+ *
+ * For system catalogs, we usually either scan by a PK value, or we we expect
+ * only few rows (or rather we don't know how many rows to expect). Also, we
+ * need to prevent infinite in the get_tablespace_io_concurrency() call - it
+ * does an index scan internally. So we simply disable prefetching for system
+ * catalogs. We could deal with this by picking a conservative static target
+ * (e.g. effective_io_concurrency, capped to something), but places that are
+ * performance sensitive likely use syscache anyway, and catalogs tend to be
+ * very small and hot. So we don't bother.
+ *
+ * For IOS, we expect to not need most heap pages (that's the whole point of
+ * IOS, actually), and prefetching them might lead to a lot of wasted I/O.
+ *
+ * XXX Not sure the infinite loop can still happen, now that the target lookup
+ * moved to callers of index_beginscan.
*/
IndexScanDesc
index_beginscan(Relation heapRelation,
Relation indexRelation,
Snapshot snapshot,
- int nkeys, int norderbys)
+ int nkeys, int norderbys,
+ int prefetch_max)
{
IndexScanDesc scan;
Assert(snapshot != InvalidSnapshot);
- scan = index_beginscan_internal(indexRelation, nkeys, norderbys, snapshot, NULL, false);
+ scan = index_beginscan_internal(indexRelation, nkeys, norderbys, snapshot,
+ NULL, false, prefetch_max);
/*
* Save additional parameters into the scandesc. Everything else was set
@@ -241,7 +271,8 @@ index_beginscan_bitmap(Relation indexRelation,
Assert(snapshot != InvalidSnapshot);
- scan = index_beginscan_internal(indexRelation, nkeys, 0, snapshot, NULL, false);
+ /* No prefetch in bitmap scans, prefetch is done by the heap scan. */
+ scan = index_beginscan_internal(indexRelation, nkeys, 0, snapshot, NULL, false, 0);
/*
* Save additional parameters into the scandesc. Everything else was set
@@ -258,7 +289,8 @@ index_beginscan_bitmap(Relation indexRelation,
static IndexScanDesc
index_beginscan_internal(Relation indexRelation,
int nkeys, int norderbys, Snapshot snapshot,
- ParallelIndexScanDesc pscan, bool temp_snap)
+ ParallelIndexScanDesc pscan, bool temp_snap,
+ int prefetch_max)
{
IndexScanDesc scan;
@@ -282,6 +314,29 @@ index_beginscan_internal(Relation indexRelation,
scan->parallel_scan = pscan;
scan->xs_temp_snap = temp_snap;
+ /*
+ * With prefetching requested, initialize the prefetcher state.
+ *
+ * FIXME This should really be in the IndexScanState, not IndexScanDesc
+ * (certainly the queues etc). But index_getnext_tid only gets the scan
+ * descriptor, so how else would we pass it? Seems like a sign of wrong
+ * layer doing the prefetching.
+ */
+ if ((prefetch_max > 0) &&
+ (io_direct_flags & IO_DIRECT_DATA) == 0) /* no prefetching for direct I/O */
+ {
+ IndexPrefetch prefetcher = palloc0(sizeof(IndexPrefetchData));
+
+ prefetcher->queueIndex = 0;
+ prefetcher->queueStart = 0;
+ prefetcher->queueEnd = 0;
+
+ prefetcher->prefetchTarget = 0;
+ prefetcher->prefetchMaxTarget = prefetch_max;
+
+ scan->xs_prefetch = prefetcher;
+ }
+
return scan;
}
@@ -317,6 +372,20 @@ index_rescan(IndexScanDesc scan,
scan->indexRelation->rd_indam->amrescan(scan, keys, nkeys,
orderbys, norderbys);
+
+ /* If we're prefetching for this index, maybe reset some of the state. */
+ if (scan->xs_prefetch != NULL)
+ {
+ IndexPrefetch prefetcher = scan->xs_prefetch;
+
+ prefetcher->queueStart = 0;
+ prefetcher->queueEnd = 0;
+ prefetcher->queueIndex = 0;
+ prefetcher->prefetchDone = false;
+
+ /* restart the incremental ramp-up */
+ prefetcher->prefetchTarget = 0;
+ }
}
/* ----------------
@@ -345,6 +414,23 @@ index_endscan(IndexScanDesc scan)
if (scan->xs_temp_snap)
UnregisterSnapshot(scan->xs_snapshot);
+ /*
+ * If prefetching was enabled for this scan, log prefetch stats.
+ *
+ * FIXME This should really go to EXPLAIN ANALYZE instead.
+ */
+ if (scan->xs_prefetch)
+ {
+ IndexPrefetch prefetch = scan->xs_prefetch;
+
+ elog(LOG, "index prefetch stats: requests " UINT64_FORMAT " prefetches " UINT64_FORMAT " (%f) skip cached " UINT64_FORMAT " sequential " UINT64_FORMAT,
+ prefetch->countAll,
+ prefetch->countPrefetch,
+ prefetch->countPrefetch * 100.0 / prefetch->countAll,
+ prefetch->countSkipCached,
+ prefetch->countSkipSequential);
+ }
+
/* Release the scan data structure itself */
IndexScanEnd(scan);
}
@@ -490,7 +576,8 @@ index_parallelrescan(IndexScanDesc scan)
*/
IndexScanDesc
index_beginscan_parallel(Relation heaprel, Relation indexrel, int nkeys,
- int norderbys, ParallelIndexScanDesc pscan)
+ int norderbys, ParallelIndexScanDesc pscan,
+ int prefetch_max)
{
Snapshot snapshot;
IndexScanDesc scan;
@@ -499,7 +586,7 @@ index_beginscan_parallel(Relation heaprel, Relation indexrel, int nkeys,
snapshot = RestoreSnapshot(pscan->ps_snapshot_data);
RegisterSnapshot(snapshot);
scan = index_beginscan_internal(indexrel, nkeys, norderbys, snapshot,
- pscan, true);
+ pscan, true, prefetch_max);
/*
* Save additional parameters into the scandesc. Everything else was set
@@ -623,20 +710,95 @@ index_fetch_heap(IndexScanDesc scan, TupleTableSlot *slot)
bool
index_getnext_slot(IndexScanDesc scan, ScanDirection direction, TupleTableSlot *slot)
{
+ IndexPrefetch prefetch = scan->xs_prefetch; /* for convenience */
+
for (;;)
{
+ /*
+ * If the prefetching is still active (i.e. enabled and we still
+ * haven't finished reading TIDs from the scan), read enough TIDs into
+ * the queue until we hit the current target.
+ */
+ if (PREFETCH_ACTIVE(prefetch))
+ {
+ /*
+ * Ramp up the prefetch distance incrementally.
+ *
+ * Intentionally done as first, before reading the TIDs into the
+ * queue, so that there's always at least one item. Otherwise we
+ * might get into a situation where we start with target=0 and no
+ * TIDs loaded.
+ */
+ prefetch->prefetchTarget = Min(prefetch->prefetchTarget + 1,
+ prefetch->prefetchMaxTarget);
+
+ /*
+ * Now read TIDs from the index until the queue is full (with
+ * respect to the current prefetch target).
+ */
+ while (!PREFETCH_FULL(prefetch))
+ {
+ ItemPointer tid;
+
+ /* Time to fetch the next TID from the index */
+ tid = index_getnext_tid(scan, direction);
+
+ /*
+ * If we're out of index entries, we're done (and we mark the
+ * the prefetcher as inactive).
+ */
+ if (tid == NULL)
+ {
+ prefetch->prefetchDone = true;
+ break;
+ }
+
+ Assert(ItemPointerEquals(tid, &scan->xs_heaptid));
+
+ prefetch->queueItems[PREFETCH_QUEUE_INDEX(prefetch->queueEnd)] = *tid;
+ prefetch->queueEnd++;
+
+ /*
+ * Issue the actuall prefetch requests for the new TID.
+ *
+ * FIXME For IOS, this should prefetch only pages that are not
+ * fully visible.
+ */
+ index_prefetch(scan, tid, false);
+ }
+ }
+
if (!scan->xs_heap_continue)
{
- ItemPointer tid;
+ /*
+ * With prefetching enabled (even if we already finished reading
+ * all TIDs from the index scan), we need to return a TID from the
+ * queue. Otherwise, we just get the next TID from the scan
+ * directly.
+ */
+ if (PREFETCH_ENABLED(prefetch))
+ {
+ /* Did we reach the end of the scan and the queue is empty? */
+ if (PREFETCH_DONE(prefetch))
+ break;
- /* Time to fetch the next TID from the index */
- tid = index_getnext_tid(scan, direction);
+ scan->xs_heaptid = prefetch->queueItems[PREFETCH_QUEUE_INDEX(prefetch->queueIndex)];
+ prefetch->queueIndex++;
+ }
+ else /* not prefetching, just do the regular work */
+ {
+ ItemPointer tid;
- /* If we're out of index entries, we're done */
- if (tid == NULL)
- break;
+ /* Time to fetch the next TID from the index */
+ tid = index_getnext_tid(scan, direction);
+
+ /* If we're out of index entries, we're done */
+ if (tid == NULL)
+ break;
+
+ Assert(ItemPointerEquals(tid, &scan->xs_heaptid));
+ }
- Assert(ItemPointerEquals(tid, &scan->xs_heaptid));
}
/*
@@ -988,3 +1150,472 @@ index_opclass_options(Relation indrel, AttrNumber attnum, Datum attoptions,
return build_local_reloptions(&relopts, attoptions, validate);
}
+
+/*
+ * index_prefetch_is_sequential
+ * Track the block number and check if the I/O pattern is sequential,
+ * or if the same block was just prefetched.
+ *
+ * Prefetching is cheap, but for some access patterns the benefits are small
+ * compared to the extra overhead. In particular, for sequential access the
+ * read-ahead performed by the OS is very effective/efficient. Doing more
+ * prefetching is just increasing the costs.
+ *
+ * This tries to identify simple sequential patterns, so that we can skip
+ * the prefetching request. This is implemented by having a small queue
+ * of block numbers, and checking it before prefetching another block.
+ *
+ * We look at the preceding PREFETCH_SEQ_PATTERN_BLOCKS blocks, and see if
+ * they are sequential. We also check if the block is the same as the last
+ * request (which is not sequential).
+ *
+ * Note that the main prefetch queue is not really useful for this, as it
+ * stores TIDs while we care about block numbers. Consider a sorted table,
+ * with a perfectly sequential pattern when accessed through an index. Each
+ * heap page may have dozens of TIDs, but we need to check block numbers.
+ * We could keep enough TIDs to cover enough blocks, but then we also need
+ * to walk those when checking the pattern (in hot path).
+ *
+ * So instead, we maintain a small separate queue of block numbers, and we use
+ * this instead.
+ *
+ * Returns true if the block is in a sequential pattern (and so should not be
+ * prefetched), or false (not sequential, should be prefetched).
+ *
+ * XXX The name is a bit misleading, as it also adds the block number to the
+ * block queue and checks if the block is the same as the last one (which
+ * does not require a sequential pattern).
+ */
+static bool
+index_prefetch_is_sequential(IndexPrefetch prefetch, BlockNumber block)
+{
+ int idx;
+
+ /*
+ * If the block queue is empty, just store the block and we're done (it's
+ * neither a sequential pattern, neither recently prefetched block).
+ */
+ if (prefetch->blockIndex == 0)
+ {
+ prefetch->blockItems[PREFETCH_BLOCK_INDEX(prefetch->blockIndex)] = block;
+ prefetch->blockIndex++;
+ return false;
+ }
+
+ /*
+ * Check if it's the same as the immediately preceding block. We don't
+ * want to prefetch the same block over and over (which would happen for
+ * well correlated indexes).
+ *
+ * In principle we could rely on index_prefetch_add_cache doing this using
+ * the full cache, but this check is much cheaper and we need to look at
+ * the preceding block anyway, so we just do it.
+ *
+ * XXX Notice we haven't added the block to the block queue yet, and there
+ * is a preceding block (i.e. blockIndex-1 is valid).
+ */
+ if (prefetch->blockItems[PREFETCH_BLOCK_INDEX(prefetch->blockIndex - 1)] == block)
+ return true;
+
+ /*
+ * Add the block number to the queue.
+ *
+ * We do this before checking if the pattern, because we want to know
+ * about the block even if we end up skipping the prefetch. Otherwise we'd
+ * not be able to detect longer sequential pattens - we'd skip one block
+ * but then fail to skip the next couple blocks even in a perfect
+ * sequential pattern. This ocillation might even prevent the OS
+ * read-ahead from kicking in.
+ */
+ prefetch->blockItems[PREFETCH_BLOCK_INDEX(prefetch->blockIndex)] = block;
+ prefetch->blockIndex++;
+
+ /*
+ * Check if the last couple blocks are in a sequential pattern. We look
+ * for a sequential pattern of PREFETCH_SEQ_PATTERN_BLOCKS (4 by default),
+ * so we look for patterns of 5 pages (40kB) including the new block.
+ *
+ * XXX Perhaps this should be tied to effective_io_concurrency somehow?
+ *
+ * XXX Could it be harmful that we read the queue backwards? Maybe memory
+ * prefetching works better for the forward direction?
+ */
+ for (int i = 1; i < PREFETCH_SEQ_PATTERN_BLOCKS; i++)
+ {
+ /*
+ * Are there enough requests to confirm a sequential pattern? We only
+ * consider something to be sequential after finding a sequence of
+ * PREFETCH_SEQ_PATTERN_BLOCKS blocks.
+ *
+ * FIXME Better to move this outside the loop.
+ */
+ if (prefetch->blockIndex < i)
+ return false;
+
+ /*
+ * Calculate index of the earlier block (we need to do -1 as we
+ * already incremented the index when adding the new block to the
+ * queue).
+ */
+ idx = PREFETCH_BLOCK_INDEX(prefetch->blockIndex - i - 1);
+
+ /*
+ * For a sequential pattern, blocks "k" step ago needs to have block
+ * number by "k" smaller compared to the current block.
+ */
+ if (prefetch->blockItems[idx] != (block - i))
+ return false;
+ }
+
+ return true;
+}
+
+/*
+ * index_prefetch_add_cache
+ * Add a block to the cache, check if it was recently prefetched.
+ *
+ * We don't want to prefetch blocks that we already prefetched recently. It's
+ * cheap but not free, and the overhead may have measurable impact.
+ *
+ * This check needs to be very cheap, even with fairly large caches (hundreds
+ * of entries, see PREFETCH_CACHE_SIZE).
+ *
+ * A simple queue would allow expiring the requests, but checking if it
+ * contains a particular block prefetched would be expensive (linear search).
+ * Another option would be a simple hash table, which has fast lookup but
+ * does not allow expiring entries cheaply.
+ *
+ * The cache does not need to be perfect, we can accept false
+ * positives/negatives, as long as the rate is reasonably low. We also need
+ * to expire entries, so that only "recent" requests are remembered.
+ *
+ * We use a hybrid cache that is organized as many small LRU caches. Each
+ * block is mapped to a particular LRU by hashing (so it's a bit like a
+ * hash table). The LRU caches are tiny (e.g. 8 entries), and the expiration
+ * happens at the level of a single LRU (by tracking only the 8 most recent requests).
+ *
+ * This allows quick searches and expiration, but with false negatives (when a
+ * particular LRU has too many collisions, we may evict entries that are more
+ * recent than some other LRU).
+ *
+ * For example, imagine 128 LRU caches, each with 8 entries - that's 1024
+ * prefetch request in total (these are the default parameters.)
+ *
+ * The recency is determined using a prefetch counter, incremented every
+ * time we end up prefetching a block. The counter is uint64, so it should
+ * not wrap (125 zebibytes, would take ~4 million years at 1GB/s).
+ *
+ * To check if a block was prefetched recently, we calculate hash(block),
+ * and then linearly search if the tiny LRU has entry for the same block
+ * and request less than PREFETCH_CACHE_SIZE ago.
+ *
+ * At the same time, we either update the entry (for the queried block) if
+ * found, or replace the oldest/empty entry.
+ *
+ * If the block was not recently prefetched (i.e. we want to prefetch it),
+ * we increment the counter.
+ *
+ * Returns true if the block was recently prefetched (and thus we don't
+ * need to prefetch it again), or false (should do a prefetch).
+ *
+ * XXX It's a bit confusing these return values are inverse compared to
+ * what index_prefetch_is_sequential does.
+ */
+static bool
+index_prefetch_add_cache(IndexPrefetch prefetch, BlockNumber block)
+{
+ PrefetchCacheEntry *entry;
+
+ /* map the block number the the LRU */
+ int lru = hash_uint32(block) % PREFETCH_LRU_COUNT;
+
+ /* age/index of the oldest entry in the LRU, to maybe use */
+ uint64 oldestRequest = PG_UINT64_MAX;
+ int oldestIndex = -1;
+
+ /*
+ * First add the block to the (tiny) top-level LRU cache and see if it's
+ * part of a sequential pattern. In this case we just ignore the block and
+ * don't prefetch it - we expect read-ahead to do a better job.
+ *
+ * XXX Maybe we should still add the block to the hybrid cache, in case we
+ * happen to access it later? That might help if we first scan a lot of
+ * the table sequentially, and then randomly. Not sure that's very likely
+ * with index access, though.
+ */
+ if (index_prefetch_is_sequential(prefetch, block))
+ {
+ prefetch->countSkipSequential++;
+ return true;
+ }
+
+ /*
+ * See if we recently prefetched this block - we simply scan the LRU
+ * linearly. While doing that, we also track the oldest entry, so that we
+ * know where to put the block if we don't find a matching entry.
+ */
+ for (int i = 0; i < PREFETCH_LRU_SIZE; i++)
+ {
+ entry = &prefetch->prefetchCache[lru * PREFETCH_LRU_SIZE + i];
+
+ /* Is this the oldest prefetch request in this LRU? */
+ if (entry->request < oldestRequest)
+ {
+ oldestRequest = entry->request;
+ oldestIndex = i;
+ }
+
+ /*
+ * If the entry is unused (identified by request being set to 0),
+ * we're done. Notice the field is uint64, so empty entry is
+ * guaranteed to be the oldest one.
+ */
+ if (entry->request == 0)
+ continue;
+
+ /* Is this entry for the same block as the current request? */
+ if (entry->block == block)
+ {
+ bool prefetched;
+
+ /*
+ * Is the old request sufficiently recent? If yes, we treat the
+ * block as already prefetched.
+ *
+ * XXX We do add the cache size to the request in order not to
+ * have issues with uint64 underflows.
+ */
+ prefetched = ((entry->request + PREFETCH_CACHE_SIZE) >= prefetch->prefetchReqNumber);
+
+ /* Update the request number. */
+ entry->request = ++prefetch->prefetchReqNumber;
+
+ prefetch->countSkipCached += (prefetched) ? 1 : 0;
+
+ return prefetched;
+ }
+ }
+
+ /*
+ * We didn't find the block in the LRU, so store it either in an empty
+ * entry, or in the "oldest" prefetch request in this LRU.
+ */
+ Assert((oldestIndex >= 0) && (oldestIndex < PREFETCH_LRU_SIZE));
+
+ /* FIXME do a nice macro */
+ entry = &prefetch->prefetchCache[lru * PREFETCH_LRU_SIZE + oldestIndex];
+
+ entry->block = block;
+ entry->request = ++prefetch->prefetchReqNumber;
+
+ /* not in the prefetch cache */
+ return false;
+}
+
+/*
+ * index_prefetch
+ * Prefetch the TID, unless it's sequential or recently prefetched.
+ *
+ * XXX Some ideas how to auto-tune the prefetching, so that unnecessary
+ * prefetching does not cause significant regressions (e.g. for nestloop
+ * with inner index scan). We could track number of rescans and number of
+ * items (TIDs) actually returned from the scan. Then we could calculate
+ * rows / rescan and use that to clamp prefetch target.
+ *
+ * That'd help with cases when a scan matches only very few rows, far less
+ * than the prefetchTarget, because the unnecessary prefetches are wasted
+ * I/O. Imagine a LIMIT on top of index scan, or something like that.
+ *
+ * Another option is to use the planner estimates - we know how many rows we're
+ * expecting to fetch (on average, assuming the estimates are reasonably
+ * accurate), so why not to use that?
+ *
+ * Of course, we could/should combine these two approaches.
+ *
+ * XXX The prefetching may interfere with the patch allowing us to evaluate
+ * conditions on the index tuple, in which case we may not need the heap
+ * tuple. Maybe if there's such filter, we should prefetch only pages that
+ * are not all-visible (and the same idea would also work for IOS), but
+ * it also makes the indexing a bit "aware" of the visibility stuff (which
+ * seems a somewhat wrong). Also, maybe we should consider the filter selectivity
+ * (if the index-only filter is expected to eliminate only few rows, then
+ * the vm check is pointless). Maybe this could/should be auto-tuning too,
+ * i.e. we could track how many heap tuples were needed after all, and then
+ * we would consider this when deciding whether to prefetch all-visible
+ * pages or not (matters only for regular index scans, not IOS).
+ *
+ * XXX Maybe we could/should also prefetch the next index block, e.g. stored
+ * in BTScanPosData.nextPage.
+ */
+static void
+index_prefetch(IndexScanDesc scan, ItemPointer tid, bool skip_all_visible)
+{
+ IndexPrefetch prefetch = scan->xs_prefetch;
+ BlockNumber block;
+
+ /*
+ * No heap relation means bitmap index scan, which does prefetching at the
+ * bitmap heap scan, so no prefetch here (we can't do it anyway, without
+ * the heap)
+ *
+ * XXX But in this case we should have prefetchMaxTarget=0, because in
+ * index_bebinscan_bitmap() we disable prefetching. So maybe we should
+ * just check that.
+ */
+ if (!prefetch)
+ return;
+
+ /*
+ * If we got here, prefetching is enabled and it's a node that supports
+ * prefetching (i.e. it can't be a bitmap index scan).
+ */
+ Assert(scan->heapRelation);
+
+ block = ItemPointerGetBlockNumber(tid);
+
+ /*
+ * When prefetching for IOS, we want to only prefetch pages that are not
+ * marked as all-visible (because not fetching all-visible pages is the
+ * point of IOS).
+ *
+ * XXX This is not great, because it releases the VM buffer for each TID
+ * we consider to prefetch. We should reuse that somehow, similar to the
+ * actual IOS code. Ideally, we should use the same ioss_VMBuffer (if
+ * we can propagate it here). Or at least do it for a bulk of prefetches,
+ * although that's not very useful - after the ramp-up we will prefetch
+ * the pages one by one anyway.
+ */
+ if (skip_all_visible)
+ {
+ bool all_visible;
+ Buffer vmbuffer = InvalidBuffer;
+
+ all_visible = VM_ALL_VISIBLE(scan->heapRelation,
+ block,
+ &vmbuffer);
+
+ if (vmbuffer != InvalidBuffer)
+ ReleaseBuffer(vmbuffer);
+
+ if (all_visible)
+ return;
+ }
+
+ /*
+ * Do not prefetch the same block over and over again,
+ *
+ * This happens e.g. for clustered or naturally correlated indexes (fkey
+ * to a sequence ID). It's not expensive (the block is in page cache
+ * already, so no I/O), but it's not free either.
+ */
+ if (!index_prefetch_add_cache(prefetch, block))
+ {
+ prefetch->countPrefetch++;
+
+ PrefetchBuffer(scan->heapRelation, MAIN_FORKNUM, block);
+ pgBufferUsage.blks_prefetches++;
+ }
+
+ prefetch->countAll++;
+}
+
+/* ----------------
+ * index_getnext_tid_prefetch - get the next TID from a scan
+ *
+ * The result is the next TID satisfying the scan keys,
+ * or NULL if no more matching tuples exist.
+ *
+ * FIXME not sure this handles xs_heapfetch correctly.
+ * ----------------
+ */
+ItemPointer
+index_getnext_tid_prefetch(IndexScanDesc scan, ScanDirection direction)
+{
+ IndexPrefetch prefetch = scan->xs_prefetch; /* for convenience */
+
+ /*
+ * If the prefetching is still active (i.e. enabled and we still
+ * haven't finished reading TIDs from the scan), read enough TIDs into
+ * the queue until we hit the current target.
+ */
+ if (PREFETCH_ACTIVE(prefetch))
+ {
+ /*
+ * Ramp up the prefetch distance incrementally.
+ *
+ * Intentionally done as first, before reading the TIDs into the
+ * queue, so that there's always at least one item. Otherwise we
+ * might get into a situation where we start with target=0 and no
+ * TIDs loaded.
+ */
+ prefetch->prefetchTarget = Min(prefetch->prefetchTarget + 1,
+ prefetch->prefetchMaxTarget);
+
+ /*
+ * Now read TIDs from the index until the queue is full (with
+ * respect to the current prefetch target).
+ */
+ while (!PREFETCH_FULL(prefetch))
+ {
+ ItemPointer tid;
+
+ /* Time to fetch the next TID from the index */
+ tid = index_getnext_tid(scan, direction);
+
+ /*
+ * If we're out of index entries, we're done (and we mark the
+ * the prefetcher as inactive).
+ */
+ if (tid == NULL)
+ {
+ prefetch->prefetchDone = true;
+ break;
+ }
+
+ Assert(ItemPointerEquals(tid, &scan->xs_heaptid));
+
+ prefetch->queueItems[PREFETCH_QUEUE_INDEX(prefetch->queueEnd)] = *tid;
+ prefetch->queueEnd++;
+
+ /*
+ * Issue the actuall prefetch requests for the new TID.
+ *
+ * XXX index_getnext_tid_prefetch is only called for IOS (for now),
+ * so skip prefetching of all-visible pages.
+ */
+ index_prefetch(scan, tid, true);
+ }
+ }
+
+ /*
+ * With prefetching enabled (even if we already finished reading
+ * all TIDs from the index scan), we need to return a TID from the
+ * queue. Otherwise, we just get the next TID from the scan
+ * directly.
+ */
+ if (PREFETCH_ENABLED(prefetch))
+ {
+ /* Did we reach the end of the scan and the queue is empty? */
+ if (PREFETCH_DONE(prefetch))
+ return NULL;
+
+ scan->xs_heaptid = prefetch->queueItems[PREFETCH_QUEUE_INDEX(prefetch->queueIndex)];
+ prefetch->queueIndex++;
+ }
+ else /* not prefetching, just do the regular work */
+ {
+ ItemPointer tid;
+
+ /* Time to fetch the next TID from the index */
+ tid = index_getnext_tid(scan, direction);
+
+ /* If we're out of index entries, we're done */
+ if (tid == NULL)
+ return NULL;
+
+ Assert(ItemPointerEquals(tid, &scan->xs_heaptid));
+ }
+
+ /* Return the TID of the tuple we found. */
+ return &scan->xs_heaptid;
+}
diff --git a/src/backend/commands/explain.c b/src/backend/commands/explain.c
index f1d71bc54e8..6810996edfd 100644
--- a/src/backend/commands/explain.c
+++ b/src/backend/commands/explain.c
@@ -3568,6 +3568,7 @@ show_buffer_usage(ExplainState *es, const BufferUsage *usage, bool planning)
!INSTR_TIME_IS_ZERO(usage->local_blk_write_time));
bool has_temp_timing = (!INSTR_TIME_IS_ZERO(usage->temp_blk_read_time) ||
!INSTR_TIME_IS_ZERO(usage->temp_blk_write_time));
+ bool has_prefetches = (usage->blks_prefetches > 0);
bool show_planning = (planning && (has_shared ||
has_local || has_temp ||
has_shared_timing ||
@@ -3679,6 +3680,23 @@ show_buffer_usage(ExplainState *es, const BufferUsage *usage, bool planning)
appendStringInfoChar(es->str, '\n');
}
+ /* As above, show only positive counter values. */
+ if (has_prefetches)
+ {
+ ExplainIndentText(es);
+ appendStringInfoString(es->str, "Prefetches:");
+
+ if (usage->blks_prefetches > 0)
+ appendStringInfo(es->str, " blocks=%lld",
+ (long long) usage->blks_prefetches);
+
+ if (usage->blks_prefetch_rounds > 0)
+ appendStringInfo(es->str, " rounds=%lld",
+ (long long) usage->blks_prefetch_rounds);
+
+ appendStringInfoChar(es->str, '\n');
+ }
+
if (show_planning)
es->indent--;
}
diff --git a/src/backend/executor/execIndexing.c b/src/backend/executor/execIndexing.c
index 384b39839a0..70a7b65323e 100644
--- a/src/backend/executor/execIndexing.c
+++ b/src/backend/executor/execIndexing.c
@@ -765,11 +765,15 @@ check_exclusion_or_unique_constraint(Relation heap, Relation index,
/*
* May have to restart scan from this point if a potential conflict is
* found.
+ *
+ * XXX Should this do index prefetch? Probably not worth it for unique
+ * constraints, I guess? Otherwise we should calculate prefetch_target
+ * just like in nodeIndexscan etc.
*/
retry:
conflict = false;
found_self = false;
- index_scan = index_beginscan(heap, index, &DirtySnapshot, indnkeyatts, 0);
+ index_scan = index_beginscan(heap, index, &DirtySnapshot, indnkeyatts, 0, 0);
index_rescan(index_scan, scankeys, indnkeyatts, NULL, 0);
while (index_getnext_slot(index_scan, ForwardScanDirection, existing_slot))
diff --git a/src/backend/executor/execReplication.c b/src/backend/executor/execReplication.c
index 81f27042bc4..91676ccff95 100644
--- a/src/backend/executor/execReplication.c
+++ b/src/backend/executor/execReplication.c
@@ -204,8 +204,13 @@ RelationFindReplTupleByIndex(Relation rel, Oid idxoid,
/* Build scan key. */
skey_attoff = build_replindex_scan_key(skey, rel, idxrel, searchslot);
- /* Start an index scan. */
- scan = index_beginscan(rel, idxrel, &snap, skey_attoff, 0);
+ /* Start an index scan.
+ *
+ * XXX Should this do index prefetching? We're looking for a single tuple,
+ * probably using a PK / UNIQUE index, so does not seem worth it. If we
+ * reconsider this, calclate prefetch_target like in nodeIndexscan.
+ */
+ scan = index_beginscan(rel, idxrel, &snap, skey_attoff, 0, 0);
retry:
found = false;
diff --git a/src/backend/executor/instrument.c b/src/backend/executor/instrument.c
index c383f34c066..0011d9f679c 100644
--- a/src/backend/executor/instrument.c
+++ b/src/backend/executor/instrument.c
@@ -235,6 +235,8 @@ BufferUsageAdd(BufferUsage *dst, const BufferUsage *add)
dst->local_blks_written += add->local_blks_written;
dst->temp_blks_read += add->temp_blks_read;
dst->temp_blks_written += add->temp_blks_written;
+ dst->blks_prefetch_rounds += add->blks_prefetch_rounds;
+ dst->blks_prefetches += add->blks_prefetches;
INSTR_TIME_ADD(dst->shared_blk_read_time, add->shared_blk_read_time);
INSTR_TIME_ADD(dst->shared_blk_write_time, add->shared_blk_write_time);
INSTR_TIME_ADD(dst->local_blk_read_time, add->local_blk_read_time);
@@ -259,6 +261,8 @@ BufferUsageAccumDiff(BufferUsage *dst,
dst->local_blks_written += add->local_blks_written - sub->local_blks_written;
dst->temp_blks_read += add->temp_blks_read - sub->temp_blks_read;
dst->temp_blks_written += add->temp_blks_written - sub->temp_blks_written;
+ dst->blks_prefetches += add->blks_prefetches - sub->blks_prefetches;
+ dst->blks_prefetch_rounds += add->blks_prefetch_rounds - sub->blks_prefetch_rounds;
INSTR_TIME_ACCUM_DIFF(dst->shared_blk_read_time,
add->shared_blk_read_time, sub->shared_blk_read_time);
INSTR_TIME_ACCUM_DIFF(dst->shared_blk_write_time,
diff --git a/src/backend/executor/nodeIndexonlyscan.c b/src/backend/executor/nodeIndexonlyscan.c
index f1db35665c8..855afd5ba76 100644
--- a/src/backend/executor/nodeIndexonlyscan.c
+++ b/src/backend/executor/nodeIndexonlyscan.c
@@ -43,7 +43,7 @@
#include "storage/predicate.h"
#include "utils/memutils.h"
#include "utils/rel.h"
-
+#include "utils/spccache.h"
static TupleTableSlot *IndexOnlyNext(IndexOnlyScanState *node);
static void StoreIndexTuple(TupleTableSlot *slot, IndexTuple itup,
@@ -65,6 +65,7 @@ IndexOnlyNext(IndexOnlyScanState *node)
IndexScanDesc scandesc;
TupleTableSlot *slot;
ItemPointer tid;
+ Relation heapRel = node->ss.ss_currentRelation;
/*
* extract necessary information from index scan node
@@ -83,16 +84,41 @@ IndexOnlyNext(IndexOnlyScanState *node)
if (scandesc == NULL)
{
+ int prefetch_max;
+
+ /*
+ * Determine number of heap pages to prefetch for this index. This is
+ * essentially just effective_io_concurrency for the table (or the
+ * tablespace it's in).
+ *
+ * XXX Should this also look at plan.plan_rows and maybe cap the target
+ * to that? Pointless to prefetch more than we expect to use. Or maybe
+ * just reset to that value during prefetching, after reading the next
+ * index page (or rather after rescan)?
+ *
+ * XXX Maybe reduce the value with parallel workers?
+ */
+ prefetch_max = Min(get_tablespace_io_concurrency(heapRel->rd_rel->reltablespace),
+ node->ss.ps.plan->plan_rows);
+
/*
* We reach here if the index only scan is not parallel, or if we're
* serially executing an index only scan that was planned to be
* parallel.
+ *
+ * XXX Maybe we should enable prefetching, but prefetch only pages that
+ * are not all-visible (but checking that from the index code seems like
+ * a violation of layering etc).
+ *
+ * XXX This might lead to IOS being slower than plain index scan, if the
+ * table has a lot of pages that need recheck.
*/
scandesc = index_beginscan(node->ss.ss_currentRelation,
node->ioss_RelationDesc,
estate->es_snapshot,
node->ioss_NumScanKeys,
- node->ioss_NumOrderByKeys);
+ node->ioss_NumOrderByKeys,
+ prefetch_max);
node->ioss_ScanDesc = scandesc;
@@ -116,7 +142,7 @@ IndexOnlyNext(IndexOnlyScanState *node)
/*
* OK, now that we have what we need, fetch the next tuple.
*/
- while ((tid = index_getnext_tid(scandesc, direction)) != NULL)
+ while ((tid = index_getnext_tid_prefetch(scandesc, direction)) != NULL)
{
bool tuple_from_heap = false;
@@ -646,6 +672,24 @@ ExecIndexOnlyScanInitializeDSM(IndexOnlyScanState *node,
{
EState *estate = node->ss.ps.state;
ParallelIndexScanDesc piscan;
+ Relation heapRel = node->ss.ss_currentRelation;
+ int prefetch_max;
+
+ /*
+ * Determine number of heap pages to prefetch for this index. This is
+ * essentially just effective_io_concurrency for the table (or the
+ * tablespace it's in).
+ *
+ * XXX Should this also look at plan.plan_rows and maybe cap the target
+ * to that? Pointless to prefetch more than we expect to use. Or maybe
+ * just reset to that value during prefetching, after reading the next
+ * index page (or rather after rescan)?
+ *
+ * XXX Maybe reduce the value with parallel workers?
+ */
+
+ prefetch_max = Min(get_tablespace_io_concurrency(heapRel->rd_rel->reltablespace),
+ node->ss.ps.plan->plan_rows);
piscan = shm_toc_allocate(pcxt->toc, node->ioss_PscanLen);
index_parallelscan_initialize(node->ss.ss_currentRelation,
@@ -658,7 +702,8 @@ ExecIndexOnlyScanInitializeDSM(IndexOnlyScanState *node,
node->ioss_RelationDesc,
node->ioss_NumScanKeys,
node->ioss_NumOrderByKeys,
- piscan);
+ piscan,
+ prefetch_max);
node->ioss_ScanDesc->xs_want_itup = true;
node->ioss_VMBuffer = InvalidBuffer;
@@ -696,6 +741,23 @@ ExecIndexOnlyScanInitializeWorker(IndexOnlyScanState *node,
ParallelWorkerContext *pwcxt)
{
ParallelIndexScanDesc piscan;
+ Relation heapRel = node->ss.ss_currentRelation;
+ int prefetch_max;
+
+ /*
+ * Determine number of heap pages to prefetch for this index. This is
+ * essentially just effective_io_concurrency for the table (or the
+ * tablespace it's in).
+ *
+ * XXX Should this also look at plan.plan_rows and maybe cap the target
+ * to that? Pointless to prefetch more than we expect to use. Or maybe
+ * just reset to that value during prefetching, after reading the next
+ * index page (or rather after rescan)?
+ *
+ * XXX Maybe reduce the value with parallel workers?
+ */
+ prefetch_max = Min(get_tablespace_io_concurrency(heapRel->rd_rel->reltablespace),
+ node->ss.ps.plan->plan_rows);
piscan = shm_toc_lookup(pwcxt->toc, node->ss.ps.plan->plan_node_id, false);
node->ioss_ScanDesc =
@@ -703,7 +765,8 @@ ExecIndexOnlyScanInitializeWorker(IndexOnlyScanState *node,
node->ioss_RelationDesc,
node->ioss_NumScanKeys,
node->ioss_NumOrderByKeys,
- piscan);
+ piscan,
+ prefetch_max);
node->ioss_ScanDesc->xs_want_itup = true;
/*
diff --git a/src/backend/executor/nodeIndexscan.c b/src/backend/executor/nodeIndexscan.c
index 14b9c00217a..a5f5394ef49 100644
--- a/src/backend/executor/nodeIndexscan.c
+++ b/src/backend/executor/nodeIndexscan.c
@@ -43,6 +43,7 @@
#include "utils/lsyscache.h"
#include "utils/memutils.h"
#include "utils/rel.h"
+#include "utils/spccache.h"
/*
* When an ordering operator is used, tuples fetched from the index that
@@ -85,6 +86,7 @@ IndexNext(IndexScanState *node)
ScanDirection direction;
IndexScanDesc scandesc;
TupleTableSlot *slot;
+ Relation heapRel = node->ss.ss_currentRelation;
/*
* extract necessary information from index scan node
@@ -103,6 +105,21 @@ IndexNext(IndexScanState *node)
if (scandesc == NULL)
{
+ int prefetch_max;
+
+ /*
+ * Determine number of heap pages to prefetch for this index scan. This
+ * is essentially just effective_io_concurrency for the table (or the
+ * tablespace it's in).
+ *
+ * XXX Should this also look at plan.plan_rows and maybe cap the target
+ * to that? Pointless to prefetch more than we expect to use. Or maybe
+ * just reset to that value during prefetching, after reading the next
+ * index page (or rather after rescan)?
+ */
+ prefetch_max = Min(get_tablespace_io_concurrency(heapRel->rd_rel->reltablespace),
+ node->ss.ps.plan->plan_rows);
+
/*
* We reach here if the index scan is not parallel, or if we're
* serially executing an index scan that was planned to be parallel.
@@ -111,7 +128,8 @@ IndexNext(IndexScanState *node)
node->iss_RelationDesc,
estate->es_snapshot,
node->iss_NumScanKeys,
- node->iss_NumOrderByKeys);
+ node->iss_NumOrderByKeys,
+ prefetch_max);
node->iss_ScanDesc = scandesc;
@@ -177,6 +195,7 @@ IndexNextWithReorder(IndexScanState *node)
Datum *lastfetched_vals;
bool *lastfetched_nulls;
int cmp;
+ Relation heapRel = node->ss.ss_currentRelation;
estate = node->ss.ps.state;
@@ -198,6 +217,21 @@ IndexNextWithReorder(IndexScanState *node)
if (scandesc == NULL)
{
+ int prefetch_max;
+
+ /*
+ * Determine number of heap pages to prefetch for this index. This is
+ * essentially just effective_io_concurrency for the table (or the
+ * tablespace it's in).
+ *
+ * XXX Should this also look at plan.plan_rows and maybe cap the target
+ * to that? Pointless to prefetch more than we expect to use. Or maybe
+ * just reset to that value during prefetching, after reading the next
+ * index page (or rather after rescan)?
+ */
+ prefetch_max = Min(get_tablespace_io_concurrency(heapRel->rd_rel->reltablespace),
+ node->ss.ps.plan->plan_rows);
+
/*
* We reach here if the index scan is not parallel, or if we're
* serially executing an index scan that was planned to be parallel.
@@ -206,7 +240,8 @@ IndexNextWithReorder(IndexScanState *node)
node->iss_RelationDesc,
estate->es_snapshot,
node->iss_NumScanKeys,
- node->iss_NumOrderByKeys);
+ node->iss_NumOrderByKeys,
+ prefetch_max);
node->iss_ScanDesc = scandesc;
@@ -1662,6 +1697,24 @@ ExecIndexScanInitializeDSM(IndexScanState *node,
{
EState *estate = node->ss.ps.state;
ParallelIndexScanDesc piscan;
+ Relation heapRel = node->ss.ss_currentRelation;
+ int prefetch_max;
+
+ /*
+ * Determine number of heap pages to prefetch for this index. This is
+ * essentially just effective_io_concurrency for the table (or the
+ * tablespace it's in).
+ *
+ * XXX Should this also look at plan.plan_rows and maybe cap the target
+ * to that? Pointless to prefetch more than we expect to use. Or maybe
+ * just reset to that value during prefetching, after reading the next
+ * index page (or rather after rescan)?
+ *
+ * XXX Maybe reduce the value with parallel workers?
+ */
+
+ prefetch_max = Min(get_tablespace_io_concurrency(heapRel->rd_rel->reltablespace),
+ node->ss.ps.plan->plan_rows);
piscan = shm_toc_allocate(pcxt->toc, node->iss_PscanLen);
index_parallelscan_initialize(node->ss.ss_currentRelation,
@@ -1674,7 +1727,8 @@ ExecIndexScanInitializeDSM(IndexScanState *node,
node->iss_RelationDesc,
node->iss_NumScanKeys,
node->iss_NumOrderByKeys,
- piscan);
+ piscan,
+ prefetch_max);
/*
* If no run-time keys to calculate or they are ready, go ahead and pass
@@ -1710,6 +1764,23 @@ ExecIndexScanInitializeWorker(IndexScanState *node,
ParallelWorkerContext *pwcxt)
{
ParallelIndexScanDesc piscan;
+ Relation heapRel = node->ss.ss_currentRelation;
+ int prefetch_max;
+
+ /*
+ * Determine number of heap pages to prefetch for this index. This is
+ * essentially just effective_io_concurrency for the table (or the
+ * tablespace it's in).
+ *
+ * XXX Should this also look at plan.plan_rows and maybe cap the target
+ * to that? Pointless to prefetch more than we expect to use. Or maybe
+ * just reset to that value during prefetching, after reading the next
+ * index page (or rather after rescan)?
+ *
+ * XXX Maybe reduce the value with parallel workers?
+ */
+ prefetch_max = Min(get_tablespace_io_concurrency(heapRel->rd_rel->reltablespace),
+ node->ss.ps.plan->plan_rows);
piscan = shm_toc_lookup(pwcxt->toc, node->ss.ps.plan->plan_node_id, false);
node->iss_ScanDesc =
@@ -1717,7 +1788,8 @@ ExecIndexScanInitializeWorker(IndexScanState *node,
node->iss_RelationDesc,
node->iss_NumScanKeys,
node->iss_NumOrderByKeys,
- piscan);
+ piscan,
+ prefetch_max);
/*
* If no run-time keys to calculate or they are ready, go ahead and pass
diff --git a/src/backend/utils/adt/selfuncs.c b/src/backend/utils/adt/selfuncs.c
index 35c9e3c86fe..9447910f103 100644
--- a/src/backend/utils/adt/selfuncs.c
+++ b/src/backend/utils/adt/selfuncs.c
@@ -6284,9 +6284,10 @@ get_actual_variable_endpoint(Relation heapRel,
InitNonVacuumableSnapshot(SnapshotNonVacuumable,
GlobalVisTestFor(heapRel));
+ /* XXX Maybe should do prefetching using the default prefetch parameters? */
index_scan = index_beginscan(heapRel, indexRel,
&SnapshotNonVacuumable,
- 1, 0);
+ 1, 0, 0);
/* Set it up for index-only scan */
index_scan->xs_want_itup = true;
index_rescan(index_scan, scankeys, 1, NULL, 0);
diff --git a/src/include/access/genam.h b/src/include/access/genam.h
index f31dec6ee0f..e7b915d6ce7 100644
--- a/src/include/access/genam.h
+++ b/src/include/access/genam.h
@@ -17,6 +17,7 @@
#include "access/sdir.h"
#include "access/skey.h"
#include "nodes/tidbitmap.h"
+#include "storage/bufmgr.h"
#include "storage/lockdefs.h"
#include "utils/relcache.h"
#include "utils/snapshot.h"
@@ -152,7 +153,8 @@ extern bool index_insert(Relation indexRelation,
extern IndexScanDesc index_beginscan(Relation heapRelation,
Relation indexRelation,
Snapshot snapshot,
- int nkeys, int norderbys);
+ int nkeys, int norderbys,
+ int prefetch_max);
extern IndexScanDesc index_beginscan_bitmap(Relation indexRelation,
Snapshot snapshot,
int nkeys);
@@ -169,9 +171,12 @@ extern void index_parallelscan_initialize(Relation heapRelation,
extern void index_parallelrescan(IndexScanDesc scan);
extern IndexScanDesc index_beginscan_parallel(Relation heaprel,
Relation indexrel, int nkeys, int norderbys,
- ParallelIndexScanDesc pscan);
+ ParallelIndexScanDesc pscan,
+ int prefetch_max);
extern ItemPointer index_getnext_tid(IndexScanDesc scan,
ScanDirection direction);
+extern ItemPointer index_getnext_tid_prefetch(IndexScanDesc scan,
+ ScanDirection direction);
struct TupleTableSlot;
extern bool index_fetch_heap(IndexScanDesc scan, struct TupleTableSlot *slot);
extern bool index_getnext_slot(IndexScanDesc scan, ScanDirection direction,
@@ -230,4 +235,96 @@ extern HeapTuple systable_getnext_ordered(SysScanDesc sysscan,
ScanDirection direction);
extern void systable_endscan_ordered(SysScanDesc sysscan);
+/*
+ * Cache of recently prefetched blocks, organized as a hash table of
+ * small LRU caches. Doesn't need to be perfectly accurate, but we
+ * aim to make false positives/negatives reasonably low.
+ */
+typedef struct PrefetchCacheEntry {
+ BlockNumber block;
+ uint64 request;
+} PrefetchCacheEntry;
+
+/*
+ * Size of the cache of recently prefetched blocks - shouldn't be too
+ * small or too large. 1024 seems about right, it covers ~8MB of data.
+ * It's somewhat arbitrary, there's no particular formula saying it
+ * should not be higher/lower.
+ *
+ * The cache is structured as an array of small LRU caches, so the total
+ * size needs to be a multiple of LRU size. The LRU should be tiny to
+ * keep linear search cheap enough.
+ *
+ * XXX Maybe we could consider effective_cache_size or something?
+ */
+#define PREFETCH_LRU_SIZE 8
+#define PREFETCH_LRU_COUNT 128
+#define PREFETCH_CACHE_SIZE (PREFETCH_LRU_SIZE * PREFETCH_LRU_COUNT)
+
+/*
+ * Used to detect sequential patterns (and disable prefetching).
+ */
+#define PREFETCH_QUEUE_HISTORY 8
+#define PREFETCH_SEQ_PATTERN_BLOCKS 4
+
+
+typedef struct IndexPrefetchData
+{
+ /*
+ * XXX We need to disable this in some cases (e.g. when using index-only
+ * scans, we don't want to prefetch pages). Or maybe we should prefetch
+ * only pages that are not all-visible, that'd be even better.
+ */
+ int prefetchTarget; /* how far we should be prefetching */
+ int prefetchMaxTarget; /* maximum prefetching distance */
+ int prefetchReset; /* reset to this distance on rescan */
+ bool prefetchDone; /* did we get all TIDs from the index? */
+
+ /* runtime statistics */
+ uint64 countAll; /* all prefetch requests */
+ uint64 countPrefetch; /* actual prefetches */
+ uint64 countSkipSequential;
+ uint64 countSkipCached;
+
+ /*
+ * Queue of TIDs to prefetch.
+ *
+ * XXX Sizing for MAX_IO_CONCURRENCY may be overkill, but it seems simpler
+ * than dynamically adjusting for custom values.
+ */
+ ItemPointerData queueItems[MAX_IO_CONCURRENCY];
+ uint64 queueIndex; /* next TID to prefetch */
+ uint64 queueStart; /* first valid TID in queue */
+ uint64 queueEnd; /* first invalid (empty) TID in queue */
+
+ /*
+ * A couple of last prefetched blocks, used to check for certain access
+ * pattern and skip prefetching - e.g. for sequential access).
+ *
+ * XXX Separate from the main queue, because we only want to compare the
+ * block numbers, not the whole TID. In sequential access it's likely we
+ * read many items from each page, and we don't want to check many items
+ * (as that is much more expensive).
+ */
+ BlockNumber blockItems[PREFETCH_QUEUE_HISTORY];
+ uint64 blockIndex; /* index in the block (points to the first
+ * empty entry)*/
+
+ /*
+ * Cache of recently prefetched blocks, organized as a hash table of
+ * small LRU caches.
+ */
+ uint64 prefetchReqNumber;
+ PrefetchCacheEntry prefetchCache[PREFETCH_CACHE_SIZE];
+
+} IndexPrefetchData;
+
+#define PREFETCH_QUEUE_INDEX(a) ((a) % (MAX_IO_CONCURRENCY))
+#define PREFETCH_QUEUE_EMPTY(p) ((p)->queueEnd == (p)->queueIndex)
+#define PREFETCH_ENABLED(p) ((p) && ((p)->prefetchMaxTarget > 0))
+#define PREFETCH_FULL(p) ((p)->queueEnd - (p)->queueIndex == (p)->prefetchTarget)
+#define PREFETCH_DONE(p) ((p) && ((p)->prefetchDone && PREFETCH_QUEUE_EMPTY(p)))
+#define PREFETCH_ACTIVE(p) (PREFETCH_ENABLED(p) && !(p)->prefetchDone)
+#define PREFETCH_BLOCK_INDEX(v) ((v) % PREFETCH_QUEUE_HISTORY)
+
#endif /* GENAM_H */
diff --git a/src/include/access/relscan.h b/src/include/access/relscan.h
index d03360eac04..231a30ecc46 100644
--- a/src/include/access/relscan.h
+++ b/src/include/access/relscan.h
@@ -106,6 +106,12 @@ typedef struct IndexFetchTableData
Relation rel;
} IndexFetchTableData;
+/*
+ * Forward declarations, defined in genam.h.
+ */
+typedef struct IndexPrefetchData IndexPrefetchData;
+typedef struct IndexPrefetchData *IndexPrefetch;
+
/*
* We use the same IndexScanDescData structure for both amgettuple-based
* and amgetbitmap-based index scans. Some fields are only relevant in
@@ -162,6 +168,9 @@ typedef struct IndexScanDescData
bool *xs_orderbynulls;
bool xs_recheckorderby;
+ /* prefetching state (or NULL if disabled for this scan) */
+ IndexPrefetchData *xs_prefetch;
+
/* parallel index scan information, in shared memory */
struct ParallelIndexScanDescData *parallel_scan;
} IndexScanDescData;
diff --git a/src/include/executor/instrument.h b/src/include/executor/instrument.h
index d5d69941c52..f53fb4a1e51 100644
--- a/src/include/executor/instrument.h
+++ b/src/include/executor/instrument.h
@@ -33,6 +33,8 @@ typedef struct BufferUsage
int64 local_blks_written; /* # of local disk blocks written */
int64 temp_blks_read; /* # of temp blocks read */
int64 temp_blks_written; /* # of temp blocks written */
+ int64 blks_prefetch_rounds; /* # of prefetch rounds */
+ int64 blks_prefetches; /* # of buffers prefetched */
instr_time shared_blk_read_time; /* time spent reading shared blocks */
instr_time shared_blk_write_time; /* time spent writing shared blocks */
instr_time local_blk_read_time; /* time spent reading local blocks */
--
2.42.0
[text/x-patch] v20231124-0002-rely-on-PrefetchBuffer-instead-of-custom-c.patch (22.3K, 3-v20231124-0002-rely-on-PrefetchBuffer-instead-of-custom-c.patch)
download | inline diff:
From a5a897a6b77b9db99186092060d55b34491acbf2 Mon Sep 17 00:00:00 2001
From: Tomas Vondra <[email protected]>
Date: Sat, 18 Nov 2023 00:32:33 +0100
Subject: [PATCH v20231124 2/7] rely on PrefetchBuffer instead of custom cache
Instead of maintaining a custom cache of recently prefetched blocks,
rely on PrefetchBuffer doing the right thing. This only checks shared
buffers, though, there's no attempt to determine if block is in page
cache. However, it's a shared cache, not restricted to a single process.
---
src/backend/access/index/indexam.c | 400 +++--------------------
src/backend/executor/nodeIndexonlyscan.c | 8 +-
src/include/access/genam.h | 53 ---
src/include/access/relscan.h | 1 +
4 files changed, 52 insertions(+), 410 deletions(-)
diff --git a/src/backend/access/index/indexam.c b/src/backend/access/index/indexam.c
index 51feece527a..54a704338f1 100644
--- a/src/backend/access/index/indexam.c
+++ b/src/backend/access/index/indexam.c
@@ -112,6 +112,8 @@ static IndexScanDesc index_beginscan_internal(Relation indexRelation,
ParallelIndexScanDesc pscan, bool temp_snap,
int prefetch_max);
+static void index_prefetch_tids(IndexScanDesc scan, ScanDirection direction);
+static ItemPointer index_prefetch_get_tid(IndexScanDesc scan, ScanDirection direction);
static void index_prefetch(IndexScanDesc scan, ItemPointer tid, bool skip_all_visible);
@@ -313,6 +315,7 @@ index_beginscan_internal(Relation indexRelation,
/* Initialize information for parallel scan. */
scan->parallel_scan = pscan;
scan->xs_temp_snap = temp_snap;
+ scan->indexonly = false;
/*
* With prefetching requested, initialize the prefetcher state.
@@ -608,8 +611,8 @@ index_beginscan_parallel(Relation heaprel, Relation indexrel, int nkeys,
* or NULL if no more matching tuples exist.
* ----------------
*/
-ItemPointer
-index_getnext_tid(IndexScanDesc scan, ScanDirection direction)
+static ItemPointer
+index_getnext_tid_internal(IndexScanDesc scan, ScanDirection direction)
{
bool found;
@@ -710,95 +713,23 @@ index_fetch_heap(IndexScanDesc scan, TupleTableSlot *slot)
bool
index_getnext_slot(IndexScanDesc scan, ScanDirection direction, TupleTableSlot *slot)
{
- IndexPrefetch prefetch = scan->xs_prefetch; /* for convenience */
-
for (;;)
{
- /*
- * If the prefetching is still active (i.e. enabled and we still
- * haven't finished reading TIDs from the scan), read enough TIDs into
- * the queue until we hit the current target.
- */
- if (PREFETCH_ACTIVE(prefetch))
- {
- /*
- * Ramp up the prefetch distance incrementally.
- *
- * Intentionally done as first, before reading the TIDs into the
- * queue, so that there's always at least one item. Otherwise we
- * might get into a situation where we start with target=0 and no
- * TIDs loaded.
- */
- prefetch->prefetchTarget = Min(prefetch->prefetchTarget + 1,
- prefetch->prefetchMaxTarget);
-
- /*
- * Now read TIDs from the index until the queue is full (with
- * respect to the current prefetch target).
- */
- while (!PREFETCH_FULL(prefetch))
- {
- ItemPointer tid;
-
- /* Time to fetch the next TID from the index */
- tid = index_getnext_tid(scan, direction);
-
- /*
- * If we're out of index entries, we're done (and we mark the
- * the prefetcher as inactive).
- */
- if (tid == NULL)
- {
- prefetch->prefetchDone = true;
- break;
- }
-
- Assert(ItemPointerEquals(tid, &scan->xs_heaptid));
-
- prefetch->queueItems[PREFETCH_QUEUE_INDEX(prefetch->queueEnd)] = *tid;
- prefetch->queueEnd++;
-
- /*
- * Issue the actuall prefetch requests for the new TID.
- *
- * FIXME For IOS, this should prefetch only pages that are not
- * fully visible.
- */
- index_prefetch(scan, tid, false);
- }
- }
+ /* Do prefetching (if requested/enabled). */
+ index_prefetch_tids(scan, direction);
if (!scan->xs_heap_continue)
{
- /*
- * With prefetching enabled (even if we already finished reading
- * all TIDs from the index scan), we need to return a TID from the
- * queue. Otherwise, we just get the next TID from the scan
- * directly.
- */
- if (PREFETCH_ENABLED(prefetch))
- {
- /* Did we reach the end of the scan and the queue is empty? */
- if (PREFETCH_DONE(prefetch))
- break;
-
- scan->xs_heaptid = prefetch->queueItems[PREFETCH_QUEUE_INDEX(prefetch->queueIndex)];
- prefetch->queueIndex++;
- }
- else /* not prefetching, just do the regular work */
- {
- ItemPointer tid;
-
- /* Time to fetch the next TID from the index */
- tid = index_getnext_tid(scan, direction);
+ ItemPointer tid;
- /* If we're out of index entries, we're done */
- if (tid == NULL)
- break;
+ /* Time to fetch the next TID from the index */
+ tid = index_prefetch_get_tid(scan, direction);
- Assert(ItemPointerEquals(tid, &scan->xs_heaptid));
- }
+ /* If we're out of index entries, we're done */
+ if (tid == NULL)
+ break;
+ Assert(ItemPointerEquals(tid, &scan->xs_heaptid));
}
/*
@@ -1151,267 +1082,6 @@ index_opclass_options(Relation indrel, AttrNumber attnum, Datum attoptions,
return build_local_reloptions(&relopts, attoptions, validate);
}
-/*
- * index_prefetch_is_sequential
- * Track the block number and check if the I/O pattern is sequential,
- * or if the same block was just prefetched.
- *
- * Prefetching is cheap, but for some access patterns the benefits are small
- * compared to the extra overhead. In particular, for sequential access the
- * read-ahead performed by the OS is very effective/efficient. Doing more
- * prefetching is just increasing the costs.
- *
- * This tries to identify simple sequential patterns, so that we can skip
- * the prefetching request. This is implemented by having a small queue
- * of block numbers, and checking it before prefetching another block.
- *
- * We look at the preceding PREFETCH_SEQ_PATTERN_BLOCKS blocks, and see if
- * they are sequential. We also check if the block is the same as the last
- * request (which is not sequential).
- *
- * Note that the main prefetch queue is not really useful for this, as it
- * stores TIDs while we care about block numbers. Consider a sorted table,
- * with a perfectly sequential pattern when accessed through an index. Each
- * heap page may have dozens of TIDs, but we need to check block numbers.
- * We could keep enough TIDs to cover enough blocks, but then we also need
- * to walk those when checking the pattern (in hot path).
- *
- * So instead, we maintain a small separate queue of block numbers, and we use
- * this instead.
- *
- * Returns true if the block is in a sequential pattern (and so should not be
- * prefetched), or false (not sequential, should be prefetched).
- *
- * XXX The name is a bit misleading, as it also adds the block number to the
- * block queue and checks if the block is the same as the last one (which
- * does not require a sequential pattern).
- */
-static bool
-index_prefetch_is_sequential(IndexPrefetch prefetch, BlockNumber block)
-{
- int idx;
-
- /*
- * If the block queue is empty, just store the block and we're done (it's
- * neither a sequential pattern, neither recently prefetched block).
- */
- if (prefetch->blockIndex == 0)
- {
- prefetch->blockItems[PREFETCH_BLOCK_INDEX(prefetch->blockIndex)] = block;
- prefetch->blockIndex++;
- return false;
- }
-
- /*
- * Check if it's the same as the immediately preceding block. We don't
- * want to prefetch the same block over and over (which would happen for
- * well correlated indexes).
- *
- * In principle we could rely on index_prefetch_add_cache doing this using
- * the full cache, but this check is much cheaper and we need to look at
- * the preceding block anyway, so we just do it.
- *
- * XXX Notice we haven't added the block to the block queue yet, and there
- * is a preceding block (i.e. blockIndex-1 is valid).
- */
- if (prefetch->blockItems[PREFETCH_BLOCK_INDEX(prefetch->blockIndex - 1)] == block)
- return true;
-
- /*
- * Add the block number to the queue.
- *
- * We do this before checking if the pattern, because we want to know
- * about the block even if we end up skipping the prefetch. Otherwise we'd
- * not be able to detect longer sequential pattens - we'd skip one block
- * but then fail to skip the next couple blocks even in a perfect
- * sequential pattern. This ocillation might even prevent the OS
- * read-ahead from kicking in.
- */
- prefetch->blockItems[PREFETCH_BLOCK_INDEX(prefetch->blockIndex)] = block;
- prefetch->blockIndex++;
-
- /*
- * Check if the last couple blocks are in a sequential pattern. We look
- * for a sequential pattern of PREFETCH_SEQ_PATTERN_BLOCKS (4 by default),
- * so we look for patterns of 5 pages (40kB) including the new block.
- *
- * XXX Perhaps this should be tied to effective_io_concurrency somehow?
- *
- * XXX Could it be harmful that we read the queue backwards? Maybe memory
- * prefetching works better for the forward direction?
- */
- for (int i = 1; i < PREFETCH_SEQ_PATTERN_BLOCKS; i++)
- {
- /*
- * Are there enough requests to confirm a sequential pattern? We only
- * consider something to be sequential after finding a sequence of
- * PREFETCH_SEQ_PATTERN_BLOCKS blocks.
- *
- * FIXME Better to move this outside the loop.
- */
- if (prefetch->blockIndex < i)
- return false;
-
- /*
- * Calculate index of the earlier block (we need to do -1 as we
- * already incremented the index when adding the new block to the
- * queue).
- */
- idx = PREFETCH_BLOCK_INDEX(prefetch->blockIndex - i - 1);
-
- /*
- * For a sequential pattern, blocks "k" step ago needs to have block
- * number by "k" smaller compared to the current block.
- */
- if (prefetch->blockItems[idx] != (block - i))
- return false;
- }
-
- return true;
-}
-
-/*
- * index_prefetch_add_cache
- * Add a block to the cache, check if it was recently prefetched.
- *
- * We don't want to prefetch blocks that we already prefetched recently. It's
- * cheap but not free, and the overhead may have measurable impact.
- *
- * This check needs to be very cheap, even with fairly large caches (hundreds
- * of entries, see PREFETCH_CACHE_SIZE).
- *
- * A simple queue would allow expiring the requests, but checking if it
- * contains a particular block prefetched would be expensive (linear search).
- * Another option would be a simple hash table, which has fast lookup but
- * does not allow expiring entries cheaply.
- *
- * The cache does not need to be perfect, we can accept false
- * positives/negatives, as long as the rate is reasonably low. We also need
- * to expire entries, so that only "recent" requests are remembered.
- *
- * We use a hybrid cache that is organized as many small LRU caches. Each
- * block is mapped to a particular LRU by hashing (so it's a bit like a
- * hash table). The LRU caches are tiny (e.g. 8 entries), and the expiration
- * happens at the level of a single LRU (by tracking only the 8 most recent requests).
- *
- * This allows quick searches and expiration, but with false negatives (when a
- * particular LRU has too many collisions, we may evict entries that are more
- * recent than some other LRU).
- *
- * For example, imagine 128 LRU caches, each with 8 entries - that's 1024
- * prefetch request in total (these are the default parameters.)
- *
- * The recency is determined using a prefetch counter, incremented every
- * time we end up prefetching a block. The counter is uint64, so it should
- * not wrap (125 zebibytes, would take ~4 million years at 1GB/s).
- *
- * To check if a block was prefetched recently, we calculate hash(block),
- * and then linearly search if the tiny LRU has entry for the same block
- * and request less than PREFETCH_CACHE_SIZE ago.
- *
- * At the same time, we either update the entry (for the queried block) if
- * found, or replace the oldest/empty entry.
- *
- * If the block was not recently prefetched (i.e. we want to prefetch it),
- * we increment the counter.
- *
- * Returns true if the block was recently prefetched (and thus we don't
- * need to prefetch it again), or false (should do a prefetch).
- *
- * XXX It's a bit confusing these return values are inverse compared to
- * what index_prefetch_is_sequential does.
- */
-static bool
-index_prefetch_add_cache(IndexPrefetch prefetch, BlockNumber block)
-{
- PrefetchCacheEntry *entry;
-
- /* map the block number the the LRU */
- int lru = hash_uint32(block) % PREFETCH_LRU_COUNT;
-
- /* age/index of the oldest entry in the LRU, to maybe use */
- uint64 oldestRequest = PG_UINT64_MAX;
- int oldestIndex = -1;
-
- /*
- * First add the block to the (tiny) top-level LRU cache and see if it's
- * part of a sequential pattern. In this case we just ignore the block and
- * don't prefetch it - we expect read-ahead to do a better job.
- *
- * XXX Maybe we should still add the block to the hybrid cache, in case we
- * happen to access it later? That might help if we first scan a lot of
- * the table sequentially, and then randomly. Not sure that's very likely
- * with index access, though.
- */
- if (index_prefetch_is_sequential(prefetch, block))
- {
- prefetch->countSkipSequential++;
- return true;
- }
-
- /*
- * See if we recently prefetched this block - we simply scan the LRU
- * linearly. While doing that, we also track the oldest entry, so that we
- * know where to put the block if we don't find a matching entry.
- */
- for (int i = 0; i < PREFETCH_LRU_SIZE; i++)
- {
- entry = &prefetch->prefetchCache[lru * PREFETCH_LRU_SIZE + i];
-
- /* Is this the oldest prefetch request in this LRU? */
- if (entry->request < oldestRequest)
- {
- oldestRequest = entry->request;
- oldestIndex = i;
- }
-
- /*
- * If the entry is unused (identified by request being set to 0),
- * we're done. Notice the field is uint64, so empty entry is
- * guaranteed to be the oldest one.
- */
- if (entry->request == 0)
- continue;
-
- /* Is this entry for the same block as the current request? */
- if (entry->block == block)
- {
- bool prefetched;
-
- /*
- * Is the old request sufficiently recent? If yes, we treat the
- * block as already prefetched.
- *
- * XXX We do add the cache size to the request in order not to
- * have issues with uint64 underflows.
- */
- prefetched = ((entry->request + PREFETCH_CACHE_SIZE) >= prefetch->prefetchReqNumber);
-
- /* Update the request number. */
- entry->request = ++prefetch->prefetchReqNumber;
-
- prefetch->countSkipCached += (prefetched) ? 1 : 0;
-
- return prefetched;
- }
- }
-
- /*
- * We didn't find the block in the LRU, so store it either in an empty
- * entry, or in the "oldest" prefetch request in this LRU.
- */
- Assert((oldestIndex >= 0) && (oldestIndex < PREFETCH_LRU_SIZE));
-
- /* FIXME do a nice macro */
- entry = &prefetch->prefetchCache[lru * PREFETCH_LRU_SIZE + oldestIndex];
-
- entry->block = block;
- entry->request = ++prefetch->prefetchReqNumber;
-
- /* not in the prefetch cache */
- return false;
-}
-
/*
* index_prefetch
* Prefetch the TID, unless it's sequential or recently prefetched.
@@ -1452,6 +1122,7 @@ index_prefetch(IndexScanDesc scan, ItemPointer tid, bool skip_all_visible)
{
IndexPrefetch prefetch = scan->xs_prefetch;
BlockNumber block;
+ PrefetchBufferResult result;
/*
* No heap relation means bitmap index scan, which does prefetching at the
@@ -1501,6 +1172,10 @@ index_prefetch(IndexScanDesc scan, ItemPointer tid, bool skip_all_visible)
return;
}
+ prefetch->countAll++;
+
+ result = PrefetchBuffer(scan->heapRelation, MAIN_FORKNUM, block);
+
/*
* Do not prefetch the same block over and over again,
*
@@ -1508,19 +1183,15 @@ index_prefetch(IndexScanDesc scan, ItemPointer tid, bool skip_all_visible)
* to a sequence ID). It's not expensive (the block is in page cache
* already, so no I/O), but it's not free either.
*/
- if (!index_prefetch_add_cache(prefetch, block))
+ if (result.initiated_io)
{
prefetch->countPrefetch++;
-
- PrefetchBuffer(scan->heapRelation, MAIN_FORKNUM, block);
pgBufferUsage.blks_prefetches++;
}
-
- prefetch->countAll++;
}
/* ----------------
- * index_getnext_tid_prefetch - get the next TID from a scan
+ * index_getnext_tid - get the next TID from a scan
*
* The result is the next TID satisfying the scan keys,
* or NULL if no more matching tuples exist.
@@ -1529,9 +1200,20 @@ index_prefetch(IndexScanDesc scan, ItemPointer tid, bool skip_all_visible)
* ----------------
*/
ItemPointer
-index_getnext_tid_prefetch(IndexScanDesc scan, ScanDirection direction)
+index_getnext_tid(IndexScanDesc scan, ScanDirection direction)
+{
+ /* Do prefetching (if requested/enabled). */
+ index_prefetch_tids(scan, direction);
+
+ /* Read the TID from the queue (or directly from the index). */
+ return index_prefetch_get_tid(scan, direction);
+}
+
+static void
+index_prefetch_tids(IndexScanDesc scan, ScanDirection direction)
{
- IndexPrefetch prefetch = scan->xs_prefetch; /* for convenience */
+ /* for convenience */
+ IndexPrefetch prefetch = scan->xs_prefetch;
/*
* If the prefetching is still active (i.e. enabled and we still
@@ -1560,7 +1242,7 @@ index_getnext_tid_prefetch(IndexScanDesc scan, ScanDirection direction)
ItemPointer tid;
/* Time to fetch the next TID from the index */
- tid = index_getnext_tid(scan, direction);
+ tid = index_getnext_tid_internal(scan, direction);
/*
* If we're out of index entries, we're done (and we mark the
@@ -1583,9 +1265,16 @@ index_getnext_tid_prefetch(IndexScanDesc scan, ScanDirection direction)
* XXX index_getnext_tid_prefetch is only called for IOS (for now),
* so skip prefetching of all-visible pages.
*/
- index_prefetch(scan, tid, true);
+ index_prefetch(scan, tid, scan->indexonly);
}
}
+}
+
+static ItemPointer
+index_prefetch_get_tid(IndexScanDesc scan, ScanDirection direction)
+{
+ /* for convenience */
+ IndexPrefetch prefetch = scan->xs_prefetch;
/*
* With prefetching enabled (even if we already finished reading
@@ -1607,7 +1296,7 @@ index_getnext_tid_prefetch(IndexScanDesc scan, ScanDirection direction)
ItemPointer tid;
/* Time to fetch the next TID from the index */
- tid = index_getnext_tid(scan, direction);
+ tid = index_getnext_tid_internal(scan, direction);
/* If we're out of index entries, we're done */
if (tid == NULL)
@@ -1616,6 +1305,5 @@ index_getnext_tid_prefetch(IndexScanDesc scan, ScanDirection direction)
Assert(ItemPointerEquals(tid, &scan->xs_heaptid));
}
- /* Return the TID of the tuple we found. */
return &scan->xs_heaptid;
}
diff --git a/src/backend/executor/nodeIndexonlyscan.c b/src/backend/executor/nodeIndexonlyscan.c
index 855afd5ba76..545046e98ad 100644
--- a/src/backend/executor/nodeIndexonlyscan.c
+++ b/src/backend/executor/nodeIndexonlyscan.c
@@ -120,6 +120,12 @@ IndexOnlyNext(IndexOnlyScanState *node)
node->ioss_NumOrderByKeys,
prefetch_max);
+ /*
+ * Remember this is index-only scan, because of prefetching. Not the most
+ * elegant way to pass this info.
+ */
+ scandesc->indexonly = true;
+
node->ioss_ScanDesc = scandesc;
@@ -142,7 +148,7 @@ IndexOnlyNext(IndexOnlyScanState *node)
/*
* OK, now that we have what we need, fetch the next tuple.
*/
- while ((tid = index_getnext_tid_prefetch(scandesc, direction)) != NULL)
+ while ((tid = index_getnext_tid(scandesc, direction)) != NULL)
{
bool tuple_from_heap = false;
diff --git a/src/include/access/genam.h b/src/include/access/genam.h
index e7b915d6ce7..9f33796fd29 100644
--- a/src/include/access/genam.h
+++ b/src/include/access/genam.h
@@ -235,38 +235,6 @@ extern HeapTuple systable_getnext_ordered(SysScanDesc sysscan,
ScanDirection direction);
extern void systable_endscan_ordered(SysScanDesc sysscan);
-/*
- * Cache of recently prefetched blocks, organized as a hash table of
- * small LRU caches. Doesn't need to be perfectly accurate, but we
- * aim to make false positives/negatives reasonably low.
- */
-typedef struct PrefetchCacheEntry {
- BlockNumber block;
- uint64 request;
-} PrefetchCacheEntry;
-
-/*
- * Size of the cache of recently prefetched blocks - shouldn't be too
- * small or too large. 1024 seems about right, it covers ~8MB of data.
- * It's somewhat arbitrary, there's no particular formula saying it
- * should not be higher/lower.
- *
- * The cache is structured as an array of small LRU caches, so the total
- * size needs to be a multiple of LRU size. The LRU should be tiny to
- * keep linear search cheap enough.
- *
- * XXX Maybe we could consider effective_cache_size or something?
- */
-#define PREFETCH_LRU_SIZE 8
-#define PREFETCH_LRU_COUNT 128
-#define PREFETCH_CACHE_SIZE (PREFETCH_LRU_SIZE * PREFETCH_LRU_COUNT)
-
-/*
- * Used to detect sequential patterns (and disable prefetching).
- */
-#define PREFETCH_QUEUE_HISTORY 8
-#define PREFETCH_SEQ_PATTERN_BLOCKS 4
-
typedef struct IndexPrefetchData
{
@@ -296,27 +264,6 @@ typedef struct IndexPrefetchData
uint64 queueIndex; /* next TID to prefetch */
uint64 queueStart; /* first valid TID in queue */
uint64 queueEnd; /* first invalid (empty) TID in queue */
-
- /*
- * A couple of last prefetched blocks, used to check for certain access
- * pattern and skip prefetching - e.g. for sequential access).
- *
- * XXX Separate from the main queue, because we only want to compare the
- * block numbers, not the whole TID. In sequential access it's likely we
- * read many items from each page, and we don't want to check many items
- * (as that is much more expensive).
- */
- BlockNumber blockItems[PREFETCH_QUEUE_HISTORY];
- uint64 blockIndex; /* index in the block (points to the first
- * empty entry)*/
-
- /*
- * Cache of recently prefetched blocks, organized as a hash table of
- * small LRU caches.
- */
- uint64 prefetchReqNumber;
- PrefetchCacheEntry prefetchCache[PREFETCH_CACHE_SIZE];
-
} IndexPrefetchData;
#define PREFETCH_QUEUE_INDEX(a) ((a) % (MAX_IO_CONCURRENCY))
diff --git a/src/include/access/relscan.h b/src/include/access/relscan.h
index 231a30ecc46..d5903492c6e 100644
--- a/src/include/access/relscan.h
+++ b/src/include/access/relscan.h
@@ -135,6 +135,7 @@ typedef struct IndexScanDescData
bool ignore_killed_tuples; /* do not return killed entries */
bool xactStartedInRecovery; /* prevents killing/seeing killed
* tuples */
+ bool indexonly; /* is this index-only scan? */
/* index access method's private state */
void *opaque; /* access-method-specific info */
--
2.42.0
[text/x-patch] v20231124-0003-check-page-cache-using-preadv2.patch (7.9K, 4-v20231124-0003-check-page-cache-using-preadv2.patch)
download | inline diff:
From 3a25a7534b4fc01bfc0043f027db922ab0b531fb Mon Sep 17 00:00:00 2001
From: Tomas Vondra <[email protected]>
Date: Wed, 22 Nov 2023 18:21:45 +0100
Subject: [PATCH v20231124 3/7] check page cache using preadv2
Call preadv2 with NOWAIT flag, to check if a block already exists in page cache.
---
src/backend/storage/buffer/bufmgr.c | 12 +++++++++
src/backend/storage/file/fd.c | 40 +++++++++++++++++++++++++++++
src/backend/storage/smgr/md.c | 27 +++++++++++++++++++
src/backend/storage/smgr/smgr.c | 19 ++++++++++++++
src/include/storage/fd.h | 1 +
src/include/storage/md.h | 2 ++
src/include/storage/smgr.h | 2 ++
7 files changed, 103 insertions(+)
diff --git a/src/backend/storage/buffer/bufmgr.c b/src/backend/storage/buffer/bufmgr.c
index f7c67d504cd..74da9c1376b 100644
--- a/src/backend/storage/buffer/bufmgr.c
+++ b/src/backend/storage/buffer/bufmgr.c
@@ -567,8 +567,20 @@ PrefetchSharedBuffer(SMgrRelation smgr_reln,
/*
* Try to initiate an asynchronous read. This returns false in
* recovery if the relation file doesn't exist.
+ *
+ * But first check if the block is already present in page cache.
+ *
+ * FIXME This breaks prefetch from recovery. Apparently that expects
+ * the prefetch to initiate the I/O, otherwise it fails with. But
+ * XLogPrefetcherNextBlock checks initiated_io, and may fail with:
+ *
+ * FATAL: could not prefetch relation 1663/16384/16401 block 83758
+ *
+ * So maybe just fake the initiated_io=true in this case? Or not do
+ * this when in recovery.
*/
if ((io_direct_flags & IO_DIRECT_DATA) == 0 &&
+ !smgrcached(smgr_reln, forkNum, blockNum) &&
smgrprefetch(smgr_reln, forkNum, blockNum))
{
result.initiated_io = true;
diff --git a/src/backend/storage/file/fd.c b/src/backend/storage/file/fd.c
index f691ba09321..2c51a3376f3 100644
--- a/src/backend/storage/file/fd.c
+++ b/src/backend/storage/file/fd.c
@@ -78,6 +78,7 @@
#include <sys/resource.h> /* for getrlimit */
#include <sys/stat.h>
#include <sys/types.h>
+#include <sys/uio.h>
#ifndef WIN32
#include <sys/mman.h>
#endif
@@ -2083,6 +2084,45 @@ retry:
#endif
}
+/*
+ * FileCached - check if a given range of the file is in page cache.
+ *
+ * XXX relies on preadv2, probably needs to be checked by configure
+ */
+bool
+FileCached(File file, off_t offset, off_t amount, uint32 wait_event_info)
+{
+#if defined(USE_POSIX_FADVISE) && defined(POSIX_FADV_WILLNEED)
+ int returnCode;
+ size_t readlen;
+ char buffer[BLCKSZ];
+ struct iovec iov[1];
+
+ Assert(FileIsValid(file));
+
+ DO_DB(elog(LOG, "FilePrefetch: %d (%s) " INT64_FORMAT " " INT64_FORMAT,
+ file, VfdCache[file].fileName,
+ (int64) offset, (int64) amount));
+
+ returnCode = FileAccess(file);
+ if (returnCode < 0)
+ return false;
+
+ /* XXX not sure if this ensures proper buffer alignment */
+ iov[0].iov_base = &buffer;
+ iov[0].iov_len = amount;
+
+ pgstat_report_wait_start(wait_event_info);
+ readlen = preadv2(VfdCache[file].fd, iov, 1, offset, RWF_NOWAIT);
+ pgstat_report_wait_end();
+
+ return (readlen == amount);
+#else
+ Assert(FileIsValid(file));
+ return false;
+#endif
+}
+
void
FileWriteback(File file, off_t offset, off_t nbytes, uint32 wait_event_info)
{
diff --git a/src/backend/storage/smgr/md.c b/src/backend/storage/smgr/md.c
index fdecbad1709..16a7c424683 100644
--- a/src/backend/storage/smgr/md.c
+++ b/src/backend/storage/smgr/md.c
@@ -736,6 +736,33 @@ mdprefetch(SMgrRelation reln, ForkNumber forknum, BlockNumber blocknum)
return true;
}
+/*
+ * mdcached() -- Check if the whole block is already available in page cache.
+ */
+bool
+mdcached(SMgrRelation reln, ForkNumber forknum, BlockNumber blocknum)
+{
+#ifdef USE_PREFETCH
+ off_t seekpos;
+ MdfdVec *v;
+
+ Assert((io_direct_flags & IO_DIRECT_DATA) == 0);
+
+ v = _mdfd_getseg(reln, forknum, blocknum, false,
+ InRecovery ? EXTENSION_RETURN_NULL : EXTENSION_FAIL);
+ if (v == NULL)
+ return false;
+
+ seekpos = (off_t) BLCKSZ * (blocknum % ((BlockNumber) RELSEG_SIZE));
+
+ Assert(seekpos < (off_t) BLCKSZ * RELSEG_SIZE);
+
+ (void) FileCached(v->mdfd_vfd, seekpos, BLCKSZ, WAIT_EVENT_DATA_FILE_PREFETCH);
+#endif /* USE_PREFETCH */
+
+ return true;
+}
+
/*
* mdread() -- Read the specified block from a relation.
*/
diff --git a/src/backend/storage/smgr/smgr.c b/src/backend/storage/smgr/smgr.c
index 5d0f3d515c3..209518aae01 100644
--- a/src/backend/storage/smgr/smgr.c
+++ b/src/backend/storage/smgr/smgr.c
@@ -55,6 +55,8 @@ typedef struct f_smgr
BlockNumber blocknum, int nblocks, bool skipFsync);
bool (*smgr_prefetch) (SMgrRelation reln, ForkNumber forknum,
BlockNumber blocknum);
+ bool (*smgr_cached) (SMgrRelation reln, ForkNumber forknum,
+ BlockNumber blocknum);
void (*smgr_read) (SMgrRelation reln, ForkNumber forknum,
BlockNumber blocknum, void *buffer);
void (*smgr_write) (SMgrRelation reln, ForkNumber forknum,
@@ -80,6 +82,7 @@ static const f_smgr smgrsw[] = {
.smgr_extend = mdextend,
.smgr_zeroextend = mdzeroextend,
.smgr_prefetch = mdprefetch,
+ .smgr_cached = mdcached,
.smgr_read = mdread,
.smgr_write = mdwrite,
.smgr_writeback = mdwriteback,
@@ -550,6 +553,22 @@ smgrprefetch(SMgrRelation reln, ForkNumber forknum, BlockNumber blocknum)
return smgrsw[reln->smgr_which].smgr_prefetch(reln, forknum, blocknum);
}
+/*
+ * smgrcached() -- Check if the specified block is already in page cache.
+ */
+bool
+smgrcached(SMgrRelation reln, ForkNumber forknum, BlockNumber blocknum)
+{
+ /*
+ * In recovery we consider the blocks not cached, so that PrefetchSharedBuffer
+ * initiates the I/O. XLogPrefetcherNextBlock relies on that.
+ */
+ if (InRecovery)
+ return false;
+
+ return smgrsw[reln->smgr_which].smgr_cached(reln, forknum, blocknum);
+}
+
/*
* smgrread() -- read a particular block from a relation into the supplied
* buffer.
diff --git a/src/include/storage/fd.h b/src/include/storage/fd.h
index d9d5d9da5fb..c96a24dddd3 100644
--- a/src/include/storage/fd.h
+++ b/src/include/storage/fd.h
@@ -105,6 +105,7 @@ extern File PathNameOpenFilePerm(const char *fileName, int fileFlags, mode_t fil
extern File OpenTemporaryFile(bool interXact);
extern void FileClose(File file);
extern int FilePrefetch(File file, off_t offset, off_t amount, uint32 wait_event_info);
+extern bool FileCached(File file, off_t offset, off_t amount, uint32 wait_event_info);
extern int FileRead(File file, void *buffer, size_t amount, off_t offset, uint32 wait_event_info);
extern int FileWrite(File file, const void *buffer, size_t amount, off_t offset, uint32 wait_event_info);
extern int FileSync(File file, uint32 wait_event_info);
diff --git a/src/include/storage/md.h b/src/include/storage/md.h
index 941879ee6a8..8dc1382471e 100644
--- a/src/include/storage/md.h
+++ b/src/include/storage/md.h
@@ -32,6 +32,8 @@ extern void mdzeroextend(SMgrRelation reln, ForkNumber forknum,
BlockNumber blocknum, int nblocks, bool skipFsync);
extern bool mdprefetch(SMgrRelation reln, ForkNumber forknum,
BlockNumber blocknum);
+extern bool mdcached(SMgrRelation reln, ForkNumber forknum,
+ BlockNumber blocknum);
extern void mdread(SMgrRelation reln, ForkNumber forknum, BlockNumber blocknum,
void *buffer);
extern void mdwrite(SMgrRelation reln, ForkNumber forknum,
diff --git a/src/include/storage/smgr.h b/src/include/storage/smgr.h
index a9a179aabac..7fbed2a4291 100644
--- a/src/include/storage/smgr.h
+++ b/src/include/storage/smgr.h
@@ -96,6 +96,8 @@ extern void smgrzeroextend(SMgrRelation reln, ForkNumber forknum,
BlockNumber blocknum, int nblocks, bool skipFsync);
extern bool smgrprefetch(SMgrRelation reln, ForkNumber forknum,
BlockNumber blocknum);
+extern bool smgrcached(SMgrRelation reln, ForkNumber forknum,
+ BlockNumber blocknum);
extern void smgrread(SMgrRelation reln, ForkNumber forknum,
BlockNumber blocknum, void *buffer);
extern void smgrwrite(SMgrRelation reln, ForkNumber forknum,
--
2.42.0
[text/x-patch] v20231124-0004-reintroduce-the-LRU-cache-of-recent-blocks.patch (8.2K, 5-v20231124-0004-reintroduce-the-LRU-cache-of-recent-blocks.patch)
download | inline diff:
From 8571e2b0ee705ea7d1b8d2f285c361ea010e4d2d Mon Sep 17 00:00:00 2001
From: Tomas Vondra <[email protected]>
Date: Sat, 18 Nov 2023 12:05:53 +0100
Subject: [PATCH v20231124 4/7] reintroduce the LRU cache of recent blocks
Useful for detecting sequential patterns, for which read-ahead works
better than our prefetching, and checking shared buffers and page cache
is not sufficient.
---
src/backend/access/index/indexam.c | 137 +++++++++++++++++++++++++++++
src/include/access/genam.h | 30 +++++++
2 files changed, 167 insertions(+)
diff --git a/src/backend/access/index/indexam.c b/src/backend/access/index/indexam.c
index 54a704338f1..7456a69ab34 100644
--- a/src/backend/access/index/indexam.c
+++ b/src/backend/access/index/indexam.c
@@ -1082,6 +1082,125 @@ index_opclass_options(Relation indrel, AttrNumber attnum, Datum attoptions,
return build_local_reloptions(&relopts, attoptions, validate);
}
+/*
+ * index_prefetch_is_sequential
+ * Track the block number and check if the I/O pattern is sequential,
+ * or if the same block was just prefetched.
+ *
+ * Prefetching is cheap, but for some access patterns the benefits are small
+ * compared to the extra overhead. In particular, for sequential access the
+ * read-ahead performed by the OS is very effective/efficient. Doing more
+ * prefetching is just increasing the costs.
+ *
+ * This tries to identify simple sequential patterns, so that we can skip
+ * the prefetching request. This is implemented by having a small queue
+ * of block numbers, and checking it before prefetching another block.
+ *
+ * We look at the preceding PREFETCH_SEQ_PATTERN_BLOCKS blocks, and see if
+ * they are sequential. We also check if the block is the same as the last
+ * request (which is not sequential).
+ *
+ * Note that the main prefetch queue is not really useful for this, as it
+ * stores TIDs while we care about block numbers. Consider a sorted table,
+ * with a perfectly sequential pattern when accessed through an index. Each
+ * heap page may have dozens of TIDs, but we need to check block numbers.
+ * We could keep enough TIDs to cover enough blocks, but then we also need
+ * to walk those when checking the pattern (in hot path).
+ *
+ * So instead, we maintain a small separate queue of block numbers, and we use
+ * this instead.
+ *
+ * Returns true if the block is in a sequential pattern (and so should not be
+ * prefetched), or false (not sequential, should be prefetched).
+ *
+ * XXX The name is a bit misleading, as it also adds the block number to the
+ * block queue and checks if the block is the same as the last one (which
+ * does not require a sequential pattern).
+ */
+static bool
+index_prefetch_is_sequential(IndexPrefetch prefetch, BlockNumber block)
+{
+ int idx;
+
+ /*
+ * If the block queue is empty, just store the block and we're done (it's
+ * neither a sequential pattern, neither recently prefetched block).
+ */
+ if (prefetch->blockIndex == 0)
+ {
+ prefetch->blockItems[PREFETCH_BLOCK_INDEX(prefetch->blockIndex)] = block;
+ prefetch->blockIndex++;
+ return false;
+ }
+
+ /*
+ * Check if it's the same as the immediately preceding block. We don't
+ * want to prefetch the same block over and over (which would happen for
+ * well correlated indexes).
+ *
+ * In principle we could rely on index_prefetch_add_cache doing this using
+ * the full cache, but this check is much cheaper and we need to look at
+ * the preceding block anyway, so we just do it.
+ *
+ * XXX Notice we haven't added the block to the block queue yet, and there
+ * is a preceding block (i.e. blockIndex-1 is valid).
+ */
+ if (prefetch->blockItems[PREFETCH_BLOCK_INDEX(prefetch->blockIndex - 1)] == block)
+ return true;
+
+ /*
+ * Add the block number to the queue.
+ *
+ * We do this before checking if the pattern, because we want to know
+ * about the block even if we end up skipping the prefetch. Otherwise we'd
+ * not be able to detect longer sequential pattens - we'd skip one block
+ * but then fail to skip the next couple blocks even in a perfect
+ * sequential pattern. This ocillation might even prevent the OS
+ * read-ahead from kicking in.
+ */
+ prefetch->blockItems[PREFETCH_BLOCK_INDEX(prefetch->blockIndex)] = block;
+ prefetch->blockIndex++;
+
+ /*
+ * Check if the last couple blocks are in a sequential pattern. We look
+ * for a sequential pattern of PREFETCH_SEQ_PATTERN_BLOCKS (4 by default),
+ * so we look for patterns of 5 pages (40kB) including the new block.
+ *
+ * XXX Perhaps this should be tied to effective_io_concurrency somehow?
+ *
+ * XXX Could it be harmful that we read the queue backwards? Maybe memory
+ * prefetching works better for the forward direction?
+ */
+ for (int i = 1; i < PREFETCH_SEQ_PATTERN_BLOCKS; i++)
+ {
+ /*
+ * Are there enough requests to confirm a sequential pattern? We only
+ * consider something to be sequential after finding a sequence of
+ * PREFETCH_SEQ_PATTERN_BLOCKS blocks.
+ *
+ * FIXME Better to move this outside the loop.
+ */
+ if (prefetch->blockIndex < i)
+ return false;
+
+ /*
+ * Calculate index of the earlier block (we need to do -1 as we
+ * already incremented the index when adding the new block to the
+ * queue).
+ */
+ idx = PREFETCH_BLOCK_INDEX(prefetch->blockIndex - i - 1);
+
+ /*
+ * For a sequential pattern, blocks "k" step ago needs to have block
+ * number by "k" smaller compared to the current block.
+ */
+ if (prefetch->blockItems[idx] != (block - i))
+ return false;
+ }
+
+ return true;
+}
+
/*
* index_prefetch
* Prefetch the TID, unless it's sequential or recently prefetched.
@@ -1172,8 +1291,26 @@ index_prefetch(IndexScanDesc scan, ItemPointer tid, bool skip_all_visible)
return;
}
+ /*
+ * Now also check if the blocks to prefetch are in a sequential pattern.
+ * We do it here because we need to do this check before PrefetchBuffer
+ * initiates the prefetch, and we it can't do this easily (as it doesn't
+ * know in what context it's called in). So we do it here.
+ *
+ * We use a tiny LRU cache and see if the blocks follow a sequential
+ * pattern - if it's the same as the previous block, or if the last
+ * couple blocks are a continguous sequence, we don't prefetch it.
+ */
+ if (index_prefetch_is_sequential(prefetch, block))
+ {
+ prefetch->countSkipSequential++;
+ return;
+ }
+
+ /* XXX shouldn't this be before the VM / sequenqial check? */
prefetch->countAll++;
+ /* OK, try prefetching the block. */
result = PrefetchBuffer(scan->heapRelation, MAIN_FORKNUM, block);
/*
diff --git a/src/include/access/genam.h b/src/include/access/genam.h
index 9f33796fd29..9e2d77ef23b 100644
--- a/src/include/access/genam.h
+++ b/src/include/access/genam.h
@@ -235,6 +235,22 @@ extern HeapTuple systable_getnext_ordered(SysScanDesc sysscan,
ScanDirection direction);
extern void systable_endscan_ordered(SysScanDesc sysscan);
+/*
+ * Cache of recently prefetched blocks, organized as a hash table of
+ * small LRU caches. Doesn't need to be perfectly accurate, but we
+ * aim to make false positives/negatives reasonably low.
+ */
+typedef struct PrefetchCacheEntry {
+ BlockNumber block;
+ uint64 request;
+} PrefetchCacheEntry;
+
+/*
+ * Used to detect sequential patterns (to not prefetch in this case).
+ */
+#define PREFETCH_QUEUE_HISTORY 8
+#define PREFETCH_SEQ_PATTERN_BLOCKS 4
+
typedef struct IndexPrefetchData
{
@@ -264,6 +280,20 @@ typedef struct IndexPrefetchData
uint64 queueIndex; /* next TID to prefetch */
uint64 queueStart; /* first valid TID in queue */
uint64 queueEnd; /* first invalid (empty) TID in queue */
+
+ /*
+ * A couple of last prefetched blocks, used to check for certain access
+ * pattern and skip prefetching - e.g. for sequential access).
+ *
+ * XXX Separate from the main queue, because we only want to compare the
+ * block numbers, not the whole TID. In sequential access it's likely we
+ * read many items from each page, and we don't want to check many items
+ * (as that is much more expensive).
+ */
+ BlockNumber blockItems[PREFETCH_QUEUE_HISTORY];
+ uint64 blockIndex; /* index in the block (points to the first
+ * empty entry)*/
+
} IndexPrefetchData;
#define PREFETCH_QUEUE_INDEX(a) ((a) % (MAX_IO_CONCURRENCY))
--
2.42.0
[text/x-patch] v20231124-0005-hold-the-vm-buffer-for-IOS-prefetching.patch (2.4K, 6-v20231124-0005-hold-the-vm-buffer-for-IOS-prefetching.patch)
download | inline diff:
From 23eead34921a16b8301160ce8bde51be615856f0 Mon Sep 17 00:00:00 2001
From: Tomas Vondra <[email protected]>
Date: Wed, 22 Nov 2023 23:26:08 +0100
Subject: [PATCH v20231124 5/7] hold the vm buffer for IOS prefetching
---
src/backend/access/index/indexam.c | 7 ++-----
src/backend/executor/nodeIndexonlyscan.c | 12 ++++++++++++
src/include/access/genam.h | 3 +++
3 files changed, 17 insertions(+), 5 deletions(-)
diff --git a/src/backend/access/index/indexam.c b/src/backend/access/index/indexam.c
index 7456a69ab34..53948986ada 100644
--- a/src/backend/access/index/indexam.c
+++ b/src/backend/access/index/indexam.c
@@ -336,6 +336,7 @@ index_beginscan_internal(Relation indexRelation,
prefetcher->prefetchTarget = 0;
prefetcher->prefetchMaxTarget = prefetch_max;
+ prefetcher->vmBuffer = InvalidBuffer;
scan->xs_prefetch = prefetcher;
}
@@ -1278,14 +1279,10 @@ index_prefetch(IndexScanDesc scan, ItemPointer tid, bool skip_all_visible)
if (skip_all_visible)
{
bool all_visible;
- Buffer vmbuffer = InvalidBuffer;
all_visible = VM_ALL_VISIBLE(scan->heapRelation,
block,
- &vmbuffer);
-
- if (vmbuffer != InvalidBuffer)
- ReleaseBuffer(vmbuffer);
+ &prefetch->vmBuffer);
if (all_visible)
return;
diff --git a/src/backend/executor/nodeIndexonlyscan.c b/src/backend/executor/nodeIndexonlyscan.c
index 545046e98ad..60cb772344f 100644
--- a/src/backend/executor/nodeIndexonlyscan.c
+++ b/src/backend/executor/nodeIndexonlyscan.c
@@ -412,6 +412,18 @@ ExecEndIndexOnlyScan(IndexOnlyScanState *node)
node->ioss_VMBuffer = InvalidBuffer;
}
+ /* Release VM buffer pin from prefetcher, if any. */
+ if (indexScanDesc && indexScanDesc->xs_prefetch)
+ {
+ IndexPrefetch indexPrefetch = indexScanDesc->xs_prefetch;
+
+ if (indexPrefetch->vmBuffer != InvalidBuffer)
+ {
+ ReleaseBuffer(indexPrefetch->vmBuffer);
+ indexPrefetch->vmBuffer = InvalidBuffer;
+ }
+ }
+
/*
* close the index relation (no-op if we didn't open it)
*/
diff --git a/src/include/access/genam.h b/src/include/access/genam.h
index 9e2d77ef23b..8a3be673730 100644
--- a/src/include/access/genam.h
+++ b/src/include/access/genam.h
@@ -270,6 +270,9 @@ typedef struct IndexPrefetchData
uint64 countSkipSequential;
uint64 countSkipCached;
+ /* used when prefetching index-only scans */
+ Buffer vmBuffer;
+
/*
* Queue of TIDs to prefetch.
*
--
2.42.0
[text/x-patch] v20231124-0006-poc-reuse-vm-information.patch (8.8K, 7-v20231124-0006-poc-reuse-vm-information.patch)
download | inline diff:
From 58a3cea898f810aa4646e6327c5e0241e6886e66 Mon Sep 17 00:00:00 2001
From: Tomas Vondra <[email protected]>
Date: Thu, 23 Nov 2023 00:47:17 +0100
Subject: [PATCH v20231124 6/7] poc: reuse vm information
---
src/backend/access/index/indexam.c | 59 ++++++++++++++++--------
src/backend/executor/nodeIndexonlyscan.c | 8 +++-
src/include/access/genam.h | 12 +++--
3 files changed, 56 insertions(+), 23 deletions(-)
diff --git a/src/backend/access/index/indexam.c b/src/backend/access/index/indexam.c
index 53948986ada..45c97aff5ef 100644
--- a/src/backend/access/index/indexam.c
+++ b/src/backend/access/index/indexam.c
@@ -113,8 +113,8 @@ static IndexScanDesc index_beginscan_internal(Relation indexRelation,
int prefetch_max);
static void index_prefetch_tids(IndexScanDesc scan, ScanDirection direction);
-static ItemPointer index_prefetch_get_tid(IndexScanDesc scan, ScanDirection direction);
-static void index_prefetch(IndexScanDesc scan, ItemPointer tid, bool skip_all_visible);
+static ItemPointer index_prefetch_get_tid(IndexScanDesc scan, ScanDirection direction, bool *all_visible);
+static void index_prefetch(IndexScanDesc scan, ItemPointer tid, bool skip_all_visible, bool *all_visible);
/* ----------------------------------------------------------------
@@ -721,10 +721,11 @@ index_getnext_slot(IndexScanDesc scan, ScanDirection direction, TupleTableSlot *
if (!scan->xs_heap_continue)
{
- ItemPointer tid;
+ ItemPointer tid;
+ bool all_visible;
/* Time to fetch the next TID from the index */
- tid = index_prefetch_get_tid(scan, direction);
+ tid = index_prefetch_get_tid(scan, direction, &all_visible);
/* If we're out of index entries, we're done */
if (tid == NULL)
@@ -1238,12 +1239,15 @@ index_prefetch_is_sequential(IndexPrefetch prefetch, BlockNumber block)
* in BTScanPosData.nextPage.
*/
static void
-index_prefetch(IndexScanDesc scan, ItemPointer tid, bool skip_all_visible)
+index_prefetch(IndexScanDesc scan, ItemPointer tid, bool skip_all_visible, bool *all_visible)
{
IndexPrefetch prefetch = scan->xs_prefetch;
BlockNumber block;
PrefetchBufferResult result;
+ /* by default not all visible (or we didn't check) */
+ *all_visible = false;
+
/*
* No heap relation means bitmap index scan, which does prefetching at the
* bitmap heap scan, so no prefetch here (we can't do it anyway, without
@@ -1275,16 +1279,19 @@ index_prefetch(IndexScanDesc scan, ItemPointer tid, bool skip_all_visible)
* we can propagate it here). Or at least do it for a bulk of prefetches,
* although that's not very useful - after the ramp-up we will prefetch
* the pages one by one anyway.
+ *
+ * XXX Ideally we'd also propagate this to the executor, so that the
+ * nodeIndexonlyscan.c doesn't need to repeat the same VM check (which
+ * is measurable). But the index_getnext_tid() is not really well
+ * suited for that, so the API needs a change.s
*/
if (skip_all_visible)
{
- bool all_visible;
+ *all_visible = VM_ALL_VISIBLE(scan->heapRelation,
+ block,
+ &prefetch->vmBuffer);
- all_visible = VM_ALL_VISIBLE(scan->heapRelation,
- block,
- &prefetch->vmBuffer);
-
- if (all_visible)
+ if (*all_visible)
return;
}
@@ -1336,11 +1343,23 @@ index_prefetch(IndexScanDesc scan, ItemPointer tid, bool skip_all_visible)
ItemPointer
index_getnext_tid(IndexScanDesc scan, ScanDirection direction)
{
+ bool all_visible; /* ignored */
+
/* Do prefetching (if requested/enabled). */
index_prefetch_tids(scan, direction);
/* Read the TID from the queue (or directly from the index). */
- return index_prefetch_get_tid(scan, direction);
+ return index_prefetch_get_tid(scan, direction, &all_visible);
+}
+
+ItemPointer
+index_getnext_tid_vm(IndexScanDesc scan, ScanDirection direction, bool *all_visible)
+{
+ /* Do prefetching (if requested/enabled). */
+ index_prefetch_tids(scan, direction);
+
+ /* Read the TID from the queue (or directly from the index). */
+ return index_prefetch_get_tid(scan, direction, all_visible);
}
static void
@@ -1374,6 +1393,7 @@ index_prefetch_tids(IndexScanDesc scan, ScanDirection direction)
while (!PREFETCH_FULL(prefetch))
{
ItemPointer tid;
+ bool all_visible;
/* Time to fetch the next TID from the index */
tid = index_getnext_tid_internal(scan, direction);
@@ -1390,22 +1410,23 @@ index_prefetch_tids(IndexScanDesc scan, ScanDirection direction)
Assert(ItemPointerEquals(tid, &scan->xs_heaptid));
- prefetch->queueItems[PREFETCH_QUEUE_INDEX(prefetch->queueEnd)] = *tid;
- prefetch->queueEnd++;
-
/*
* Issue the actuall prefetch requests for the new TID.
*
* XXX index_getnext_tid_prefetch is only called for IOS (for now),
* so skip prefetching of all-visible pages.
*/
- index_prefetch(scan, tid, scan->indexonly);
+ index_prefetch(scan, tid, scan->indexonly, &all_visible);
+
+ prefetch->queueItems[PREFETCH_QUEUE_INDEX(prefetch->queueEnd)].tid = *tid;
+ prefetch->queueItems[PREFETCH_QUEUE_INDEX(prefetch->queueEnd)].all_visible = all_visible;
+ prefetch->queueEnd++;
}
}
}
static ItemPointer
-index_prefetch_get_tid(IndexScanDesc scan, ScanDirection direction)
+index_prefetch_get_tid(IndexScanDesc scan, ScanDirection direction, bool *all_visible)
{
/* for convenience */
IndexPrefetch prefetch = scan->xs_prefetch;
@@ -1422,7 +1443,8 @@ index_prefetch_get_tid(IndexScanDesc scan, ScanDirection direction)
if (PREFETCH_DONE(prefetch))
return NULL;
- scan->xs_heaptid = prefetch->queueItems[PREFETCH_QUEUE_INDEX(prefetch->queueIndex)];
+ scan->xs_heaptid = prefetch->queueItems[PREFETCH_QUEUE_INDEX(prefetch->queueIndex)].tid;
+ *all_visible = prefetch->queueItems[PREFETCH_QUEUE_INDEX(prefetch->queueIndex)].all_visible;
prefetch->queueIndex++;
}
else /* not prefetching, just do the regular work */
@@ -1431,6 +1453,7 @@ index_prefetch_get_tid(IndexScanDesc scan, ScanDirection direction)
/* Time to fetch the next TID from the index */
tid = index_getnext_tid_internal(scan, direction);
+ *all_visible = false;
/* If we're out of index entries, we're done */
if (tid == NULL)
diff --git a/src/backend/executor/nodeIndexonlyscan.c b/src/backend/executor/nodeIndexonlyscan.c
index 60cb772344f..b6660c10a63 100644
--- a/src/backend/executor/nodeIndexonlyscan.c
+++ b/src/backend/executor/nodeIndexonlyscan.c
@@ -66,6 +66,7 @@ IndexOnlyNext(IndexOnlyScanState *node)
TupleTableSlot *slot;
ItemPointer tid;
Relation heapRel = node->ss.ss_currentRelation;
+ bool all_visible;
/*
* extract necessary information from index scan node
@@ -148,7 +149,7 @@ IndexOnlyNext(IndexOnlyScanState *node)
/*
* OK, now that we have what we need, fetch the next tuple.
*/
- while ((tid = index_getnext_tid(scandesc, direction)) != NULL)
+ while ((tid = index_getnext_tid_vm(scandesc, direction, &all_visible)) != NULL)
{
bool tuple_from_heap = false;
@@ -187,8 +188,11 @@ IndexOnlyNext(IndexOnlyScanState *node)
*
* It's worth going through this complexity to avoid needing to lock
* the VM buffer, which could cause significant contention.
+ *
+ * XXX Skip if we already know the page is all visible from prefetcher.
*/
- if (!VM_ALL_VISIBLE(scandesc->heapRelation,
+ if (!all_visible &&
+ !VM_ALL_VISIBLE(scandesc->heapRelation,
ItemPointerGetBlockNumber(tid),
&node->ioss_VMBuffer))
{
diff --git a/src/include/access/genam.h b/src/include/access/genam.h
index 8a3be673730..db1dc9c44b6 100644
--- a/src/include/access/genam.h
+++ b/src/include/access/genam.h
@@ -175,8 +175,9 @@ extern IndexScanDesc index_beginscan_parallel(Relation heaprel,
int prefetch_max);
extern ItemPointer index_getnext_tid(IndexScanDesc scan,
ScanDirection direction);
-extern ItemPointer index_getnext_tid_prefetch(IndexScanDesc scan,
- ScanDirection direction);
+extern ItemPointer index_getnext_tid_vm(IndexScanDesc scan,
+ ScanDirection direction,
+ bool *all_visible);
struct TupleTableSlot;
extern bool index_fetch_heap(IndexScanDesc scan, struct TupleTableSlot *slot);
extern bool index_getnext_slot(IndexScanDesc scan, ScanDirection direction,
@@ -251,6 +252,11 @@ typedef struct PrefetchCacheEntry {
#define PREFETCH_QUEUE_HISTORY 8
#define PREFETCH_SEQ_PATTERN_BLOCKS 4
+typedef struct PrefetchEntry
+{
+ ItemPointerData tid;
+ bool all_visible;
+} PrefetchEntry;
typedef struct IndexPrefetchData
{
@@ -279,7 +285,7 @@ typedef struct IndexPrefetchData
* XXX Sizing for MAX_IO_CONCURRENCY may be overkill, but it seems simpler
* than dynamically adjusting for custom values.
*/
- ItemPointerData queueItems[MAX_IO_CONCURRENCY];
+ PrefetchEntry queueItems[MAX_IO_CONCURRENCY];
uint64 queueIndex; /* next TID to prefetch */
uint64 queueStart; /* first valid TID in queue */
uint64 queueEnd; /* first invalid (empty) TID in queue */
--
2.42.0
[text/x-patch] v20231124-0007-20231016-reworked.patch (18.7K, 8-v20231124-0007-20231016-reworked.patch)
download | inline diff:
From 3ba126559c69a31f6f0c48c85de2c892cebac4f3 Mon Sep 17 00:00:00 2001
From: Tomas Vondra <[email protected]>
Date: Fri, 24 Nov 2023 12:31:43 +0100
Subject: [PATCH v20231124 7/7] 20231016-reworked
---
src/backend/access/index/indexam.c | 195 ++++++++++++++++++++++++----
src/backend/storage/buffer/bufmgr.c | 12 --
src/backend/storage/file/fd.c | 40 ------
src/backend/storage/smgr/md.c | 27 ----
src/backend/storage/smgr/smgr.c | 19 ---
src/include/access/genam.h | 25 +++-
src/include/storage/fd.h | 1 -
src/include/storage/md.h | 2 -
src/include/storage/smgr.h | 2 -
9 files changed, 195 insertions(+), 128 deletions(-)
diff --git a/src/backend/access/index/indexam.c b/src/backend/access/index/indexam.c
index 45c97aff5ef..82e3266bcc0 100644
--- a/src/backend/access/index/indexam.c
+++ b/src/backend/access/index/indexam.c
@@ -1203,6 +1203,148 @@ index_prefetch_is_sequential(IndexPrefetch prefetch, BlockNumber block)
return true;
}
+/*
+ * index_prefetch_add_cache
+ * Add a block to the cache, check if it was recently prefetched.
+ *
+ * We don't want to prefetch blocks that we already prefetched recently. It's
+ * cheap but not free, and the overhead may have measurable impact.
+ *
+ * This check needs to be very cheap, even with fairly large caches (hundreds
+ * of entries, see PREFETCH_CACHE_SIZE).
+ *
+ * A simple queue would allow expiring the requests, but checking if it
+ * contains a particular block prefetched would be expensive (linear search).
+ * Another option would be a simple hash table, which has fast lookup but
+ * does not allow expiring entries cheaply.
+ *
+ * The cache does not need to be perfect, we can accept false
+ * positives/negatives, as long as the rate is reasonably low. We also need
+ * to expire entries, so that only "recent" requests are remembered.
+ *
+ * We use a hybrid cache that is organized as many small LRU caches. Each
+ * block is mapped to a particular LRU by hashing (so it's a bit like a
+ * hash table). The LRU caches are tiny (e.g. 8 entries), and the expiration
+ * happens at the level of a single LRU (by tracking only the 8 most recent requests).
+ *
+ * This allows quick searches and expiration, but with false negatives (when a
+ * particular LRU has too many collisions, we may evict entries that are more
+ * recent than some other LRU).
+ *
+ * For example, imagine 128 LRU caches, each with 8 entries - that's 1024
+ * prefetch request in total (these are the default parameters.)
+ *
+ * The recency is determined using a prefetch counter, incremented every
+ * time we end up prefetching a block. The counter is uint64, so it should
+ * not wrap (125 zebibytes, would take ~4 million years at 1GB/s).
+ *
+ * To check if a block was prefetched recently, we calculate hash(block),
+ * and then linearly search if the tiny LRU has entry for the same block
+ * and request less than PREFETCH_CACHE_SIZE ago.
+ *
+ * At the same time, we either update the entry (for the queried block) if
+ * found, or replace the oldest/empty entry.
+ *
+ * If the block was not recently prefetched (i.e. we want to prefetch it),
+ * we increment the counter.
+ *
+ * Returns true if the block was recently prefetched (and thus we don't
+ * need to prefetch it again), or false (should do a prefetch).
+ *
+ * XXX It's a bit confusing these return values are inverse compared to
+ * what index_prefetch_is_sequential does.
+ */
+static bool
+index_prefetch_add_cache(IndexPrefetch prefetch, BlockNumber block)
+{
+ PrefetchCacheEntry *entry;
+
+ /* map the block number the the LRU */
+ int lru = hash_uint32(block) % PREFETCH_LRU_COUNT;
+
+ /* age/index of the oldest entry in the LRU, to maybe use */
+ uint64 oldestRequest = PG_UINT64_MAX;
+ int oldestIndex = -1;
+
+ /*
+ * First add the block to the (tiny) top-level LRU cache and see if it's
+ * part of a sequential pattern. In this case we just ignore the block and
+ * don't prefetch it - we expect read-ahead to do a better job.
+ *
+ * XXX Maybe we should still add the block to the hybrid cache, in case we
+ * happen to access it later? That might help if we first scan a lot of
+ * the table sequentially, and then randomly. Not sure that's very likely
+ * with index access, though.
+ */
+ if (index_prefetch_is_sequential(prefetch, block))
+ {
+ prefetch->countSkipSequential++;
+ return true;
+ }
+
+ /*
+ * See if we recently prefetched this block - we simply scan the LRU
+ * linearly. While doing that, we also track the oldest entry, so that we
+ * know where to put the block if we don't find a matching entry.
+ */
+ for (int i = 0; i < PREFETCH_LRU_SIZE; i++)
+ {
+ entry = &prefetch->prefetchCache[lru * PREFETCH_LRU_SIZE + i];
+
+ /* Is this the oldest prefetch request in this LRU? */
+ if (entry->request < oldestRequest)
+ {
+ oldestRequest = entry->request;
+ oldestIndex = i;
+ }
+
+ /*
+ * If the entry is unused (identified by request being set to 0),
+ * we're done. Notice the field is uint64, so empty entry is
+ * guaranteed to be the oldest one.
+ */
+ if (entry->request == 0)
+ continue;
+
+ /* Is this entry for the same block as the current request? */
+ if (entry->block == block)
+ {
+ bool prefetched;
+
+ /*
+ * Is the old request sufficiently recent? If yes, we treat the
+ * block as already prefetched.
+ *
+ * XXX We do add the cache size to the request in order not to
+ * have issues with uint64 underflows.
+ */
+ prefetched = ((entry->request + PREFETCH_CACHE_SIZE) >= prefetch->prefetchReqNumber);
+
+ /* Update the request number. */
+ entry->request = ++prefetch->prefetchReqNumber;
+
+ prefetch->countSkipCached += (prefetched) ? 1 : 0;
+
+ return prefetched;
+ }
+ }
+
+ /*
+ * We didn't find the block in the LRU, so store it either in an empty
+ * entry, or in the "oldest" prefetch request in this LRU.
+ */
+ Assert((oldestIndex >= 0) && (oldestIndex < PREFETCH_LRU_SIZE));
+
+ /* FIXME do a nice macro */
+ entry = &prefetch->prefetchCache[lru * PREFETCH_LRU_SIZE + oldestIndex];
+
+ entry->block = block;
+ entry->request = ++prefetch->prefetchReqNumber;
+
+ /* not in the prefetch cache */
+ return false;
+}
+
/*
* index_prefetch
* Prefetch the TID, unless it's sequential or recently prefetched.
@@ -1237,13 +1379,35 @@ index_prefetch_is_sequential(IndexPrefetch prefetch, BlockNumber block)
*
* XXX Maybe we could/should also prefetch the next index block, e.g. stored
* in BTScanPosData.nextPage.
+ *
+ * XXX Could we tune the cache size based on execution statistics? We have
+ * a cache of limited size (PREFETCH_CACHE_SIZE = 1024 by default), but
+ * how do we know it's the right size? Ideally, we'd have a cache large
+ * enough to track actually cached blocks. If the OS caches 10240 pages,
+ * then we may do 90% of prefetch requests unnecessarily. Or maybe there's
+ * a lot of contention, blocks are evicted quickly, and 90% of the blocks
+ * in the cache are not actually cached anymore? But we do have a concept
+ * of sequential request ID (PrefetchCacheEntry->request), which gives us
+ * information about "age" of the last prefetch. Now it's used only when
+ * evicting entries (to keep the more recent one), but maybe we could also
+ * use it when deciding if the page is cached. Right now any block that's
+ * in the cache is considered cached and not prefetched, but maybe we could
+ * have "max age", and tune it based on feedback from reading the blocks
+ * later. For example, if we find the block in cache and decide not to
+ * prefetch it, but then later find we have to do I/O, it means our cache
+ * is too large. And we could "reduce" the maximum age (measured from the
+ * current prefetchReqNumber value), so that only more recent blocks would
+ * be considered cached. Not sure about the opposite direction, where we
+ * decide to prefetch a block - AFAIK we don't have a way to determine if
+ * I/O was needed or not in this case (so we can't increase the max age).
+ * But maybe we could di that somehow speculatively, i.e. increase the
+ * value once in a while, and see what happens.
*/
static void
index_prefetch(IndexScanDesc scan, ItemPointer tid, bool skip_all_visible, bool *all_visible)
{
IndexPrefetch prefetch = scan->xs_prefetch;
BlockNumber block;
- PrefetchBufferResult result;
/* by default not all visible (or we didn't check) */
*all_visible = false;
@@ -1295,28 +1459,6 @@ index_prefetch(IndexScanDesc scan, ItemPointer tid, bool skip_all_visible, bool
return;
}
- /*
- * Now also check if the blocks to prefetch are in a sequential pattern.
- * We do it here because we need to do this check before PrefetchBuffer
- * initiates the prefetch, and we it can't do this easily (as it doesn't
- * know in what context it's called in). So we do it here.
- *
- * We use a tiny LRU cache and see if the blocks follow a sequential
- * pattern - if it's the same as the previous block, or if the last
- * couple blocks are a continguous sequence, we don't prefetch it.
- */
- if (index_prefetch_is_sequential(prefetch, block))
- {
- prefetch->countSkipSequential++;
- return;
- }
-
- /* XXX shouldn't this be before the VM / sequenqial check? */
- prefetch->countAll++;
-
- /* OK, try prefetching the block. */
- result = PrefetchBuffer(scan->heapRelation, MAIN_FORKNUM, block);
-
/*
* Do not prefetch the same block over and over again,
*
@@ -1324,11 +1466,15 @@ index_prefetch(IndexScanDesc scan, ItemPointer tid, bool skip_all_visible, bool
* to a sequence ID). It's not expensive (the block is in page cache
* already, so no I/O), but it's not free either.
*/
- if (result.initiated_io)
+ if (!index_prefetch_add_cache(prefetch, block))
{
prefetch->countPrefetch++;
+
+ PrefetchBuffer(scan->heapRelation, MAIN_FORKNUM, block);
pgBufferUsage.blks_prefetches++;
}
+
+ prefetch->countAll++;
}
/* ----------------
@@ -1462,5 +1608,6 @@ index_prefetch_get_tid(IndexScanDesc scan, ScanDirection direction, bool *all_vi
Assert(ItemPointerEquals(tid, &scan->xs_heaptid));
}
+ /* Return the TID of the tuple we found. */
return &scan->xs_heaptid;
}
diff --git a/src/backend/storage/buffer/bufmgr.c b/src/backend/storage/buffer/bufmgr.c
index 74da9c1376b..f7c67d504cd 100644
--- a/src/backend/storage/buffer/bufmgr.c
+++ b/src/backend/storage/buffer/bufmgr.c
@@ -567,20 +567,8 @@ PrefetchSharedBuffer(SMgrRelation smgr_reln,
/*
* Try to initiate an asynchronous read. This returns false in
* recovery if the relation file doesn't exist.
- *
- * But first check if the block is already present in page cache.
- *
- * FIXME This breaks prefetch from recovery. Apparently that expects
- * the prefetch to initiate the I/O, otherwise it fails with. But
- * XLogPrefetcherNextBlock checks initiated_io, and may fail with:
- *
- * FATAL: could not prefetch relation 1663/16384/16401 block 83758
- *
- * So maybe just fake the initiated_io=true in this case? Or not do
- * this when in recovery.
*/
if ((io_direct_flags & IO_DIRECT_DATA) == 0 &&
- !smgrcached(smgr_reln, forkNum, blockNum) &&
smgrprefetch(smgr_reln, forkNum, blockNum))
{
result.initiated_io = true;
diff --git a/src/backend/storage/file/fd.c b/src/backend/storage/file/fd.c
index 2c51a3376f3..f691ba09321 100644
--- a/src/backend/storage/file/fd.c
+++ b/src/backend/storage/file/fd.c
@@ -78,7 +78,6 @@
#include <sys/resource.h> /* for getrlimit */
#include <sys/stat.h>
#include <sys/types.h>
-#include <sys/uio.h>
#ifndef WIN32
#include <sys/mman.h>
#endif
@@ -2084,45 +2083,6 @@ retry:
#endif
}
-/*
- * FileCached - check if a given range of the file is in page cache.
- *
- * XXX relies on preadv2, probably needs to be checked by configure
- */
-bool
-FileCached(File file, off_t offset, off_t amount, uint32 wait_event_info)
-{
-#if defined(USE_POSIX_FADVISE) && defined(POSIX_FADV_WILLNEED)
- int returnCode;
- size_t readlen;
- char buffer[BLCKSZ];
- struct iovec iov[1];
-
- Assert(FileIsValid(file));
-
- DO_DB(elog(LOG, "FilePrefetch: %d (%s) " INT64_FORMAT " " INT64_FORMAT,
- file, VfdCache[file].fileName,
- (int64) offset, (int64) amount));
-
- returnCode = FileAccess(file);
- if (returnCode < 0)
- return false;
-
- /* XXX not sure if this ensures proper buffer alignment */
- iov[0].iov_base = &buffer;
- iov[0].iov_len = amount;
-
- pgstat_report_wait_start(wait_event_info);
- readlen = preadv2(VfdCache[file].fd, iov, 1, offset, RWF_NOWAIT);
- pgstat_report_wait_end();
-
- return (readlen == amount);
-#else
- Assert(FileIsValid(file));
- return false;
-#endif
-}
-
void
FileWriteback(File file, off_t offset, off_t nbytes, uint32 wait_event_info)
{
diff --git a/src/backend/storage/smgr/md.c b/src/backend/storage/smgr/md.c
index 16a7c424683..fdecbad1709 100644
--- a/src/backend/storage/smgr/md.c
+++ b/src/backend/storage/smgr/md.c
@@ -736,33 +736,6 @@ mdprefetch(SMgrRelation reln, ForkNumber forknum, BlockNumber blocknum)
return true;
}
-/*
- * mdcached() -- Check if the whole block is already available in page cache.
- */
-bool
-mdcached(SMgrRelation reln, ForkNumber forknum, BlockNumber blocknum)
-{
-#ifdef USE_PREFETCH
- off_t seekpos;
- MdfdVec *v;
-
- Assert((io_direct_flags & IO_DIRECT_DATA) == 0);
-
- v = _mdfd_getseg(reln, forknum, blocknum, false,
- InRecovery ? EXTENSION_RETURN_NULL : EXTENSION_FAIL);
- if (v == NULL)
- return false;
-
- seekpos = (off_t) BLCKSZ * (blocknum % ((BlockNumber) RELSEG_SIZE));
-
- Assert(seekpos < (off_t) BLCKSZ * RELSEG_SIZE);
-
- (void) FileCached(v->mdfd_vfd, seekpos, BLCKSZ, WAIT_EVENT_DATA_FILE_PREFETCH);
-#endif /* USE_PREFETCH */
-
- return true;
-}
-
/*
* mdread() -- Read the specified block from a relation.
*/
diff --git a/src/backend/storage/smgr/smgr.c b/src/backend/storage/smgr/smgr.c
index 209518aae01..5d0f3d515c3 100644
--- a/src/backend/storage/smgr/smgr.c
+++ b/src/backend/storage/smgr/smgr.c
@@ -55,8 +55,6 @@ typedef struct f_smgr
BlockNumber blocknum, int nblocks, bool skipFsync);
bool (*smgr_prefetch) (SMgrRelation reln, ForkNumber forknum,
BlockNumber blocknum);
- bool (*smgr_cached) (SMgrRelation reln, ForkNumber forknum,
- BlockNumber blocknum);
void (*smgr_read) (SMgrRelation reln, ForkNumber forknum,
BlockNumber blocknum, void *buffer);
void (*smgr_write) (SMgrRelation reln, ForkNumber forknum,
@@ -82,7 +80,6 @@ static const f_smgr smgrsw[] = {
.smgr_extend = mdextend,
.smgr_zeroextend = mdzeroextend,
.smgr_prefetch = mdprefetch,
- .smgr_cached = mdcached,
.smgr_read = mdread,
.smgr_write = mdwrite,
.smgr_writeback = mdwriteback,
@@ -553,22 +550,6 @@ smgrprefetch(SMgrRelation reln, ForkNumber forknum, BlockNumber blocknum)
return smgrsw[reln->smgr_which].smgr_prefetch(reln, forknum, blocknum);
}
-/*
- * smgrcached() -- Check if the specified block is already in page cache.
- */
-bool
-smgrcached(SMgrRelation reln, ForkNumber forknum, BlockNumber blocknum)
-{
- /*
- * In recovery we consider the blocks not cached, so that PrefetchSharedBuffer
- * initiates the I/O. XLogPrefetcherNextBlock relies on that.
- */
- if (InRecovery)
- return false;
-
- return smgrsw[reln->smgr_which].smgr_cached(reln, forknum, blocknum);
-}
-
/*
* smgrread() -- read a particular block from a relation into the supplied
* buffer.
diff --git a/src/include/access/genam.h b/src/include/access/genam.h
index db1dc9c44b6..b5dbe971770 100644
--- a/src/include/access/genam.h
+++ b/src/include/access/genam.h
@@ -247,7 +247,23 @@ typedef struct PrefetchCacheEntry {
} PrefetchCacheEntry;
/*
- * Used to detect sequential patterns (to not prefetch in this case).
+ * Size of the cache of recently prefetched blocks - shouldn't be too
+ * small or too large. 1024 seems about right, it covers ~8MB of data.
+ * It's somewhat arbitrary, there's no particular formula saying it
+ * should not be higher/lower.
+ *
+ * The cache is structured as an array of small LRU caches, so the total
+ * size needs to be a multiple of LRU size. The LRU should be tiny to
+ * keep linear search cheap enough.
+ *
+ * XXX Maybe we could consider effective_cache_size or something?
+ */
+#define PREFETCH_LRU_SIZE 8
+#define PREFETCH_LRU_COUNT 128
+#define PREFETCH_CACHE_SIZE (PREFETCH_LRU_SIZE * PREFETCH_LRU_COUNT)
+
+/*
+ * Used to detect sequential patterns (and disable prefetching).
*/
#define PREFETCH_QUEUE_HISTORY 8
#define PREFETCH_SEQ_PATTERN_BLOCKS 4
@@ -303,6 +319,13 @@ typedef struct IndexPrefetchData
uint64 blockIndex; /* index in the block (points to the first
* empty entry)*/
+ /*
+ * Cache of recently prefetched blocks, organized as a hash table of
+ * small LRU caches.
+ */
+ uint64 prefetchReqNumber;
+ PrefetchCacheEntry prefetchCache[PREFETCH_CACHE_SIZE];
+
} IndexPrefetchData;
#define PREFETCH_QUEUE_INDEX(a) ((a) % (MAX_IO_CONCURRENCY))
diff --git a/src/include/storage/fd.h b/src/include/storage/fd.h
index c96a24dddd3..d9d5d9da5fb 100644
--- a/src/include/storage/fd.h
+++ b/src/include/storage/fd.h
@@ -105,7 +105,6 @@ extern File PathNameOpenFilePerm(const char *fileName, int fileFlags, mode_t fil
extern File OpenTemporaryFile(bool interXact);
extern void FileClose(File file);
extern int FilePrefetch(File file, off_t offset, off_t amount, uint32 wait_event_info);
-extern bool FileCached(File file, off_t offset, off_t amount, uint32 wait_event_info);
extern int FileRead(File file, void *buffer, size_t amount, off_t offset, uint32 wait_event_info);
extern int FileWrite(File file, const void *buffer, size_t amount, off_t offset, uint32 wait_event_info);
extern int FileSync(File file, uint32 wait_event_info);
diff --git a/src/include/storage/md.h b/src/include/storage/md.h
index 8dc1382471e..941879ee6a8 100644
--- a/src/include/storage/md.h
+++ b/src/include/storage/md.h
@@ -32,8 +32,6 @@ extern void mdzeroextend(SMgrRelation reln, ForkNumber forknum,
BlockNumber blocknum, int nblocks, bool skipFsync);
extern bool mdprefetch(SMgrRelation reln, ForkNumber forknum,
BlockNumber blocknum);
-extern bool mdcached(SMgrRelation reln, ForkNumber forknum,
- BlockNumber blocknum);
extern void mdread(SMgrRelation reln, ForkNumber forknum, BlockNumber blocknum,
void *buffer);
extern void mdwrite(SMgrRelation reln, ForkNumber forknum,
diff --git a/src/include/storage/smgr.h b/src/include/storage/smgr.h
index 7fbed2a4291..a9a179aabac 100644
--- a/src/include/storage/smgr.h
+++ b/src/include/storage/smgr.h
@@ -96,8 +96,6 @@ extern void smgrzeroextend(SMgrRelation reln, ForkNumber forknum,
BlockNumber blocknum, int nblocks, bool skipFsync);
extern bool smgrprefetch(SMgrRelation reln, ForkNumber forknum,
BlockNumber blocknum);
-extern bool smgrcached(SMgrRelation reln, ForkNumber forknum,
- BlockNumber blocknum);
extern void smgrread(SMgrRelation reln, ForkNumber forknum,
BlockNumber blocknum, void *buffer);
extern void smgrwrite(SMgrRelation reln, ForkNumber forknum,
--
2.42.0
[image/png] point-0-ios-improvement-small.png (187.7K, 9-point-0-ios-improvement-small.png)
download | view image
[image/png] point-4-regressions-small.png (221.2K, 10-point-4-regressions-small.png)
download | view image
view thread (10+ messages) latest in thread
reply
Reply instructions:
You may reply publicly to this message via plain-text email
using any one of the following methods:
* Reply to all the recipients using the --to and --cc options:
reply via email
To: [email protected]
Cc: [email protected], [email protected], [email protected], [email protected]
Subject: Re: index prefetching
In-Reply-To: <[email protected]>
* Save the following mbox file, import it into your mail client,
and reply-to-all from there: mbox
This inbox is served by agora; see mirroring instructions
for how to clone and mirror all data and code used for this inbox
