Hi guys,
There seems to be some very interesting stuff here, I have to try to
catch up with your analysis Andres.
In the meantime.
I am sharing the results I have got on a well behaved Linux system.
No sophisticated algorithm here but evicting OS cache helps to verify the
benefit of prefetching at a much smaller scale, and I think this is useful
% gcc drop_cache.c -o drop_cache;
% sudo chown root:root drop_cache;
% sudo chmod 4755 drop_cache;
I was executing like this
python3 .../run_regression_test.py --port 5433 --iterations 10 \
--columns sequential,random --workers 0 --evict os,off \
--payload-size 50 \
--rows 10000 \
--reset \
--ntables 5

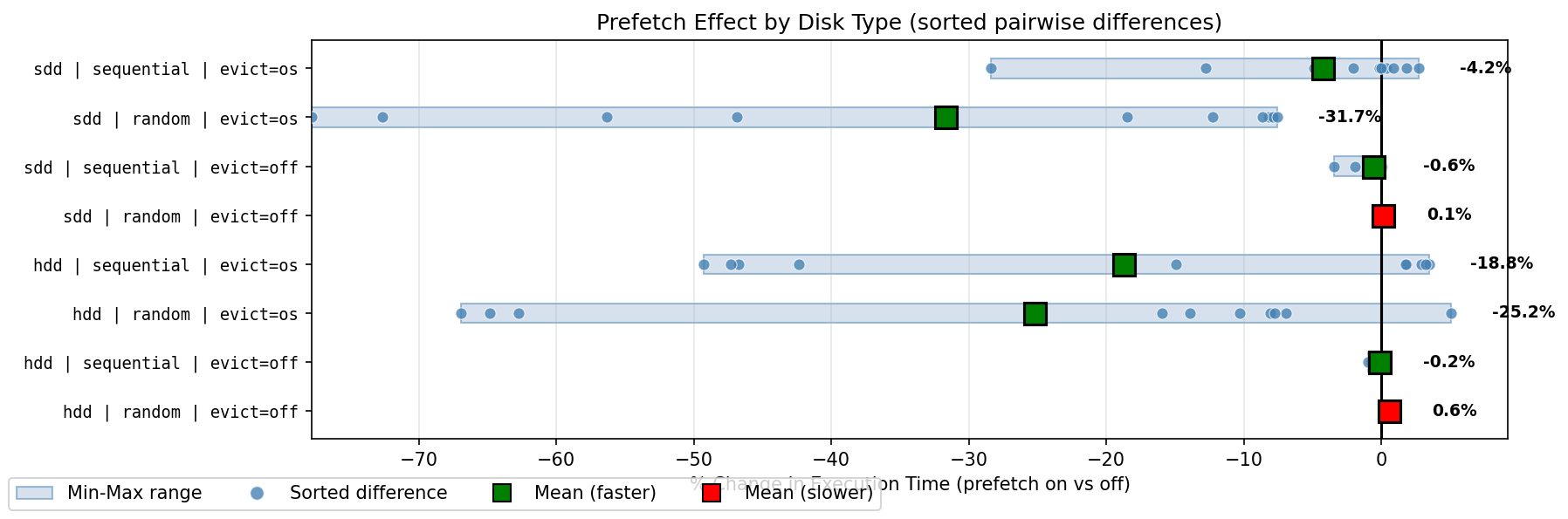

1 table: significant benefit with HDD cold, SSD random cold access.

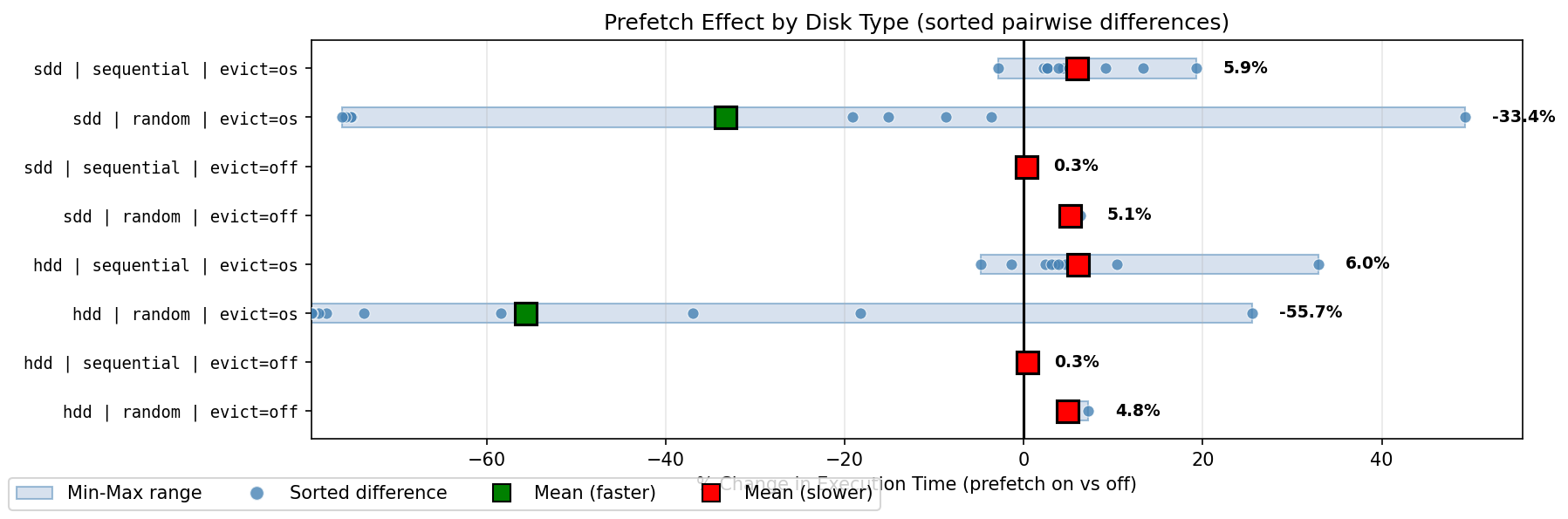

5 tables: significant benefit for random cold access. Somewhat detrimental
for sequential cold access, and random hot access.

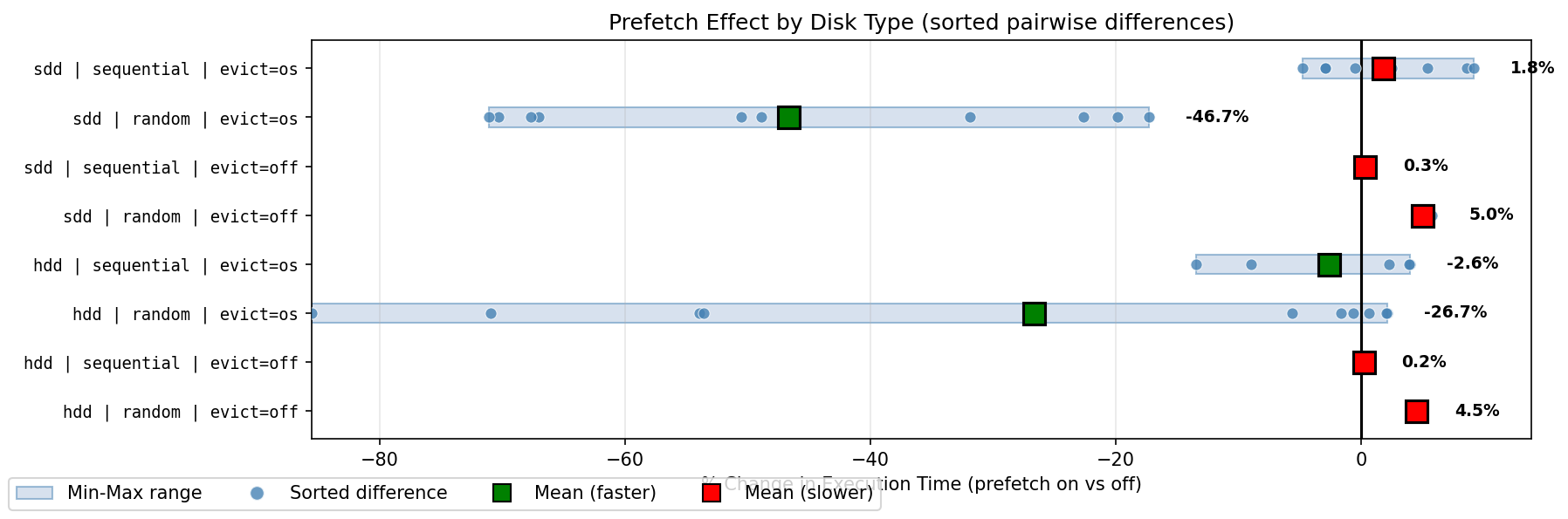

10 tables: significant benefit for random cold access. Slightly better than
5 tables for cold sequential access, and somewhat detrimental for random
hot access.
These results are hard to explain, but maybe Andres has the answer:
> I think this specific issue is a bit different, because today you get
> drastically different behaviour if you have
>
> a) [miss, (miss, hit)+]
> vs
> b) [(miss, hit)+]
Tomas said
> I think a "proper" solution would require some sort of cost model for
> the I/O part, so that we can schedule the I/Os just so that the I/O
> completes right before we actually need the page.
I dare to ask
Why not use this on a feedback loop?
while (!current_buffer.ready && reasonable to prefetch) {
fetch next index tuple.
if necessary prefetch one more buffer
}
I also dare to ask
Is it possible to skip an unavailable buffer and gain time processing the
rows that will be needed afterwards?
This could also help by releasing buffers more quickly if they need to be
recycled.
Regards,
Alexandre
Attachments:
[application/octet-stream] drop_cache.c (884B, 3-drop_cache.c)
download
[text/x-python-script] run_regression_test.py (9.9K, 4-run_regression_test.py)
download | inline:
#!/usr/bin/env python3
"""
Run prefetch regression tests.
Usage:
python run_regression_test.py [options]
Examples:
python run_regression_test.py --iterations=5
python run_regression_test.py --evict=off,pg --workers=0,2
python run_regression_test.py --columns=sequential,random --reset
"""
import argparse
import subprocess
import itertools
import random
import os
import psycopg
import pandas as pd
from math import gcd
def parse_args():
p = argparse.ArgumentParser(description='Run prefetch regression tests')
p.add_argument('--iterations', '-n', type=int, default=10,
help='Number of test iterations (default: 10)')
p.add_argument('--columns', '-c', type=str, default='sequential,periodic,random',
help='Columns to test (default: sequential,periodic,random)')
p.add_argument('--workers', '-w', type=str, default='0,2',
help='Worker counts to test (default: 0,2)')
p.add_argument('--evict', '-e', type=str, default='off',
help='Evict modes: off,pg,os or "all" (default: off)')
p.add_argument('--rows', '-r', type=int, default=100000,
help='Number of rows in test table (default: 100000)')
p.add_argument('--payload-size', '-ps', type=int, default=50,
help='Size of payload in test table (default: 50)')
p.add_argument('--reset', action='store_true',
help='Reset tables before running')
p.add_argument('--dbname', '--db', '-d', type=str, default='postgres',
help='Database name (default: postgres)')
p.add_argument('--host', '-H', type=str, default='/tmp',
help='Database host (default: /tmp)')
p.add_argument('--port', '-p', type=int, default=None,
help='Database port (default: use socket)')
p.add_argument('--ntables', '-t', type=int, default=1,
help='Number of tables to join (default: 1)')
return p.parse_args()
def setup_tables(cur, num_rows, payload_size, ntables=1, reset=False):
"""Create tables and populate test data."""
if reset:
cur.execute('DROP TABLE IF EXISTS prefetch_test_results')
for i in range(1, 100): # Drop up to 100 tables
cur.execute(f'DROP TABLE IF EXISTS prefetch_test_data_{i}')
cur.execute('DROP TABLE IF EXISTS prefetch_test_data')
cur.execute('''
CREATE EXTENSION IF NOT EXISTS pg_buffercache
''');
cur.execute('''
CREATE TABLE IF NOT EXISTS prefetch_test_results (
id SERIAL PRIMARY KEY,
run_timestamp TIMESTAMPTZ DEFAULT now(),
io_method TEXT NOT NULL,
num_workers INT NOT NULL DEFAULT 0,
prefetch_enabled BOOLEAN NOT NULL,
evict_mode TEXT NOT NULL DEFAULT 'off',
column_name TEXT NOT NULL,
iteration INT,
execution_time_ms NUMERIC,
rows_returned BIGINT,
blks_hit BIGINT,
blks_read BIGINT
)
''')
# Create multiple tables for join tests
for t in range(1, ntables + 1):
table_name = f'prefetch_test_data_{t}'
cur.execute(f'''
CREATE TABLE IF NOT EXISTS {table_name} (
sequential INT,
periodic INT,
random INT,
payload TEXT
)
''')
cur.execute(f"SELECT count(*) FROM {table_name}")
row_count = cur.fetchone()[0]
if row_count == 0:
print(f"Populating {table_name} ({num_rows} rows)...")
r = min(10000, num_rows // 5)
while gcd(r, num_rows) != 1:
r += 1
cur.execute(f'''
INSERT INTO {table_name} (sequential, periodic, random, payload)
SELECT
i,
((i * {r}::bigint) % {num_rows} + 1)::int,
row_number() OVER (ORDER BY random()),
(SELECT string_agg((i*j)::text, '+') FROM generate_series(1, {payload_size}) j)
FROM generate_series(1, {num_rows}) i
ORDER BY i;
''')
cur.execute(f"CREATE UNIQUE INDEX IF NOT EXISTS idx_{table_name}_sequential ON {table_name}(sequential)")
cur.execute(f"CREATE UNIQUE INDEX IF NOT EXISTS idx_{table_name}_periodic ON {table_name}(periodic)")
cur.execute(f"CREATE UNIQUE INDEX IF NOT EXISTS idx_{table_name}_random ON {table_name}(random)")
print(f"{table_name} populated.")
else:
print(f"{table_name} exists: {row_count} rows")
def purge_os_cache():
script = os.path.join(os.path.dirname(__file__), 'drop_cache')
# specially at the first time it can take a while to sync
subprocess.run([script], capture_output=True, timeout=20)
def evict_pg_buffers(cur):
"""Evict PostgreSQL shared buffers for test tables."""
cur.execute('''
SELECT count(pg_buffercache_evict(bufferid))
FROM pg_buffercache b
JOIN pg_class c ON b.relfilenode = pg_relation_filenode(c.oid)
WHERE c.relname LIKE 'prefetch_test_data%'
''').fetchall()
def apply_eviction(cur, evict_mode):
"""Apply eviction based on mode."""
if evict_mode == 'pg':
evict_pg_buffers(cur)
elif evict_mode == 'os':
evict_pg_buffers(cur)
purge_os_cache()
def run_test(cur, column_name, prefetch_enabled, num_workers, evict_mode, iteration, ntables=1):
"""Run a single test and record results."""
cur.execute(f"SET enable_indexscan_prefetch = {'on' if prefetch_enabled else 'off'}")
cur.execute(f"SET max_parallel_workers_per_gather = {num_workers}")
cur.execute("SET enable_bitmapscan = off")
cur.execute("SET enable_seqscan = off")
cur.execute("SET enable_indexonlyscan = off")
cur.execute("SET enable_sort = off")
apply_eviction(cur, evict_mode)
# Build query - single table or join
if ntables == 1:
query = f'''
SELECT length(t1.payload) FROM prefetch_test_data_1 t1
ORDER BY t1.{column_name}
'''
else:
# Build JOIN query on the column
tables = [f'prefetch_test_data_{i} t{i}' for i in range(1, ntables + 1)]
joins = [f't1.{column_name} = t{i}.{column_name}' for i in range(2, ntables + 1)]
payloads = [f't{i}.payload' for i in range(1, ntables + 1)]
query = f'''
SELECT {' || '.join([f'length({p})::text' for p in payloads])}
FROM {tables[0]}
{' '.join([f'JOIN {tables[i]} ON {joins[i-1]}' for i in range(1, ntables)])}
ORDER BY t1.{column_name}
'''
cur.execute(f'EXPLAIN (ANALYZE, BUFFERS, FORMAT JSON) {query}')
result = cur.fetchone()[0]
plan = result[0]['Plan']
exec_time = result[0]['Execution Time']
blks_hit = plan.get('Shared Hit Blocks', 0)
blks_read = plan.get('Shared Read Blocks', 0)
rows = plan.get('Actual Rows', 0)
cur.execute("SHOW io_method")
io_method = cur.fetchone()[0]
cur.execute('''
INSERT INTO prefetch_test_results
(io_method, num_workers, prefetch_enabled, evict_mode, column_name,
iteration, execution_time_ms, rows_returned, blks_hit, blks_read)
VALUES (%s, %s, %s, %s, %s, %s, %s, %s, %s, %s)
''', (io_method, num_workers, prefetch_enabled, evict_mode,
column_name, iteration, exec_time, rows, blks_hit, blks_read))
pf = 'Y' if prefetch_enabled else 'N'
print(f" [{column_name}] pf={pf} w={num_workers} evict={evict_mode}: {exec_time:.1f}ms")
def print_summary(cur):
"""Print summary of results."""
df = pd.read_sql('''
WITH avgs AS (
SELECT column_name, io_method, num_workers,
prefetch_enabled AS prefetch, evict_mode AS evict,
count(*) AS n, avg(execution_time_ms) AS ms
FROM prefetch_test_results
GROUP BY column_name, io_method, num_workers, prefetch_enabled, evict_mode
)
SELECT a.column_name, a.io_method, a.num_workers, a.evict, a.n,
round(a.ms::numeric, 1) AS off_ms,
round(b.ms::numeric, 1) AS on_ms,
round(((b.ms - a.ms) / NULLIF(b.ms + a.ms, 0) * 100)::numeric, 1) AS effect_pct
FROM avgs a JOIN avgs b USING (column_name, io_method, num_workers, evict)
WHERE NOT a.prefetch AND b.prefetch
ORDER BY column_name, io_method, num_workers, evict
''', cur.connection)
print("\n" + "=" * 80)
print("SUMMARY: Prefetch Effect (positive = slower)")
print("=" * 80)
print(df.to_string(index=False))
def main():
args = parse_args()
# Parse list arguments
columns = [c.strip() for c in args.columns.split(',')]
workers = [int(w.strip()) for w in args.workers.split(',')]
evict_modes = ['off', 'pg', 'os'] if args.evict == 'all' else [e.strip() for e in args.evict.split(',')]
print(f"Config: iterations={args.iterations}, columns={columns}, workers={workers}, evict={evict_modes}, ntables={args.ntables}")
# Connect
connstr = f"dbname={args.dbname} host={args.host}"
if args.port:
connstr += f" port={args.port}"
conn = psycopg.connect(connstr)
conn.autocommit = True
cur = conn.cursor()
# Setup
setup_tables(cur, args.rows, args.payload_size, args.ntables, args.reset)
# Show io_method
cur.execute("SHOW io_method")
io_method = cur.fetchone()[0]
print(f"\nio_method = {io_method}\n")
# Run tests
prefetch_opts = [False, True]
for i in range(1, args.iterations + 1):
print(f"Iteration {i}/{args.iterations}")
configs = list(itertools.product(columns, workers, evict_modes, prefetch_opts))
# random.shuffle(configs)
for col, w, evict, pf in configs:
run_test(cur, col, pf, w, evict, i, args.ntables)
print()
# Summary
print_summary(cur)
conn.close()
if __name__ == "__main__":
main()
[image/png] 5tables.png (91.7K, 5-5tables.png)
download | view image
[image/png] 1table.png (93.0K, 6-1table.png)
download | view image
[image/png] 10tables.png (90.1K, 7-10tables.png)
download | view image
view thread (87+ messages) latest in thread
reply
Reply instructions:
You may reply publicly to this message via plain-text email
using any one of the following methods:
* Reply to all the recipients using the --to and --cc options:
reply via email
To: [email protected]
Cc: [email protected], [email protected], [email protected], [email protected], [email protected], [email protected], [email protected], [email protected], [email protected], [email protected], [email protected], [email protected]
Subject: Re: index prefetching
In-Reply-To: <CAE8JnxNmKP+iAhfRwt9C8BTHK1KYBUBZLQav5=1wudEzSFmMSg@mail.gmail.com>
* Save the following mbox file, import it into your mail client,
and reply-to-all from there: mbox
This inbox is served by agora; see mirroring instructions
for how to clone and mirror all data and code used for this inbox
