I'm sorry I didn't write for a long time, but I really had a very
difficult month, now I'm fully back to work.
*I was able to implement the patches to the end and moved the
transformation of "OR" expressions to ANY.* I haven't seen a big
difference between them yet, one has a transformation before calculating
selectivity (v7.1-Replace-OR-clause-to-ANY.patch), the other after
(v7.2-Replace-OR-clause-to-ANY.patch). Regression tests are passing, I
don't see any problems with selectivity, nothing has fallen into the
coredump, but I found some incorrect transformations. What is the reason
for these inaccuracies, I have not found, but, to be honest, they look
unusual). Gave the error below.
In the patch, I don't like that I had to drag three libraries from
parsing until I found a way around it.The advantage of this approach
compared to the other ([1]) is that at this stage all possible or
transformations are performed, compared to the patch, where the
transformation was done at the parsing stage. That is, here, for
example, there are such optimizations in the transformation:
I took the common element out of the bracket and the rest is converted
to ANY, while, as noted by Peter Geoghegan, we did not have several
bitmapscans, but only one scan through the array.
postgres=# explain analyze SELECT p1.oid, p1.proname
FROM pg_proc as p1
WHERE prolang = 13 AND prolang=1 OR prolang = 13 AND prolang = 2 OR
prolang = 13 AND prolang = 3;
QUERY PLAN
-------------------------------------------------------------------------------------------------------
Seq Scan on pg_proc p1 (cost=0.00..151.66 rows=1 width=68) (actual
time=1.167..1.168 rows=0 loops=1)
Filter: ((prolang = '13'::oid) AND (prolang = ANY (ARRAY['1'::oid,
'2'::oid, '3'::oid])))
Rows Removed by Filter: 3302
Planning Time: 0.146 ms
Execution Time: 1.191 ms
(5 rows)
*While I was testing, I found some transformations that don't work,
although in my opinion, they should:**
**
**1. First case:*
explain analyze SELECT p1.oid, p1.proname
FROM pg_proc as p1
WHERE prolang = 13 AND prolang=1 OR prolang = 2 AND prolang = 2 OR
prolang = 13 AND prolang = 13;
QUERY PLAN
----------------------------------------------------------------------------------------------------------------------------------------------------------------------
Seq Scan on pg_proc p1 (cost=0.00..180.55 rows=2 width=68) (actual
time=2.959..3.335 rows=89 loops=1)
Filter: (((prolang = '13'::oid) AND (prolang = '1'::oid)) OR
((prolang = '2'::oid) AND (prolang = '2'::oid)) OR ((prolang =
'13'::oid) AND (prolang = '13'::oid)))
Rows Removed by Filter: 3213
Planning Time: 1.278 ms
Execution Time: 3.486 ms
(5 rows)
Should have left only prolang = '13'::oid:
QUERY PLAN
-------------------------------------------------------------------------------------------------------
Seq Scan on pg_proc p1 (cost=0.00..139.28 rows=1 width=68) (actual
time=2.034..2.034 rows=0 loops=1)
Filter: ((prolang = '13'::oid ))
Rows Removed by Filter: 3302
Planning Time: 0.181 ms
Execution Time: 2.079 ms
(5 rows)
*2. Also does not work:*
postgres=# explain analyze SELECT p1.oid, p1.proname
FROM pg_proc as p1
WHERE prolang = 13 OR prolang = 2 AND prolang = 2 OR prolang = 13;
QUERY PLAN
---------------------------------------------------------------------------------------------------------------
Seq Scan on pg_proc p1 (cost=0.00..164.04 rows=176 width=68) (actual
time=2.422..2.686 rows=89 loops=1)
Filter: ((prolang = '13'::oid) OR ((prolang = '2'::oid) AND (prolang
= '2'::oid)) OR (prolang = '13'::oid))
Rows Removed by Filter: 3213
Planning Time: 1.370 ms
Execution Time: 2.799 ms
(5 rows)
Should have left:
Filter: ((prolang = '13'::oid) OR (prolang = '2'::oid))
*3. Or another:*
explain analyze SELECT p1.oid, p1.proname
FROM pg_proc as p1
WHERE prolang = 13 OR prolang=13 OR prolang = 2 AND prolang = 2;
QUERY PLAN
---------------------------------------------------------------------------------------------------------------
Seq Scan on pg_proc p1 (cost=0.00..164.04 rows=176 width=68) (actual
time=2.350..2.566 rows=89 loops=1)
Filter: ((prolang = '13'::oid) OR (prolang = '13'::oid) OR ((prolang
= '2'::oid) AND (prolang = '2'::oid)))
Rows Removed by Filter: 3213
Planning Time: 0.215 ms
Execution Time: 2.624 ms
(5 rows)
Should have left:
Filter: ((prolang = '13'::oid) OR (prolang = '2'::oid))
*Falls into coredump at me:*
explain analyze SELECT p1.oid, p1.proname
FROM pg_proc as p1
WHERE prolang = 13 OR prolang = 2 AND prolang = 2 OR prolang = 13;
explain analyze SELECT p1.oid, p1.proname
FROM pg_proc as p1
WHERE prolang = 13 OR prolang=13 OR prolang = 2 AND prolang = 2;
QUERY PLAN
---------------------------------------------------------------------------------------------------------------
Seq Scan on pg_proc p1 (cost=0.00..164.04 rows=176 width=68) (actual
time=2.350..2.566 rows=89 loops=1)
Filter: ((prolang = '13'::oid) OR (prolang = '13'::oid) OR ((prolang
= '2'::oid) AND (prolang = '2'::oid)))
Rows Removed by Filter: 3213
Planning Time: 0.215 ms
Execution Time: 2.624 ms
(5 rows)
I remind that initially the task was to find an opportunity to optimize
the case of processing a large number of "or" expressions to optimize

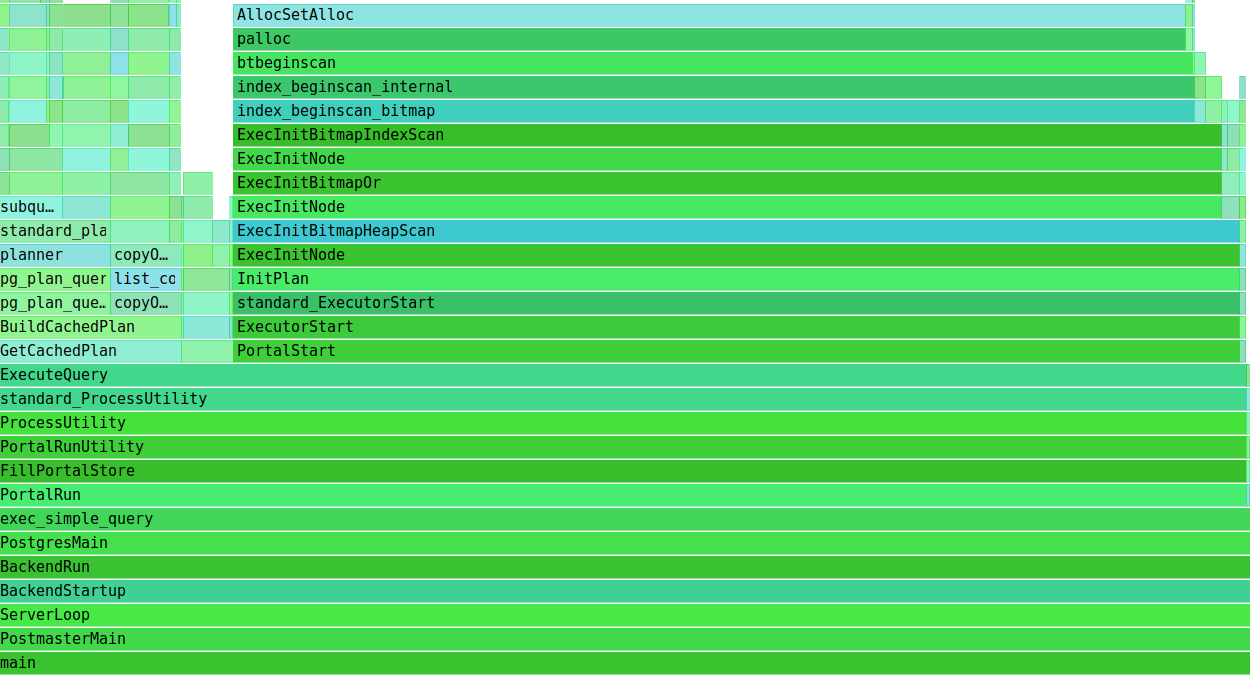

memory consumption. The FlameGraph for executing 50,000 "or"
expressionshas grown 1.4Gb and remains in this state until exiting the

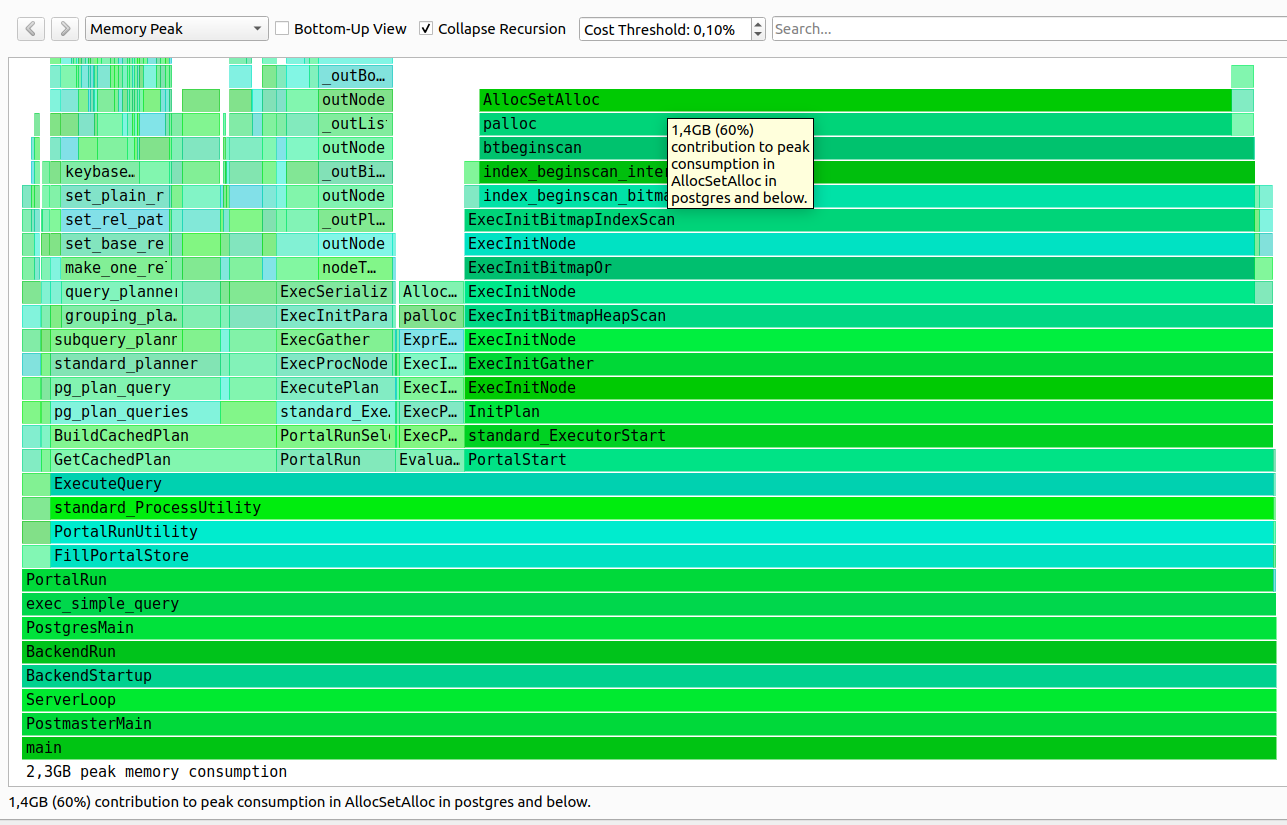

psql session (flamegraph1.png) and it sagged a lot in execution time. If
this case is converted to ANY, the query is executed much faster and
memory is optimized (flamegraph2.png). It may be necessary to use this
approach if there is no support for the framework to process ANY, IN
expressions.
Peter Geoghegan also noticed some development of this patch in terms of
preparing some transformations to optimize the query at the stage of its
execution [0].
[0]
https://www.postgresql.org/message-id/CAH2-Wz%3D9N_4%2BEyhtyFqYQRx4OgVbP%2B1aoYU2JQPVogCir61ZEQ%40ma...
[1]
https://www.postgresql.org/message-id/attachment/149105/v7-Replace-OR-clause-to-ANY-expressions.patc...
Attachments:
[image/png] flamegraph1.png (106.0K, ../[email protected]/3-flamegraph1.png)
download | view image
[image/png] flamegraph2.png (159.5K, ../[email protected]/4-flamegraph2.png)
download | view image
[text/x-patch] v7.1-Replace-OR-clause-to-ANY.patch (9.0K, ../[email protected]/5-v7.1-Replace-OR-clause-to-ANY.patch)
download | inline diff:
From 9e0a0200525e7e72f1a91f658b4674fbf78ea18d Mon Sep 17 00:00:00 2001
From: Alena Rybakina <[email protected]>
Date: Thu, 21 Sep 2023 19:15:42 +0300
Subject: [PATCH] Replace OR clause to ANY expressions. Replace (X=N1) OR
(X=N2) ... with X = ANY(N1, N2) on the stage of the optimiser when we are
still working with a tree expression. Firstly, we do not try to make a
transformation for "non-or" expressions or inequalities and the creation of a
relation with "or" expressions occurs according to the same scenario.
Secondly, we do not make transformations if there are less than set
or_transform_limit. Thirdly, it is worth considering that we consider "or"
expressions only at the current level.
Authors: Alena Rybakina <[email protected]>, Andrey Lepikhov <[email protected]>
Reviewed-by: Peter Geoghegan <[email protected]>, Ranier Vilela <[email protected]>
---
src/backend/optimizer/plan/planner.c | 3 +-
src/backend/optimizer/util/orclauses.c | 232 +++++++++++++++++++++++++
src/include/optimizer/orclauses.h | 2 +-
3 files changed, 235 insertions(+), 2 deletions(-)
diff --git a/src/backend/optimizer/plan/planner.c b/src/backend/optimizer/plan/planner.c
index 44efb1f4ebc..80935cec7aa 100644
--- a/src/backend/optimizer/plan/planner.c
+++ b/src/backend/optimizer/plan/planner.c
@@ -67,6 +67,7 @@
#include "utils/rel.h"
#include "utils/selfuncs.h"
#include "utils/syscache.h"
+#include "optimizer/orclauses.h"
/* GUC parameters */
double cursor_tuple_fraction = DEFAULT_CURSOR_TUPLE_FRACTION;
@@ -1169,7 +1170,7 @@ preprocess_expression(PlannerInfo *root, Node *expr, int kind)
if (kind == EXPRKIND_QUAL)
{
expr = (Node *) canonicalize_qual((Expr *) expr, false);
-
+expr = transform_ors(root, (Expr *) expr);
#ifdef OPTIMIZER_DEBUG
printf("After canonicalize_qual()\n");
pprint(expr);
diff --git a/src/backend/optimizer/util/orclauses.c b/src/backend/optimizer/util/orclauses.c
index 6ef9d14b902..805f4b7294a 100644
--- a/src/backend/optimizer/util/orclauses.c
+++ b/src/backend/optimizer/util/orclauses.c
@@ -22,6 +22,10 @@
#include "optimizer/optimizer.h"
#include "optimizer/orclauses.h"
#include "optimizer/restrictinfo.h"
+#include "utils/lsyscache.h"
+#include "parser/parse_expr.h"
+#include "parser/parse_coerce.h"
+#include "parser/parse_oper.h"
static bool is_safe_restriction_clause_for(RestrictInfo *rinfo, RelOptInfo *rel);
@@ -29,7 +33,235 @@ static Expr *extract_or_clause(RestrictInfo *or_rinfo, RelOptInfo *rel);
static void consider_new_or_clause(PlannerInfo *root, RelOptInfo *rel,
Expr *orclause, RestrictInfo *join_or_rinfo);
+typedef struct OrClauseGroupEntry
+{
+ Node *node;
+ List *consts;
+ Oid scalar_type;
+ Oid opno;
+ Expr *expr;
+} OrClauseGroupEntry;
+
+static Node *
+transform_ors_for_rel(BoolExpr *expr_orig)
+{
+ List *or_list = NIL;
+ List *groups_list = NIL;
+ ListCell *lc;
+
+ /* If this is not an 'OR' expression, skip the transformation */
+ if (expr_orig->boolop != OR_EXPR ||
+ list_length(expr_orig->args) < 1)
+ return (Node*) expr_orig;
+
+ foreach(lc, expr_orig->args)
+ {
+ Node *orqual = lfirst(lc);
+ Node *const_expr;
+ Node *nconst_expr;
+ ListCell *lc_groups;
+ OrClauseGroupEntry *gentry;
+
+ if (!IsA(orqual, OpExpr))
+ {
+ or_list = lappend(or_list, orqual);
+ continue;
+ }
+
+ /*
+ * Detect the constant side of the clause. Recall non-constant
+ * expression can be made not only with Vars, but also with Params,
+ * which is not bonded with any relation. Thus, we detect the const
+ * side - if another side is constant too, the orqual couldn't be
+ * an OpExpr.
+ * Get pointers to constant and expression sides of the qual.
+ */
+ if (IsA(get_leftop(orqual), Const))
+ {
+ nconst_expr = get_rightop(orqual);
+ const_expr = get_leftop(orqual);
+ }
+ else if (IsA(get_rightop(orqual), Const))
+ {
+ const_expr = get_rightop(orqual);
+ nconst_expr = get_leftop(orqual);
+ }
+ else
+ {
+ or_list = lappend(or_list, orqual);
+ continue;
+ }
+
+ if (!op_mergejoinable(((OpExpr *) orqual)->opno, exprType(nconst_expr)))
+ {
+ or_list = lappend(or_list, orqual);
+ continue;
+ }
+
+ /*
+ * At this point we definitely have a transformable clause.
+ * Classify it and add into specific group of clauses, or create new
+ * group.
+ * TODO: to manage complexity in the case of many different clauses
+ * (X1=C1) OR (X2=C2 OR) ... (XN = CN) we could invent something
+ * like a hash table. But also we believe, that the case of many
+ * different variable sides is very rare.
+ */
+ foreach(lc_groups, groups_list)
+ {
+ OrClauseGroupEntry *v = (OrClauseGroupEntry *) lfirst(lc_groups);
+
+ Assert(v->node != NULL);
+
+ if (equal(v->node, nconst_expr))
+ {
+ v->consts = lappend(v->consts, const_expr);
+ nconst_expr = NULL;
+ break;
+ }
+ }
+
+ if (nconst_expr == NULL)
+ /*
+ * The clause classified successfully and added into existed
+ * clause group.
+ */
+ continue;
+
+ /* New clause group needed */
+ gentry = palloc(sizeof(OrClauseGroupEntry));
+ gentry->node = nconst_expr;
+ gentry->consts = list_make1(const_expr);
+ gentry->expr = (Expr *) orqual;
+ groups_list = lappend(groups_list, (void *) gentry);
+ }
+ if (groups_list == NIL)
+ {
+ /*
+ * No any transformations possible with this list of arguments. Here we
+ * already made all underlying transformations. Thus, just return the
+ * transformed bool expression.
+ */
+ return (Node *) expr_orig;
+ }
+ else
+ {
+ ListCell *lc_args;
+
+ /* Let's convert each group of clauses to an IN operation. */
+
+ /*
+ * Go through the list of groups and convert each, where number of
+ * consts more than 1. trivial groups move to OR-list again
+ */
+
+ foreach(lc_args, groups_list)
+ {
+ OrClauseGroupEntry *gentry = (OrClauseGroupEntry *) lfirst(lc_args);
+ List *allexprs;
+ Oid scalar_type;
+ Oid array_type;
+
+ Assert(list_length(gentry->consts) > 0);
+
+ if (list_length(gentry->consts) == 1)
+ {
+ /*
+ * Only one element in the class. Return rinfo into the BoolExpr
+ * args list unchanged.
+ */
+ list_free(gentry->consts);
+ or_list = lappend(or_list, gentry->expr);
+ continue;
+ }
+
+ /*
+ * Do the transformation.
+ *
+ * First of all, try to select a common type for the array elements.
+ * Note that since the LHS' type is first in the list, it will be
+ * preferred when there is doubt (eg, when all the RHS items are
+ * unknown literals).
+ *
+ * Note: use list_concat here not lcons, to avoid damaging rnonvars.
+ *
+ * As a source of insides, use make_scalar_array_op()
+ */
+ allexprs = list_concat(list_make1(gentry->node), gentry->consts);
+ scalar_type = select_common_type(NULL, allexprs, NULL, NULL);
+
+ if (scalar_type != RECORDOID && OidIsValid(scalar_type))
+ array_type = get_array_type(scalar_type);
+ else
+ array_type = InvalidOid;
+
+ if (array_type != InvalidOid)
+ {
+ /*
+ * OK: coerce all the right-hand non-Var inputs to the common
+ * type and build an ArrayExpr for them.
+ */
+ List *aexprs;
+ ArrayExpr *newa;
+ ScalarArrayOpExpr *saopexpr;
+ ListCell *l;
+
+ aexprs = NIL;
+
+ foreach(l, gentry->consts)
+ {
+ Node *rexpr = (Node *) lfirst(l);
+
+ rexpr = coerce_to_common_type(NULL, rexpr,
+ scalar_type,
+ "IN");
+ aexprs = lappend(aexprs, rexpr);
+ }
+
+ newa = makeNode(ArrayExpr);
+ /* array_collid will be set by parse_collate.c */
+ newa->element_typeid = scalar_type;
+ newa->array_typeid = array_type;
+ newa->multidims = false;
+ newa->elements = aexprs;
+ newa->location = -1;
+
+ saopexpr =
+ (ScalarArrayOpExpr *)
+ make_scalar_array_op(NULL,
+ list_make1(makeString((char *) "=")),
+ true,
+ gentry->node,
+ (Node *) newa,
+ -1);
+ saopexpr->inputcollid = exprInputCollation((Node *)gentry->expr);;
+
+ or_list = lappend(or_list, (void *) saopexpr);
+ }
+ else
+ {
+ list_free(gentry->consts);
+ or_list = lappend(or_list, gentry->expr);
+ continue;
+ }
+ }
+
+ list_free_deep(groups_list);
+ }
+
+ /* One more trick: assemble correct clause */
+ return (Node *) ((list_length(or_list) > 1) ?
+ makeBoolExpr(OR_EXPR, or_list, expr_orig->location) :
+ linitial(or_list));
+}
+Node *
+transform_ors(PlannerInfo *root, Expr *jtnode)
+{
+ if (IsA(jtnode, BoolExpr))
+ return transform_ors_for_rel((BoolExpr *) jtnode);
+ return (Node *) jtnode;
+}
/*
* extract_restriction_or_clauses
* Examine join OR-of-AND clauses to see if any useful restriction OR
diff --git a/src/include/optimizer/orclauses.h b/src/include/optimizer/orclauses.h
index f9dbe6a2972..6a232aeb3ed 100644
--- a/src/include/optimizer/orclauses.h
+++ b/src/include/optimizer/orclauses.h
@@ -17,5 +17,5 @@
#include "nodes/pathnodes.h"
extern void extract_restriction_or_clauses(PlannerInfo *root);
-
+extern Node * transform_ors(PlannerInfo *root, Expr *jtnode);
#endif /* ORCLAUSES_H */
--
2.34.1
[text/x-patch] v7.2-Replace-OR-clause-to-ANY.patch (10.2K, ../[email protected]/6-v7.2-Replace-OR-clause-to-ANY.patch)
download | inline diff:
From 84ba19a988447bd5e19132080375101e1ae2e63b Mon Sep 17 00:00:00 2001
From: Alena Rybakina <[email protected]>
Date: Tue, 26 Sep 2023 09:23:44 +0300
Subject: [PATCH] Replace OR clause to ANY expressions. Replace (X=N1) OR
(X=N2) ... with X = ANY(N1, N2) on the stage of the optimiser when we are
still working with a tree expression. Firstly, we do not try to make a
transformation for "non-or" expressions or inequalities and the creation of a
relation with "or" expressions occurs according to the same scenario.
Secondly, we do not make transformations if there are less than set
or_transform_limit. Thirdly, it is worth considering that we consider "or"
expressions only at the current level.
Authors: Alena Rybakina <[email protected]>, Andrey Lepikhov <[email protected]>
Reviewed-by: Peter Geoghegan <[email protected]>, Ranier Vilela <[email protected]>
---
src/backend/optimizer/util/orclauses.c | 295 +++++++++++++++++++++++++
1 file changed, 295 insertions(+)
diff --git a/src/backend/optimizer/util/orclauses.c b/src/backend/optimizer/util/orclauses.c
index 6ef9d14b902..b4ac9370461 100644
--- a/src/backend/optimizer/util/orclauses.c
+++ b/src/backend/optimizer/util/orclauses.c
@@ -22,6 +22,10 @@
#include "optimizer/optimizer.h"
#include "optimizer/orclauses.h"
#include "optimizer/restrictinfo.h"
+#include "utils/lsyscache.h"
+#include "parser/parse_expr.h"
+#include "parser/parse_coerce.h"
+#include "parser/parse_oper.h"
static bool is_safe_restriction_clause_for(RestrictInfo *rinfo, RelOptInfo *rel);
@@ -30,6 +34,292 @@ static void consider_new_or_clause(PlannerInfo *root, RelOptInfo *rel,
Expr *orclause, RestrictInfo *join_or_rinfo);
+int or_transform_limit = 2;
+
+typedef struct OrClauseGroupEntry
+{
+ Node *node;
+ List *consts;
+ Oid scalar_type;
+ Oid opno;
+ Expr *expr;
+} OrClauseGroupEntry;
+
+static List *
+transform_ors(PlannerInfo *root, List *baserestrictinfo)
+{
+ ListCell *lc_clause, *lc_or;
+ List *modified_rinfo = NIL;
+ bool something_changed = false;
+
+
+ foreach (lc_clause, baserestrictinfo)
+ {
+ RestrictInfo *rinfo = lfirst_node(RestrictInfo, lc_clause);
+ RestrictInfo *rinfo_base = copyObject(rinfo);
+ List *groups_list = NIL;
+ OrClauseGroupEntry *gentry;
+ List *or_list = NIL;
+ bool change_apply = false;
+
+ if (!restriction_is_or_clause(rinfo) ||
+ list_length(((BoolExpr *) rinfo->clause)->args) < or_transform_limit)
+ {
+ /* Add a clause without changes */
+ modified_rinfo = lappend(modified_rinfo, copyObject(rinfo));
+ continue;
+ }
+ foreach (lc_or, ((BoolExpr *) rinfo->clause)->args)
+ {
+ Node *orqual = lfirst(lc_or);
+ Node *const_expr;
+ Node *nconst_expr;
+ ListCell *lc_groups;
+
+ /* If this is not an 'OR' expression, skip the transformation */
+ if (!IsA(orqual, OpExpr))
+ {
+ or_list = lappend(or_list, orqual);
+ continue;
+ }
+
+
+ /*
+ * Detect the constant side of the clause. Recall non-constant
+ * expression can be made not only with Vars, but also with Params,
+ * which is not bonded with any relation. Thus, we detect the const
+ * side - if another side is constant too, the orqual couldn't be
+ * an OpExpr.
+ * Get pointers to constant and expression sides of the qual.
+ */
+ if (IsA(get_leftop(orqual), Const))
+ {
+ nconst_expr = get_rightop(orqual);
+ const_expr = get_leftop(orqual);
+ }
+ else if (IsA(get_rightop(orqual), Const))
+ {
+ const_expr = get_rightop(orqual);
+ nconst_expr = get_leftop(orqual);
+ }
+ else
+ {
+ or_list = lappend(or_list, orqual);
+ continue;
+ }
+
+ if (!op_mergejoinable(((OpExpr *) orqual)->opno, exprType(nconst_expr)))
+ {
+ or_list = lappend(or_list, orqual);
+ continue;
+ }
+
+ /*
+ * At this point we definitely have a transformable clause.
+ * Classify it and add into specific group of clauses, or create new
+ * group.
+ * TODO: to manage complexity in the case of many different clauses
+ * (X1=C1) OR (X2=C2 OR) ... (XN = CN) we could invent something
+ * like a hash table. But also we believe, that the case of many
+ * different variable sides is very rare.
+ */
+ foreach(lc_groups, groups_list)
+ {
+ OrClauseGroupEntry *v = (OrClauseGroupEntry *) lfirst(lc_groups);
+
+ Assert(v->node != NULL);
+
+ if (equal(v->node, nconst_expr))
+ {
+ v->consts = lappend(v->consts, const_expr);
+ nconst_expr = NULL;
+ break;
+ }
+ }
+
+ if (nconst_expr == NULL)
+ /*
+ * The clause classified successfully and added into existed
+ * clause group.
+ */
+ continue;
+
+ /* New clause group needed */
+ gentry = palloc(sizeof(OrClauseGroupEntry));
+ gentry->node = nconst_expr;
+ gentry->consts = list_make1(const_expr);
+ gentry->expr = (Expr *) orqual;
+ groups_list = lappend(groups_list, (void *) gentry);
+ }
+
+ if (groups_list == NIL)
+ {
+ /*
+ * No any transformations possible with this list of arguments. Here we
+ * already made all underlying transformations. Thus, just return the
+ * transformed bool expression.
+ */
+ modified_rinfo = lappend(modified_rinfo, copyObject(rinfo));
+ continue;
+ }
+ else
+ {
+ ListCell *lc_args;
+
+ /* Let's convert each group of clauses to an IN operation. */
+
+ /*
+ * Go through the list of groups and convert each, where number of
+ * consts more than 1. trivial groups move to OR-list again
+ */
+
+ foreach(lc_args, groups_list)
+ {
+ List *allexprs;
+ Oid scalar_type;
+ Oid array_type;
+ gentry = (OrClauseGroupEntry *) lfirst(lc_args);
+
+ Assert(list_length(gentry->consts) > 0);
+
+ if (list_length(gentry->consts) == 1)
+ {
+ /*
+ * Only one element in the class. Return rinfo into the BoolExpr
+ * args list unchanged.
+ */
+ list_free(gentry->consts);
+ or_list = lappend(or_list, gentry->expr);
+ continue;
+ }
+
+ /*
+ * Do the transformation.
+ *
+ * First of all, try to select a common type for the array elements.
+ * Note that since the LHS' type is first in the list, it will be
+ * preferred when there is doubt (eg, when all the RHS items are
+ * unknown literals).
+ *
+ * Note: use list_concat here not lcons, to avoid damaging rnonvars.
+ *
+ * As a source of insides, use make_scalar_array_op()
+ */
+ allexprs = list_concat(list_make1(gentry->node), gentry->consts);
+ scalar_type = select_common_type(NULL, allexprs, NULL, NULL);
+
+ if (scalar_type != RECORDOID && OidIsValid(scalar_type))
+ array_type = get_array_type(scalar_type);
+ else
+ array_type = InvalidOid;
+
+ if (array_type != InvalidOid)
+ {
+ /*
+ * OK: coerce all the right-hand non-Var inputs to the common
+ * type and build an ArrayExpr for them.
+ */
+ List *aexprs;
+ ArrayExpr *newa;
+ ScalarArrayOpExpr *saopexpr;
+ ListCell *l;
+
+ aexprs = NIL;
+
+ foreach(l, gentry->consts)
+ {
+ Node *rexpr = (Node *) lfirst(l);
+
+ rexpr = coerce_to_common_type(NULL, rexpr,
+ scalar_type,
+ "IN");
+ aexprs = lappend(aexprs, rexpr);
+ }
+
+ newa = makeNode(ArrayExpr);
+ /* array_collid will be set by parse_collate.c */
+ newa->element_typeid = scalar_type;
+ newa->array_typeid = array_type;
+ newa->multidims = false;
+ newa->elements = aexprs;
+ newa->location = -1;
+
+ saopexpr =
+ (ScalarArrayOpExpr *)
+ make_scalar_array_op(NULL,
+ list_make1(makeString((char *) "=")),
+ true,
+ gentry->node,
+ (Node *) newa,
+ -1);
+ saopexpr->inputcollid = exprInputCollation((Node *)gentry->expr);;
+
+ or_list = lappend(or_list, (void *) saopexpr);
+
+ something_changed = true;
+ change_apply = true;
+ }
+ else
+ {
+ list_free(gentry->consts);
+ or_list = lappend(or_list, gentry->expr);
+ continue;
+ }
+
+ if (!change_apply)
+ {
+ /*
+ * Each group contains only one element - use rinfo as is.
+ */
+ modified_rinfo = lappend(modified_rinfo, rinfo);
+ continue;
+ }
+
+ /*
+ * Make a new version of the restriction. Remember source restriction
+ * can be used in another path (SeqScan, for example).
+ */
+
+ /* One more trick: assemble correct clause */
+ rinfo = make_restrictinfo(root,
+ list_length(or_list) > 1 ? make_orclause(or_list) :
+ (Expr *) linitial(or_list),
+ rinfo->has_clone,
+ rinfo->is_clone,
+ rinfo->is_pushed_down,
+ rinfo->pseudoconstant,
+ rinfo->security_level,
+ rinfo->required_relids,
+ rinfo->outer_relids,
+ rinfo->outer_relids);
+ rinfo->eval_cost=rinfo_base->eval_cost;
+ rinfo->norm_selec=rinfo_base->norm_selec;
+ rinfo->outer_selec=rinfo_base->outer_selec;
+ rinfo->left_bucketsize=rinfo_base->left_bucketsize;
+ rinfo->right_bucketsize=rinfo_base->right_bucketsize;
+ rinfo->left_mcvfreq=rinfo_base->left_mcvfreq;
+ rinfo->right_mcvfreq=rinfo_base->right_mcvfreq;
+ modified_rinfo = lappend(modified_rinfo, rinfo);
+ something_changed = true;
+ }
+ }
+ list_free(or_list);
+ list_free_deep(groups_list);
+
+ }
+ /*
+ * Check if transformation has made. If nothing changed - return
+ * baserestrictinfo as is.
+ */
+ if (something_changed)
+ {
+ return modified_rinfo;
+ }
+
+ list_free(modified_rinfo);
+ return baserestrictinfo;
+}
+
/*
* extract_restriction_or_clauses
* Examine join OR-of-AND clauses to see if any useful restriction OR
@@ -93,6 +383,9 @@ extract_restriction_or_clauses(PlannerInfo *root)
if (rel->reloptkind != RELOPT_BASEREL)
continue;
+ rel->baserestrictinfo = transform_ors(root, rel->baserestrictinfo);
+ rel->joininfo = transform_ors(root, rel->joininfo);
+
/*
* Find potentially interesting OR joinclauses. We can use any
* joinclause that is considered safe to move to this rel by the
@@ -114,7 +407,9 @@ extract_restriction_or_clauses(PlannerInfo *root)
* and insert it into the rel's restrictinfo list if so.
*/
if (orclause)
+ {
consider_new_or_clause(root, rel, orclause, rinfo);
+ }
}
}
}
--
2.34.1
view thread (33+ messages) latest in thread
reply
Reply instructions:
You may reply publicly to this message via plain-text email
using any one of the following methods:
* Reply to all the recipients using the --to and --cc options:
reply via email
To: [email protected]
Cc: [email protected], [email protected], [email protected], [email protected], [email protected], [email protected], [email protected], [email protected], [email protected]
Subject: Re: POC, WIP: OR-clause support for indexes
In-Reply-To: <[email protected]>
* Save the following mbox file, import it into your mail client,
and reply-to-all from there: mbox
This inbox is served by agora; see mirroring instructions
for how to clone and mirror all data and code used for this inbox
