27.02.2015 14:42, Sergey Shchukin пишет:
> 27.02.2015 14:11, Sergey Shchukin пишет:
>> 27.02.2015 11:52, Jim Nasby пишет:
>>> On 2/26/15 12:25 AM, Sergey Shchukin wrote:
>>>> Hi Radovan !
>>>>
>>>> Thank you for the reply. The question is that this table is not a
>>>> subject for a massive updates/deletes.
>>>>
>>>> Is there any additional traces except from perf or pg_top to trace
>>>> what
>>>> replica is doing at the particular moment when we are lagging in
>>>> replay?
>>>> To see locks or spins or sleeps etc..
>>>
>>> Please don't top-post.
>>>
>>> What version is this? What is max_standby_streaming_delay set to?
>>>
>>>> Thank you!
>>>>
>>>> -
>>>>
>>>> Best regards,
>>>> Sergey Shchukin
>>>>
>>>> 24.02.2015 19:05, Radovan Jablonovsky пишет:
>>>>> This looks like more issue for pgsql-general mailing list.
>>>>>
>>>>> Possible solutions
>>>>> 1) Set specific autovacuum parameters on the big table. The
>>>>> autovacuum
>>>>> could vacuum table on multiple runs based on the thresholds and cost
>>>>> settings
>>>>> Example of setting specific values of autovacuum and analyze for
>>>>> table. It should be adjusted for your system, work load, table
>>>>> usage, etc:
>>>>> alter table "my_schema"."my_big_table" set (fillfactor = 80,
>>>>> autovacuum_enabled = true, autovacuum_vacuum_threshold = 200,
>>>>> autovacuum_analyze_threshold = 400, autovacuum_vacuum_scale_factor =
>>>>> 0.05, autovacuum_analyze_scale_factor = 0.005,
>>>>> autovacuum_vacuum_cost_delay = 10, autovacuum_vacuum_cost_limit =
>>>>> 5000);
>>>>>
>>>>> 2) Could be to partition the large table on master site and vacuum it
>>>>> partition by partition.
>>>>>
>>>>> On Tue, Feb 24, 2015 at 6:42 AM, Sergey Shchukin
>>>>> <shchukin.s.a@gmail.com <mailto:shchukin.s.a@gmail.com>> wrote:
>>>>>
>>>>> Hi all!
>>>>>
>>>>> May someone help me with the issue in the apply process on the
>>>>> replica. We have a stream replication and after vacuum stops
>>>>> working with a big table we get a "freeze" in applying data on
>>>>> the
>>>>> replica database. It looks like this:
>>>>>
>>>>> Tue Feb 24 15:04:51 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607136410456 SLAVE:79607136410456
>>>>> Replay:79607136339456 :: REPLAY 69 KBytes (00:00:00.294485
>>>>> seconds)
>>>>> Tue Feb 24 15:04:52 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607137892672 SLAVE:79607137715392
>>>>> Replay:79607137715392 :: REPLAY 173 KBytes (00:00:00.142605
>>>>> seconds)
>>>>> Tue Feb 24 15:04:53 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607139327776 SLAVE:79607139241816
>>>>> Replay:79607139241816 :: REPLAY 84 KBytes (00:00:00.05223
>>>>> seconds)
>>>>> Tue Feb 24 15:04:54 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607141134776 SLAVE:79607141073344
>>>>> Replay:79607141080032 :: REPLAY 54 KBytes (00:00:00.010603
>>>>> seconds)
>>>>> Tue Feb 24 15:04:55 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607143085176 SLAVE:79607143026440
>>>>> Replay:79607143038040 :: REPLAY 46 KBytes (00:00:00.009506
>>>>> seconds)
>>>>> Tue Feb 24 15:04:56 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607145111280 SLAVE:79607145021384
>>>>> Replay:79607145025664 :: REPLAY 83 KBytes (00:00:00.006795
>>>>> seconds)
>>>>> Tue Feb 24 15:04:57 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607146564424 SLAVE:79607146478336
>>>>> Replay:79607146501264 :: REPLAY 61 KBytes (00:00:00.00701
>>>>> seconds)
>>>>> Tue Feb 24 15:04:58 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607148160680 SLAVE:79607148108352
>>>>> Replay:79607147369320 :: REPLAY 773 KBytes (00:00:00.449702
>>>>> seconds)
>>>>> Tue Feb 24 15:04:59 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607150220688 SLAVE:79607150159632
>>>>> Replay:79607150171312 :: REPLAY 48 KBytes (00:00:00.006594
>>>>> seconds)
>>>>> Tue Feb 24 15:05:00 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607152365360 SLAVE:79607152262696
>>>>> Replay:79607152285240 :: REPLAY 78 KBytes (00:00:00.007042
>>>>> seconds)
>>>>> Tue Feb 24 15:05:02 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607154049848 SLAVE:79607154012624
>>>>> Replay:79607153446800 :: REPLAY 589 KBytes (00:00:00.513637
>>>>> seconds)
>>>>> Tue Feb 24 15:05:03 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607155229992 SLAVE:79607155187864
>>>>> Replay:79607155188312 :: REPLAY 41 KBytes (00:00:00.004773
>>>>> seconds)
>>>>> Tue Feb 24 15:05:04 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607156833968 SLAVE:79607156764128
>>>>> Replay:79607156785488 :: REPLAY 47 KBytes (00:00:00.006846
>>>>> seconds)
>>>>> Tue Feb 24 15:05:05 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607158419848 SLAVE:79607158344856
>>>>> Replay:79607158396352 :: REPLAY 23 KBytes (00:00:00.005228
>>>>> seconds)
>>>>> Tue Feb 24 15:05:06 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607160004776 SLAVE:79607159962400
>>>>> Replay:79607159988888 :: REPLAY 16 KBytes (00:00:00.003162
>>>>> seconds)
>>>>> *--here apply process just stops*
>>>>>
>>>>> Tue Feb 24 15:05:07 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607161592048 SLAVE:79607161550576
>>>>> Replay:79607160986064 :: REPLAY 592 KBytes (00:00:00.398376
>>>>> seconds)
>>>>> Tue Feb 24 15:05:08 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607163272840 SLAVE:79607163231384
>>>>> Replay:79607160986064 :: REPLAY 2233 KBytes (00:00:01.446759
>>>>> seconds)
>>>>> Tue Feb 24 15:05:09 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607164958632 SLAVE:79607164904448
>>>>> Replay:79607160986064 :: REPLAY 3879 KBytes (00:00:02.497181
>>>>> seconds)
>>>>> Tue Feb 24 15:05:10 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607166819560 SLAVE:79607166777712
>>>>> Replay:79607160986064 :: REPLAY 5697 KBytes (00:00:03.543107
>>>>> seconds)
>>>>> Tue Feb 24 15:05:11 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607168595280 SLAVE:79607168566536
>>>>> Replay:79607160986064 :: REPLAY 7431 KBytes (00:00:04.589736
>>>>> seconds)
>>>>> Tue Feb 24 15:05:12 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607170372064 SLAVE:79607170252480
>>>>> Replay:79607160986064 :: REPLAY 9166 KBytes (00:00:05.635918
>>>>> seconds)
>>>>> Tue Feb 24 15:05:13 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607171829480 SLAVE:79607171714144
>>>>> Replay:79607160986064 :: REPLAY 10589 KBytes (00:00:06.688115
>>>>> seconds)
>>>>> Tue Feb 24 15:05:14 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607173152488 SLAVE:79607173152488
>>>>> Replay:79607160986064 :: REPLAY 11881 KBytes (00:00:07.736993
>>>>> seconds)
>>>>> Tue Feb 24 15:05:15 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607174149968 SLAVE:79607174149968
>>>>> Replay:79607160986064 :: REPLAY 12855 KBytes (00:00:08.78538
>>>>> seconds)
>>>>> Tue Feb 24 15:05:16 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607176448344 SLAVE:79607176252088
>>>>> Replay:79607160986064 :: REPLAY 15100 KBytes (00:00:09.835184
>>>>> seconds)
>>>>> Tue Feb 24 15:05:17 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607177632216 SLAVE:79607177608224
>>>>> Replay:79607160986064 :: REPLAY 16256 KBytes (00:00:10.926493
>>>>> seconds)
>>>>> Tue Feb 24 15:05:18 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607179432960 SLAVE:79607179378096
>>>>> Replay:79607160986064 :: REPLAY 18015 KBytes (00:00:11.97989
>>>>> seconds)
>>>>> Tue Feb 24 15:05:19 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607180893384 SLAVE:79607180874256
>>>>> Replay:79607160986064 :: REPLAY 19441 KBytes (00:00:13.028921
>>>>> seconds)
>>>>> Tue Feb 24 15:05:20 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607182596224 SLAVE:79607182552272
>>>>> Replay:79607160986064 :: REPLAY 21104 KBytes (00:00:14.079497
>>>>> seconds)
>>>>> Tue Feb 24 15:05:21 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607183935312 SLAVE:79607183902592
>>>>> Replay:79607160986064 :: REPLAY 22411 KBytes (00:00:15.127679
>>>>> seconds)
>>>>> Tue Feb 24 15:05:23 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607185165880 SLAVE:79607185094032
>>>>> Replay:79607160986064 :: REPLAY 23613 KBytes (00:00:16.175132
>>>>> seconds)
>>>>> Tue Feb 24 15:05:24 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607187196920 SLAVE:79607187169368
>>>>> Replay:79607160986064 :: REPLAY 25596 KBytes (00:00:17.221981
>>>>> seconds)
>>>>> Tue Feb 24 15:05:25 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607188943856 SLAVE:79607188885952
>>>>> Replay:79607160986064 :: REPLAY 27302 KBytes (00:00:18.274362
>>>>> seconds)
>>>>> Tue Feb 24 15:05:26 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607190489400 SLAVE:79607190443160
>>>>> Replay:79607160986064 :: REPLAY 28812 KBytes (00:00:19.319987
>>>>> seconds)
>>>>> Tue Feb 24 15:05:27 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607192089312 SLAVE:79607192054048
>>>>> Replay:79607160986064 :: REPLAY 30374 KBytes (00:00:20.372305
>>>>> seconds)
>>>>> Tue Feb 24 15:05:28 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607193736800 SLAVE:79607193690056
>>>>> Replay:79607160986064 :: REPLAY 31983 KBytes (00:00:21.421359
>>>>> seconds)
>>>>> Tue Feb 24 15:05:29 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607195968648 SLAVE:79607195901296
>>>>> Replay:79607160986064 :: REPLAY 34163 KBytes (00:00:22.471334
>>>>> seconds)
>>>>> Tue Feb 24 15:05:30 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607197808840 SLAVE:79607197737720
>>>>> Replay:79607160986064 :: REPLAY 35960 KBytes (00:00:23.52269
>>>>> seconds)
>>>>> Tue Feb 24 15:05:31 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607199571144 SLAVE:79607199495976
>>>>> Replay:79607160986064 :: REPLAY 37681 KBytes (00:00:24.577615
>>>>> seconds)
>>>>> Tue Feb 24 15:05:32 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607201206104 SLAVE:79607201100392
>>>>> Replay:79607160986064 :: REPLAY 39277 KBytes (00:00:25.624604
>>>>> seconds)
>>>>> Tue Feb 24 15:05:33 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607203174208 SLAVE:79607203111136
>>>>> Replay:79607160986064 :: REPLAY 41199 KBytes (00:00:26.67059
>>>>> seconds)
>>>>> Tue Feb 24 15:05:34 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607204792888 SLAVE:79607204741600
>>>>> Replay:79607160986064 :: REPLAY 42780 KBytes (00:00:27.719088
>>>>> seconds)
>>>>> Tue Feb 24 15:05:35 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607206453216 SLAVE:79607206409032
>>>>> Replay:79607160986064 :: REPLAY 44401 KBytes (00:00:28.766647
>>>>> seconds)
>>>>> Tue Feb 24 15:05:36 MSK 2015 Stream:
>>>>> MASTER-masterdb:79607208225344 SLAVE:79607208142176
>>>>> Replay:79607160986064 :: REPLAY 46132 KBytes (00:00:29.811434
>>>>> seconds)
>>>>>
>>>>>
>>>>> perf shows the following functions on the top
>>>>> + 22.50% postmaster [kernel.kallsyms] [k]
>>>>> copy_user_generic_string
>>>>> + 8.48% postmaster postgres [.]
>>>>> hash_search_with_hash_value
>>>>>
>>>>>
>>>>> after 10 minutes or so the apply process continue to work
>>>>>
>>>>> Tue Feb 24 15:13:25 MSK 2015 Stream:
>>>>> MASTER-masterdb:79608758742560 SLAVE:79608758718008
>>>>> Replay:79607160986064 :: REPLAY 1560309 KBytes (00:08:19.009653
>>>>> seconds)
>>>>> Tue Feb 24 15:13:26 MSK 2015 Stream:
>>>>> MASTER-masterdb:79608759203608 SLAVE:79608759189680
>>>>> Replay:79607160986064 :: REPLAY 1560759 KBytes (00:08:20.057877
>>>>> seconds)
>>>>> Tue Feb 24 15:13:27 MSK 2015 Stream:
>>>>> MASTER-masterdb:79608759639680 SLAVE:79608759633224
>>>>> Replay:79607160986064 :: REPLAY 1561185 KBytes (00:08:21.104723
>>>>> seconds)
>>>>> Tue Feb 24 15:13:28 MSK 2015 Stream:
>>>>> MASTER-masterdb:79608760271200 SLAVE:79608760264128
>>>>> Replay:79607160986064 :: REPLAY 1561802 KBytes (00:08:22.148546
>>>>> seconds)
>>>>> Tue Feb 24 15:13:30 MSK 2015 Stream:
>>>>> MASTER-masterdb:79608760622920 SLAVE:79608760616656
>>>>> Replay:79607160986064 :: REPLAY 1562145 KBytes (00:08:23.196645
>>>>> seconds)
>>>>> Tue Feb 24 15:13:31 MSK 2015 Stream:
>>>>> MASTER-masterdb:79608761122040 SLAVE:79608761084584
>>>>> Replay:79607160986064 :: REPLAY 1562633 KBytes (00:08:24.240653
>>>>> seconds)
>>>>> Tue Feb 24 15:13:32 MSK 2015 Stream:
>>>>> MASTER-masterdb:79608761434200 SLAVE:79608761426080
>>>>> Replay:79607160986064 :: REPLAY 1562938 KBytes (00:08:25.289429
>>>>> seconds)
>>>>> Tue Feb 24 15:13:33 MSK 2015 Stream:
>>>>> MASTER-masterdb:79608761931008 SLAVE:79608761904808
>>>>> Replay:79607160986064 :: REPLAY 1563423 KBytes (00:08:26.338498
>>>>> seconds)
>>>>> *--apply starts*
>>>>> Tue Feb 24 15:13:34 MSK 2015 Stream:
>>>>> MASTER-masterdb:79608762360568 SLAVE:79608762325712
>>>>> Replay:79607163554680 :: REPLAY 1561334 KBytes (00:08:25.702423
>>>>> seconds)
>>>>> Tue Feb 24 15:13:35 MSK 2015 Stream:
>>>>> MASTER-masterdb:79608762891224 SLAVE:79608762885928
>>>>> Replay:79607166466488 :: REPLAY 1559008 KBytes (00:08:25.011046
>>>>> seconds)
>>>>> Tue Feb 24 15:13:36 MSK 2015 Stream:
>>>>> MASTER-masterdb:79608763681920 SLAVE:79608763667256
>>>>> Replay:79607167054056 :: REPLAY 1559207 KBytes (00:08:25.827531
>>>>> seconds)
>>>>> Tue Feb 24 15:13:37 MSK 2015 Stream:
>>>>> MASTER-masterdb:79608764207088 SLAVE:79608764197744
>>>>> Replay:79607175610296 :: REPLAY 1551364 KBytes (00:08:21.182428
>>>>> seconds)
>>>>> Tue Feb 24 15:13:38 MSK 2015 Stream:
>>>>> MASTER-masterdb:79608764857920 SLAVE:79608764832432
>>>>> Replay:79607183599632 :: REPLAY 1544197 KBytes (00:08:16.742467
>>>>> seconds)
>>>>> Tue Feb 24 15:13:39 MSK 2015 Stream:
>>>>> MASTER-masterdb:79608765323360 SLAVE:79608765281408
>>>>> Replay:79607186862176 :: REPLAY 1541466 KBytes (00:08:15.569874
>>>>> seconds)
>>>>> Tue Feb 24 15:13:40 MSK 2015 Stream:
>>>>> MASTER-masterdb:79608765848240 SLAVE:79608765824520
>>>>> Replay:79607186862176 :: REPLAY 1541978 KBytes (00:08:16.620932
>>>>> seconds)
>>>>>
>>>>>
>>>>> All this is a result of completion of "vacuum verbose analyze
>>>>> master_table" on the master site
>>>>>
>>>>> Any help would be appreciated
>>>>>
>>>>> --
>>>>> Best regards,
>>>>> Sergey Shchukin
>>>>>
>>>>>
>>>>>
>>>>>
>>>>> --
>>>>>
>>>>> *Radovan Jablonovsky* | SaaS DBA | Phone 1-403-262-6519 (ext. 7256) |
>>>>> Fax 1-403-233-8046
>>>>>
>>>>>
>>>>>
>>>>
>>>
>>>
>> Hi Jim,
>>
>> The version is _PostgreSQL 9.3.6_ on x86_64 RHEL 6.6
>>
>> show max_standby_streaming_delay;
>> max_standby_streaming_delay
>> -----------------------------
>> 30s
>>
>
> Again, after the vacuum finished on my table I got locks in apply
> process on replica - *see lag_byte *
>
> masterdb01d/masterdb M # vacuum verbose rtable.rtable_uidl;
> INFO: 00000: vacuuming "rtable.rtable_uidl"
> LOCATION: lazy_scan_heap, vacuumlazy.c:438
> INFO: 00000: scanned index "pk_rtable_uidl" to remove 6 row versions
> DETAIL: CPU 240.80s/183.19u sec elapsed 703.85 sec.
> LOCATION: lazy_vacuum_index, vacuumlazy.c:1335
> INFO: 00000: "rtable_uidl": removed 6 row versions in 6 pages
> DETAIL: CPU 0.00s/0.00u sec elapsed 0.00 sec.
> LOCATION: lazy_vacuum_heap, vacuumlazy.c:1169
> INFO: 00000: index "pk_rtable_uidl" now contains 3763411079 row
> versions in 32755911 pages
> DETAIL: 0 index row versions were removed.
> 0 index pages have been deleted, 0 are currently reusable.
> CPU 0.00s/0.00u sec elapsed 0.00 sec.
> LOCATION: lazy_cleanup_index, vacuumlazy.c:1387
> INFO: 00000: "rtable_uidl": found 6 removable, 1426488 nonremovable
> row versions in 12734 out of 26047416 pages
> DETAIL: 0 dead row versions cannot be removed yet.
> There were 3 unused item pointers.
> 0 pages are entirely empty.
> CPU 241.37s/184.04u sec elapsed 705.45 sec.
> LOCATION: lazy_scan_heap, vacuumlazy.c:1101
> VACUUM
> Time: 705685.954 ms
>
>
>
> masterdb01d/postgres M # \g
> -[ RECORD 1 ]----+------------------------------
> procpid | 21487
> usesysid | 16413
> usename | repl
> application_name | walreceiver
> client_addr |
> client_hostname | masterdb01e
> client_port | 35261
> backend_start | 2015-02-27 13:02:27.203938+03
> state | streaming
> sent_location | 494B/CB30B530
> write_location | 494B/CB30B530
> flush_location | 494B/CB30B530
> replay_location | *494B/A02B9070 <<< stopped here!1*
> sync_priority | 0
> sync_state | async
> total_lag_byte | 721757376
> total_lag_nice | 688 MB
> lag_byte | 721757376
> lag_byte_nice | 688 MB
>
> --
> Best regards,
> Sergey Shchukin
Hi All!
The issue is repeating still...
Some updates:
The size of the rtable_uidl is about 3 773 185 761 rows, quite a big
Before vacuum
schema_size | schema_size_with_indexes
-------------+--------------------------
199 GB | 450 GB
rtabledb01e/rtabledb R # select * from pg_stat_all_tables where
schemaname = 'rtable' and relname ='rtable_uidl';
-[ RECORD 1 ]-----+-----------
relid | 16511
schemaname | rtable
relname | rtable_uidl
seq_scan | 2
seq_tup_read | 7546016953
idx_scan | 3008619
idx_tup_fetch | 44139478
n_tup_ins | 0
n_tup_upd | 0
n_tup_del | 0
n_tup_hot_upd | 0
n_live_tup | 0
n_dead_tup | 0
last_vacuum | [null]
last_autovacuum | [null]
last_analyze | [null]
last_autoanalyze | [null]
vacuum_count | 0
autovacuum_count | 0
analyze_count | 0
autoanalyze_count | 0
Server spec: 2 Xeon E5-2660, 128GB RAM, disk subsystem
/dev/md2 /var/lib/pgsql/9.3/data
/dev/md3 /var/lib/pgsql/9.3/data/pg_xlog
raids are raid10 on top of 8x300GB intel SSD disks. Both raids use the
same disks which are split into two parts (ex. md2:sdb1.., md3:sdb2...).

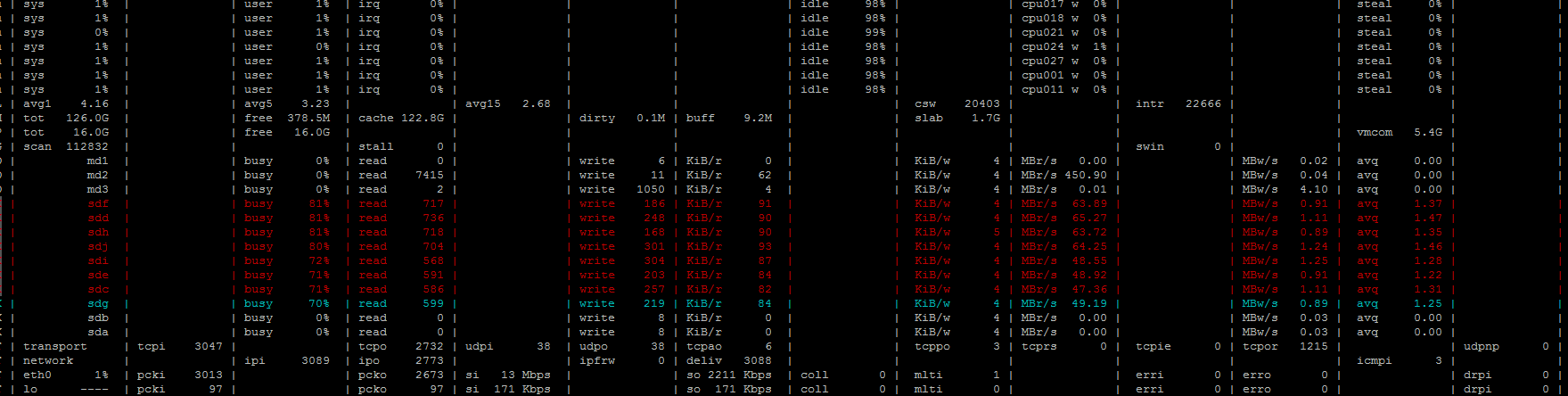

It should be mentioned that we see significant disc activity on replica
DBS during the lockup of apply process (see disks_load.png)
OS: RHEL 6.6
Non default parameters - please check the attachment
After the vacuum
rtabledb01d/rtabledb M # vacuum verbose rtable.rtable_uidl;
INFO: 00000: vacuuming "rtable.rtable_uidl"
LOCATION: lazy_scan_heap, vacuumlazy.c:438
INFO: 00000: scanned index "pk_rtable_uidl" to remove 3 row versions
DETAIL: CPU 251.85s/165.91u sec elapsed 743.44 sec.
LOCATION: lazy_vacuum_index, vacuumlazy.c:1335
INFO: 00000: "rtable_uidl": removed 3 row versions in 3 pages
DETAIL: CPU 0.00s/0.00u sec elapsed 0.00 sec.
LOCATION: lazy_vacuum_heap, vacuumlazy.c:1169
INFO: 00000: index "pk_rtable_uidl" now contains 3773254753 row
versions in 32846328 pages
DETAIL: 0 index row versions were removed.
0 index pages have been deleted, 0 are currently reusable.
CPU 0.00s/0.00u sec elapsed 0.00 sec.
LOCATION: lazy_cleanup_index, vacuumlazy.c:1387
INFO: 00000: "rtable_uidl": found 3 removable, 2589545 nonremovable row
versions in 20398 out of 26102225 pages
DETAIL: 0 dead row versions cannot be removed yet.
There were 0 unused item pointers.
0 pages are entirely empty.
CPU 253.20s/167.60u sec elapsed 749.44 sec.
LOCATION: lazy_scan_heap, vacuumlazy.c:1101
VACUUM
Time: 750141.401 ms
date
------------
2015-03-03
(1 row)
timetz
--------------------
16:35:50.245227+03
(1 row)
Replay stopped on replicas
Tue Mar 3 16:35:12 MSK 2015 Stream: MASTER-rtabledb01d:81829147840528
SLAVE:81829147765224 Replay:*81827156622184 *:: REPLAY 1944550 KBytes
(00:07:49.816045 seconds)
Tue Mar 3 16:35:17 MSK 2015 Stream: MASTER-rtabledb01d:81829156031576
SLAVE:81829155989056 Replay:*81827156622184 *:: REPLAY 1952549 KBytes
(00:07:54.87067 seconds)
Tue Mar 3 16:35:22 MSK 2015 Stream: MASTER-rtabledb01d:81829165013208
SLAVE:81829164949312 Replay:*81827156622184 *:: REPLAY 1961320 KBytes
(00:07:59.927685 seconds)
Tue Mar 3 16:35:27 MSK 2015 Stream: MASTER-rtabledb01d:81829172941288
SLAVE:81829172887000 Replay:*81827156622184 *:: REPLAY 1969062 KBytes
(00:08:04.977663 seconds)
Tue Mar 3 16:35:32 MSK 2015 Stream: MASTER-rtabledb01d:81829181088512
SLAVE:81829181063304 Replay:*81827156622184 *:: REPLAY 1977018 KBytes
(00:08:10.033499 seconds)
Tue Mar 3 16:35:37 MSK 2015 Stream: MASTER-rtabledb01d:81829191442216
SLAVE:81829191364192 Replay:*81827156622184 *:: REPLAY 1987129 KBytes
(00:08:15.085862 seconds)
Tue Mar 3 16:35:42 MSK 2015 Stream: MASTER-rtabledb01d:81829204580736
SLAVE:81829204444136 Replay:*81827156622184 *:: REPLAY 1999960 KBytes
(00:08:20.13815 seconds)
Tue Mar 3 16:35:47 MSK 2015 Stream: MASTER-rtabledb01d:81829218243240
SLAVE:81829218115272 Replay:*81827156622184 *:: REPLAY 2013302 KBytes
(00:08:25.190515 seconds)
After the vacuum
schema_size | schema_size_with_indexes
-------------+--------------------------
199 GB | 450 GB
rtabledb01d/rtabledb M # select * from pg_stat_all_tables where
schemaname = 'rtable' and relname ='rtable_uidl';
-[ RECORD 1 ]-----+------------------------------
relid | 16511
schemaname | rtable
relname | rtable_uidl
seq_scan | 1
seq_tup_read | 14223712
idx_scan | 1370133
idx_tup_fetch | 28596708
n_tup_ins | 12473820
n_tup_upd | 0
n_tup_del | 0
n_tup_hot_upd | 0
n_live_tup | 3771361529
n_dead_tup | 0
last_vacuum | 2015-03-03 16:27:23.231513+03
last_autovacuum | 2015-03-03 07:11:50.891016+03
last_analyze | 2015-02-26 19:50:28.097629+03
last_autoanalyze | 2015-03-03 14:09:14.463953+03
vacuum_count | 4
autovacuum_count | 5
analyze_count | 1
autoanalyze_count | 3
Thanks in advance!
Best regards,
Sergey Shchukin
--
Sent via pgsql-admin mailing list (pgsql-admin@postgresql.org)
To make changes to your subscription:
http://www.postgresql.org/mailpref/pgsql-admin
Attachments:
view image
pg_non_default_params.txt (text/plain, 2.8K) download
--------------------------------+----------------------------------------------------------------------------------------------------------------------------------------------------
archive_command | rsync -a --contimeout=1 --timeout=5 --password-file=/etc/barman.passwd %p rsync://barman@pg-backup:/barman/rtabledb01/incoming/%f
archive_mode | on
autovacuum_analyze_scale_factor | 0.001
autovacuum_max_workers | 10
autovacuum_naptime | 15
autovacuum_vacuum_cost_delay | 5
autovacuum_vacuum_cost_limit | 2000
autovacuum_vacuum_scale_factor | 1e-05
autovacuum_vacuum_threshold | 200
bgwriter_delay | 50
bgwriter_lru_maxpages | 250
checkpoint_completion_target | 0.8
checkpoint_segments | 384
checkpoint_timeout | 600
checkpoint_warning | 420
commit_siblings | 100
DateStyle | ISO, DMY
default_text_search_config | pg_catalog.english
effective_cache_size | 13107200
hot_standby | on
hot_standby_feedback | on
lc_collate | en_US.UTF-8
lc_ctype | en_US.UTF-8
lc_messages | en_US.UTF-8
lc_monetary | en_US.UTF-8
lc_numeric | en_US.UTF-8
lc_time | en_US.UTF-8
listen_addresses | *
log_autovacuum_min_duration | 0
log_checkpoints | on
log_destination | csvlog
log_file_mode | 0600
log_hostname | on
log_line_prefix | < %m >
log_lock_waits | on
log_rotation_size | 0
log_timezone | Europe/Moscow
log_truncate_on_rotation | on
logging_collector | on
maintenance_work_mem | 2097152
max_connections | 4000
max_prepared_transactions | 100
max_stack_depth | 2048
max_wal_senders | 10
server_encoding | UTF8
shared_buffers | 524288
shared_preload_libraries | pg_stat_statements,pg_statsinfo
TimeZone | Europe/Moscow
track_functions | all
track_io_timing | on
transaction_isolation | read committed
unix_socket_permissions | 0777
update_process_title | off
vacuum_defer_cleanup_age | 200000
wal_buffers | 8192
wal_keep_segments | 64
wal_level | hot_standby
wal_receiver_status_interval | 1
wal_sender_timeout | 3000
work_mem | 16384
view thread (11+ messages) latest in thread
Message-ID: <54F5BD29.6050705@gmail.com>
Permalink: ../54F5BD29.6050705@gmail.com/
Also on: postgresql.org/message-id/54F5BD29.6050705@gmail.com
copy link · copy postgr.es
reply Reply instructions:
You may reply publicly to this message via plain-text email
using any one of the following methods:
* Reply to all the recipients using the --to and --cc options:
reply via email
To: pgsql-performance@postgresql.org
Cc: shchukin.s.a@gmail.com, Jim.Nasby@BlueTreble.com, radovan.jablonovsky@replicon.com, pgsql-general@postgresql.org, pgsql-admin@postgresql.org
Subject: Re: [GENERAL] Re: [pgadmin-support] Issue with a hanging apply process on the replica db after vacuum works on primary
In-Reply-To: <54F5BD29.6050705@gmail.com>
* Save the following mbox file, import it into your mail client,
and reply-to-all from there: mbox
This inbox is served by DDX for PostgreSQL; see mirroring instructions
for how to clone and mirror all data and code used for this inbox
